Summary of Contents for KLING & FREITAG Cradle

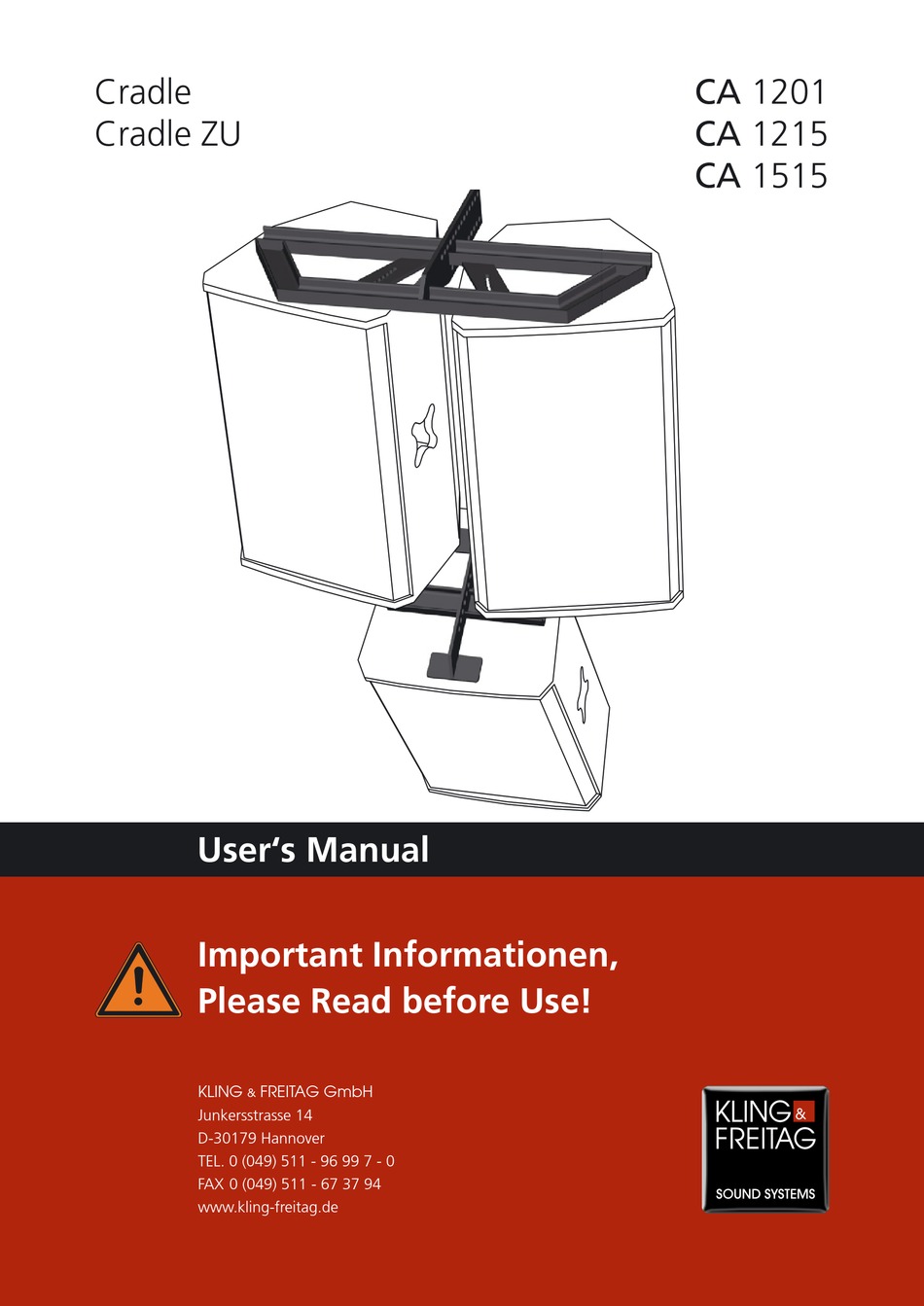

- Page 1 CA 1201 Cradle CA 1215 Cradle ZU CA 1515 User‘s Manual Important Informationen, Please Read before Use! ������� KLING FREITAG GmbH & Junkersstrasse 14 D-30179 Hannover TEL. 0 (049) 511 - 96 99 7 - 0 FAX 0 (049) 511 - 67 37 94...
-
Page 2: Symbols In User's Manual
��������� 2. Information about this User‘s Manual User‘s Manual Cradle / Cradle ZU for CA 1201, CA 1215 and CA 1515 08/2002 © By Kling & Freitag GmbH, André Schweimler January 2002; all rights reserved All specifications in this manual are based on information available at the time of publish- ing for the features and safety guidelines of the described products. -
Page 3: Table Of Contents
CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 User‘s Manual Content 1. Symbols in User‘s Manual 2. Information about this User‘s Manual 3. Shipped Components and Definitions 3.1 Cradle 3.2 Cradle ZU 4. Mounting and Usage 5. -
Page 4: Shipped Components And Definitions
User‘s Manual CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 3. Shipped Components and Definitions 3.1 Cradle Inner suspension points on hole radius. Fixing holes for suspension (Selection of drill hole depends on desired of cradle / cluster (Selection... -
Page 5: Mounting And Usage
CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 User‘s Manual 4. Mounting and Usage Ancra Flying Point Threaded stud (3-part) on speaker enclosure Tooth lock nut (part 3) ������� Threaded bolt (part 1) Washer (part 2) Place the threaded bolt (part 1) of the flying stud in the flying point. -
Page 6: Safety Instruction
The Cradle must be assembled so that the shorter of the parallel sides of the trapeze frame faces the front of the speaker. See Chapter 3. Cradle ZU must be assembled so the tapered off side of the flying rail faces the front of the speaker. See Chapter 3. -
Page 7: Selecting The Drill Hole On The Radius For Different Angles
CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 User‘s Manual 6.1.1 Selecting the Drill Hole on the Radius for different Angles In Chapter 6.1, we recommend which horizontal adjustment angle should be select- ed for each of the speaker types. Based on the following graphs, you can see which drill hole needs to be selected in the hole radius in order to achieve this adjustment angle 1. -
Page 8: Suspension With Different Tilt Angles
In this case, the desired tilt angle must be adjusted by selecting an- other drill hole in the flying rail. To ensure that the cradle does not fall down, when mounting, be sure to secure it from a second independent source. - Page 9 CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 User‘s Manual Cradle for CA 1215 vertical horizontal angle° angle 30° 34.5 29.5 26.5 11.5 -2.5 35° 34.5 29.5 24.5 12.5 -1.5 40° 32.5 27.5 19.5 16.5 -0.5 45°...
- Page 10 User‘s Manual CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 Cradle ZU for CA 1201 vertical angle 17.5 14.5 11.5 Cradle ZU for CA 1215 vertical angle 26.5 23.5 13.5 10.5 -2.5 -12.5 Cradle ZU for CA 1515...
-
Page 11: Basic Dimensions, Weight And Load Capability
CRADLE / CRADLE ZU for CA 1201, CA 1215 and CA 1515 User‘s Manual 7. Basic Dimensions, Weight and Load Capability Cradle CA 1201 / CA 1215 ����� ��� ����� ����� ���� ���� Weight: 7.8 kg Save working load: 72 kg...
