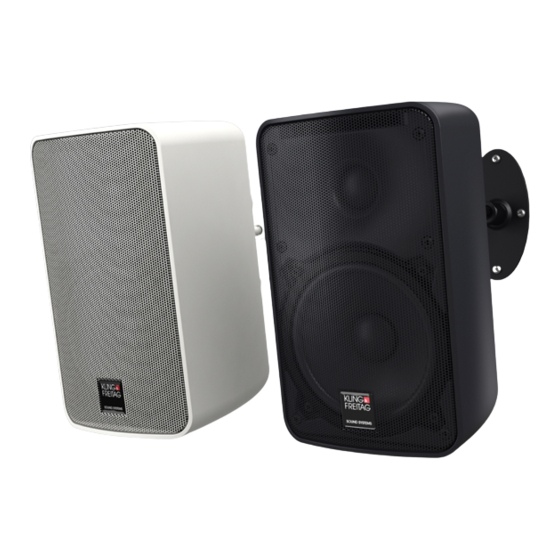

KLING & FREITAG Sona 5 User Manual

K&f sona 5 loudspeaker system user's manual
Hide thumbs Also See for Sona 5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

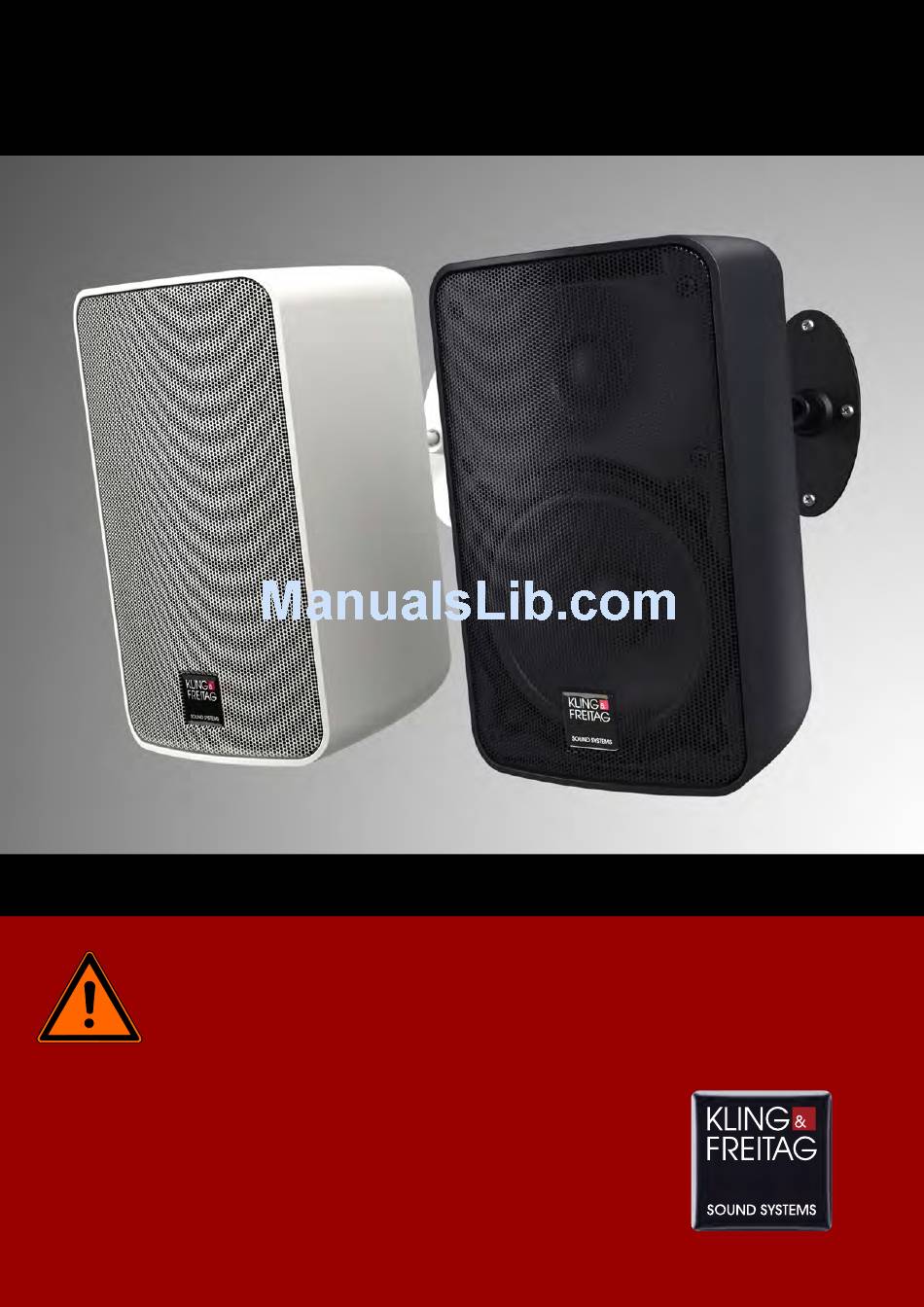

K&F￿SONA￿5
Version 3.1
User's￿Manual
Released: 05.04.2012
Important￿Information,
Please￿Read￿Before￿Use!
KLING & FREITAG GmbH
Junkersstraße 14
D-30179 Hannover
PHONE +49 (0) 511 96 99 70
FAX
+49 (0) 511 67 37 94
www.kling-freitag.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sona 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KLING & FREITAG Sona 5

Summary of Contents for KLING & FREITAG Sona 5

  • Page 1 K&F￿SONA￿5 Version 3.1 User's￿Manual Released: 05.04.2012 Important￿Information, Please￿Read￿Before￿Use! KLING & FREITAG GmbH Junkersstraße 14 D-30179 Hannover PHONE +49 (0) 511 96 99 70 +49 (0) 511 67 37 94 www.kling-freitag.de...

  • Page 3: Table Of Contents

    User's manual K&F SONA 5 Table of contents Introduction Symbols￿in￿User's￿Manual Information￿about￿this￿User's￿Manual Product￿Description Scope￿of￿Delivery Overview￿of￿Components Accessories Required￿ Tools Safety￿Instructions Mounting￿the￿Speakers￿/￿Wall￿and￿Ceiling￿Installation Notes￿for￿Mounting￿the￿Speakers Preventing￿hearing￿damage Protecting￿the￿Speakers￿/￿Operating￿Safety Wall￿and￿Ceiling￿Installation Stand￿Installation Proper￿Alignment￿of￿the￿Loudspeakers Operation￿with￿or￿without￿a￿controller Wiring Terminal￿assignment Wiring￿Diagrams Wiring￿instructions Notes￿for￿the￿Version￿with￿'100￿Volt'￿Option Operating￿the￿Speakers Technical￿Specifications Measuring￿Diagrams Dimensions 13.1 with￿Mounting￿Arm￿M￿(56mm)￿–￿(included￿in￿delivery) 13.2 with￿Mounting￿Arm￿S￿(32mm)￿–￿(Accessory) 13.3 with￿Mounting￿Arm￿L￿(109mm)￿–￿(Accessory)
  • Page 4 User's manual K&F SONA 5 KLING & FREITAG GMBH © 2012 Revision 3.1 Page 4 of 20...

  • Page 5: User's Manual K&F Sona

    Thank you for your decision to buy a KLING & FREITAG product. To guarantee a trouble-free operat- ing of the equipment and to allow your KLING & FREITAG SONA 5 system to achieve its full potential please read the operating instructions carefully before use. With the purchase of a SONA 5, you have acquired a large sound system with the highest possible quality and performance capabilities.
  • Page 6 User's manual K&F SONA 5 Product￿Description Scope￿of￿Delivery • Loudspeaker with integrated ball joint Mounting Arm M (56mm) for wall, ceiling or stand mountings • User's Manual • Loudspeakers with option 'Phoenix connector' or '100 Volt' are supplied including the corre- sponding 4-pole Phoenix plug.
  • Page 7 User's manual K&F SONA 5 Required￿Tools • 2.5 mm hexagon socket wrench • 19 mm jaw spanner • Mounting accessories for installation on walls or ceilings Safety￿Instructions Mounting￿the￿Speakers￿/￿Wall￿and￿Ceiling￿Installation The speakers may only be mounted by qualified event technicians or personnel which are instructed by them, adequately.
  • Page 8 User's manual K&F SONA 5 Notes￿for￿Mounting￿the￿Speakers Mount the speakers securely. To avoid injury or damage, always be sure to mount the speakers se- curely so that they do not fall. Please note that speakers can move as a result of vibrations. To prevent them from falling from their mounted position, they must be secured properly.
  • Page 9 24dB/oct. at 60Hz has to be inserted into the signal chain. Operations￿with￿CD￿44￿Controller: • For optimal performance and operating safety of the SONA 5 speakers we recommend using the system controller K&F CD 44. • When operating the loudspeaker with amplifers without clipping limiter and nominal amplifier power less than 100W@16Ω...
  • Page 10 User's manual K&F SONA 5 Wall￿and￿Ceiling￿Installation Screw the mounting plate (A) through all 4 mounting holes onto the wall or ceiling. Choose fasteners that are suitable for the wall or ceiling material. After installation, the mounting plate in- cl. speaker must be capable of carrying the 6-fold of its own weight.
  • Page 11 User's manual K&F SONA 5 Screw the retainer nut (A) onto thread reducer (B) using a 19 mm jaw spanner. While doing this, align the Mounting Arm. Now align the loudspeaker arm as desired, and then retighten the hexagon socket screws that you previously loosened.
  • Page 12 User's manual K&F SONA 5 Stand￿Installation The retainer nut of the Mounting Arm is equipped with a 5/8" thread into which a reducer with an in- ner thread of M10 is screwed. You can exchange this thread reducer for a commercially available re- ducer for microphone stands so you can mount the Mounting Arm onto a microphone stand.
  • Page 13 K&F SONA 5 Operation￿with￿or￿without￿a￿controller Operation￿without￿a￿Controller The SONA 5 system is designed so that it can be operated passively without a controller directly on a power amplifier. Follow the instructions in chapter "[Protecting the Speakers / Operating Safety]" be- ginning on page 8.
  • Page 14 User's manual K&F SONA 5 Wiring￿instructions • Before connecting your SONA 5 loudspeaker switch off all equipment and turn down all level controls. • Only use high-quality speaker cables with a sufficient wire gauge. The wire gauge depends on the length of the speaker cable.
  • Page 15 Switch off all equipment and turn down all level controls of the mixing console and the power amplifiers. • Wire your SONA 5 systems according to the instructions in this manual. • Switch on the mixing console first, then the controller and the power amplifier. Always use the before mentioned switching order.
  • Page 16 User's manual K&F SONA 5 11. Technical￿Specifications Design Passive 2-way bassreflex system Frequency￿range￿-10￿dB 80 Hz - 23 kHz Frequency￿range￿+/-￿3￿dB 110 Hz - 22 kHz Coverage￿angles￿nominal 120° x 90° (hor. x vert.) Power￿handling 100 watts (IEC 268-5) SPL￿(1W￿/￿1m) 89 dB SPL Max.￿SPL￿(1m)

  • Page 17: 13. Dimensions

    User's manual K&F SONA 5 13. Dimensions 13.1 with￿Mounting￿Arm￿M￿(56mm)￿–￿(included￿in￿delivery) 140,3 mm / 5,524" 56 mm / 2,218" 170 mm / 6,693" 9,9 mm / 0,390" 2,5 mm / 0,098" 150,2 mm / 5,915" 262,7 mm / 10,343" Ø 5,5 mm / Ø 0.217 45 mm / 1,772"...
  • Page 18 User's manual K&F SONA 5 13.2 with￿Mounting￿Arm￿S￿(32mm)￿–￿(Accessory) 202 mm / 7,954" 230 mm / 9,052" 32 mm / 1,261" 200 mm / 7,865" KLING & FREITAG GMBH © 2012 Revision 3.1 Page 18 of 20...
  • Page 19 User's manual K&F SONA 5 13.3 with￿Mounting￿Arm￿L￿(109mm)￿–￿(Accessory) 279 mm / 10,980" 212 mm / 8,346" 109 mm / 4,288" 203 mm / 7,998" 62,7 mm / 2,469" KLING & FREITAG GMBH © 2012 Revision 3.1 Page 19 of 20...

  • Page 20: 14. Disposal

    User's manual K&F SONA 5 14. Disposal 14.1 Regulations￿for￿Disposal 14.1.1 Germany It￿is￿not￿allowed￿to￿dispose￿of￿used￿electrical￿equipment￿as￿domestic￿waste. Dispose￿of￿the￿device￿at￿public￿collection￿points￿for￿recycling! The device is a so called dual-use product intended for domestic and commercial use. Therefore this device can be disposed of in public collection/recycling points, contrary to Kling & Freitag products which are limited to commercial use.
