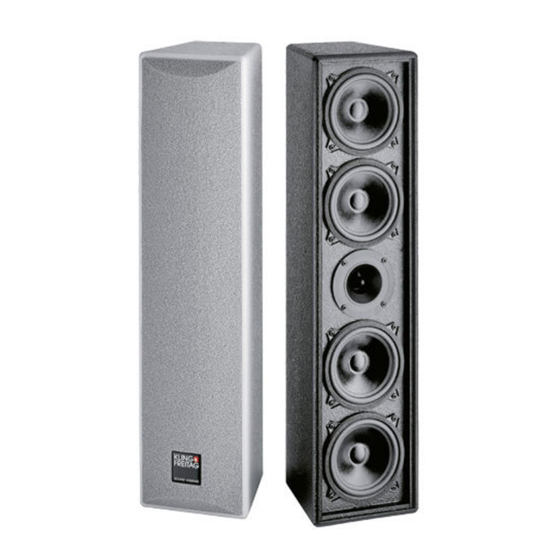

K&F E 90 MK II
Die Version CA 106 F weicht in Form und Aussehen von
User's Manual
Benutzerhandbuch
Important Information,
Please Read before Use!
KLING & FREITAG GmbH
Junkersstrasse 14
D-30179 Hannover
PHONE +49 (0) 511- 96 99 70
TEL 0 (049) 511- 969 97-0
FAX
+49 (0) 511- 67 37 94
www.kling-freitag.de
dieser Abbildung ab.
Released: 26.10.2006
Stand: 08.06.2006
Version 4.0.
Version 1.0
Advertisement
Table of Contents
Related Manuals for KLING & FREITAG E 90 MK II
Summary of Contents for KLING & FREITAG E 90 MK II
- Page 1 K&F E 90 MK II Die Version CA 106 F weicht in Form und Aussehen von dieser Abbildung ab. Version 4.0. Version 1.0 User‘s Manual Benutzerhandbuch Released: 26.10.2006 Stand: 08.06.2006 Important Information, Please Read before Use! KLING & FREITAG GmbH...
- Page 2 User’s Manual E 90 MK II KLING & FREITAG GMBH ©1995 - 2006 Version 4.0, 02.11.2006 Page 2 of 22...
- Page 3 With the purchase of an E 90 MK II System, you have acquired a speaker system with the highest possible quality and performance capabilities. As the owner of this system, you now have a versatile and highly professional tool which, when operated properly, is a true pleasure to use.
-
Page 4: Table Of Contents
7.2.1 What is a Ground Loop? 7.2.2 Avoiding Ground Loops Configurations and Connecting Diagrams 8.1 E 90 MK II Systems in Full-Range Mode 8.2 Full Range Mode & Subwoofer with Crossover (XO) Operating the Speakers 10. Crossover: Wiring Diagram E 90 MK II 11. -
Page 5: General Safety Instructions For Using Speakers
User’s Manual E 90 MK II 1. General Safety Instructions for Using Speakers Mounting the speakers To prevent injury or property damage, this equipment must be securely placed on the floor 10 ( Mounting or secured to the wall according to the mounting instructions on page Instructions for Loudspeakers) . -
Page 6: Preventing Hearing Damage
User’s Manual E 90 MK II The following signals may damage the speakers − permanent high-pitched signals with high frequency and continuous noise from feedback. − permanently distorted signals with high power. − noises, which occur when the amplifier is on while equipment is being connected, Important disconnected or switched on. -
Page 7: E 90 Mk Ii Product Descriptions And Versions
E 90 MK II suitable for fixed installations. Special versions: − E 90 MK II ‘100V’: Version with 100V / 50 VA / 100 VA / 150VA toroidal trans- former − E 90 MK II ‘Outdoor Mobile’... -
Page 8: Important Notes For The Option 'Outdoor Mobile
User’s Manual E 90 MK II Important Notes for the Option ‘Outdoor Mobile’ Speakers with the option ‚Outdoor’ have been optimised for outdoor use. They with- stand temperature fluctuations in moderate climate zones and are resistant against condensation water. In order to guarantee the longevity and safety of the speakers, the models with the option ‘Outdoor’... -
Page 9: Instructions For Versions With '100 V' Option
4.2 Connecting Diagram of the 100V Speaker Inputs The 100 V transformer for the E 90 MK II has 3 taps. These enable the speaker to be operated at 50 VA, 100 VA or 150 VA. Which tap is connected to which pin can be seen below. -
Page 10: Mounting Instructions For Loudspeakers
The following graphics will assist in making a rough estimate as to the distance range of the E 90 MK II. The graphics only take into consideration the sum of the direct sound and not the influence of the room. Because of this there can, in some cases, be noticeable deviation. -
Page 11: Wiring
The speaker is equipped with two parallel Speakon connectors. − Make sure that all units are switched off and all controls are turned down be- fore connecting your E 90 MK II systems. − We recommend the use of high-quality speaker cables provided by Kling & Freitag. -
Page 12: Avoiding Ground Loops
7.2.2 Avoiding Ground Loops If there is a loud humming or buzzing after the E 90 MK II system has been con- nected, then check that a "ground loop" has not been built into the system. Some power amplifiers and system controllers are equipped with a "Ground Lift"... -
Page 13: Configurations And Connecting Diagrams
Warning − maximum rated power 300W@8Ω (equivalent 600W@4Ω) 8.1 E 90 MK II Systems in Full-Range Mode This mode of operation is ideal for speech applications and music applications without the need for a high bass content. Should more bass be needed, the bass level can be increased between 50 and 80 Hz at the mixing console. -
Page 14: Full Range Mode & Subwoofer With Crossover (Xo)
2 E 90 MK II systems: 1 - 2 x SW 112-XO 2 - 4 E 90 MK II systems: 1 x SW 115D-XO 2 - 4 E 90 MK II systems: 1 x SW 115E-XO 2 - 4 E 90 MK II systems: 1 x SW 118E-XO... -
Page 15: Operating The Speakers
In doing so, all amplifier input controls need to be turned off again. Now turn on the control for the left E 90 MK II system and check that the correct signal is coming out of the E 90 MK II system. -
Page 16: Crossover: Wiring Diagram E 90 Mk
User’s Manual E 90 MK II 10. Crossover: Wiring Diagram E 90 MK II 2- 1+ 1- 2+ 2- 1+ 1- IN + IN - LF 1 + 2 LF 3 + 4 LF 1 LF 2 LF 3 LF 4 Pin assignment Speakon NL4 ‘IN’... -
Page 17: Technical Specifications
User’s Manual E 90 MK II 12. Technical Specifications Loudspeaker Design 2-way passive system, column speaker Frequency range -10 dB 95 Hz - 20 kHz Frequency range ±3 dB 140 Hz - 18 Hz Coverage angles (nominal) 100° x 20° TT, 70° x 70° HT (hor. x vert.) Directivity index (DI) 9 (+3.5/-2.5) 800 Hz - 12 kHz... -
Page 18: Measuring Charts
User’s Manual E 90 MK II 13. Measuring Charts Frequency response Frequency response Impedance 31.6 3.16 1000 10000 20000 Frequency (Hz) Beamwidth Horizontal Vertical 1000 10000 20000 Frequency (Hz) Directivity 1000 10000 20000 Frequency (Hz) KLING & FREITAG GMBH ©1995 - 2006 Version 4.0, 02.11.2006... - Page 19 User’s Manual E 90 MK II Horizontal coverage 180° 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120° 15 - 18 -150° > 18 -180°...
-
Page 20: Dimensions
User’s Manual E 90 MK II 14. Dimensions internal threads M6 112.5 mm [4.431 "] 170 mm 175 mm [6.693 "] [6.890 "] 200 mm [7.875 "] 9° KLING & FREITAG GMBH ©1995 - 2006 Version 4.0, 02.11.2006 Page 20 of 22... -
Page 21: Accessories
User’s Manual E 90 MK II 15. Accessories Adjustable speaker mount E 90 U-mount E 90 Stand adapter TV-spigot adapter Pipe Clamp TV-spigot Eyebolt M6 x 15 Further information is available in our downloadable catalogue at: www.kling-freitag.de KLING & FREITAG GMBH ©1995 - 2006 Version 4.0, 02.11.2006... -
Page 22: Regulations For Disposal
User’s Manual E 90 MK II 16. Regulations for Disposal 16.1 Germany: It is not allowed to dispose of used electrical equipment as domestic waste. But please do not dispose of them at official collecting points for recycling either! All Kling & Freitag products are plain business-to-business (B2B) products. Disposal of Kling &...
