PRODUCT INSTALLATION AND OPERATION

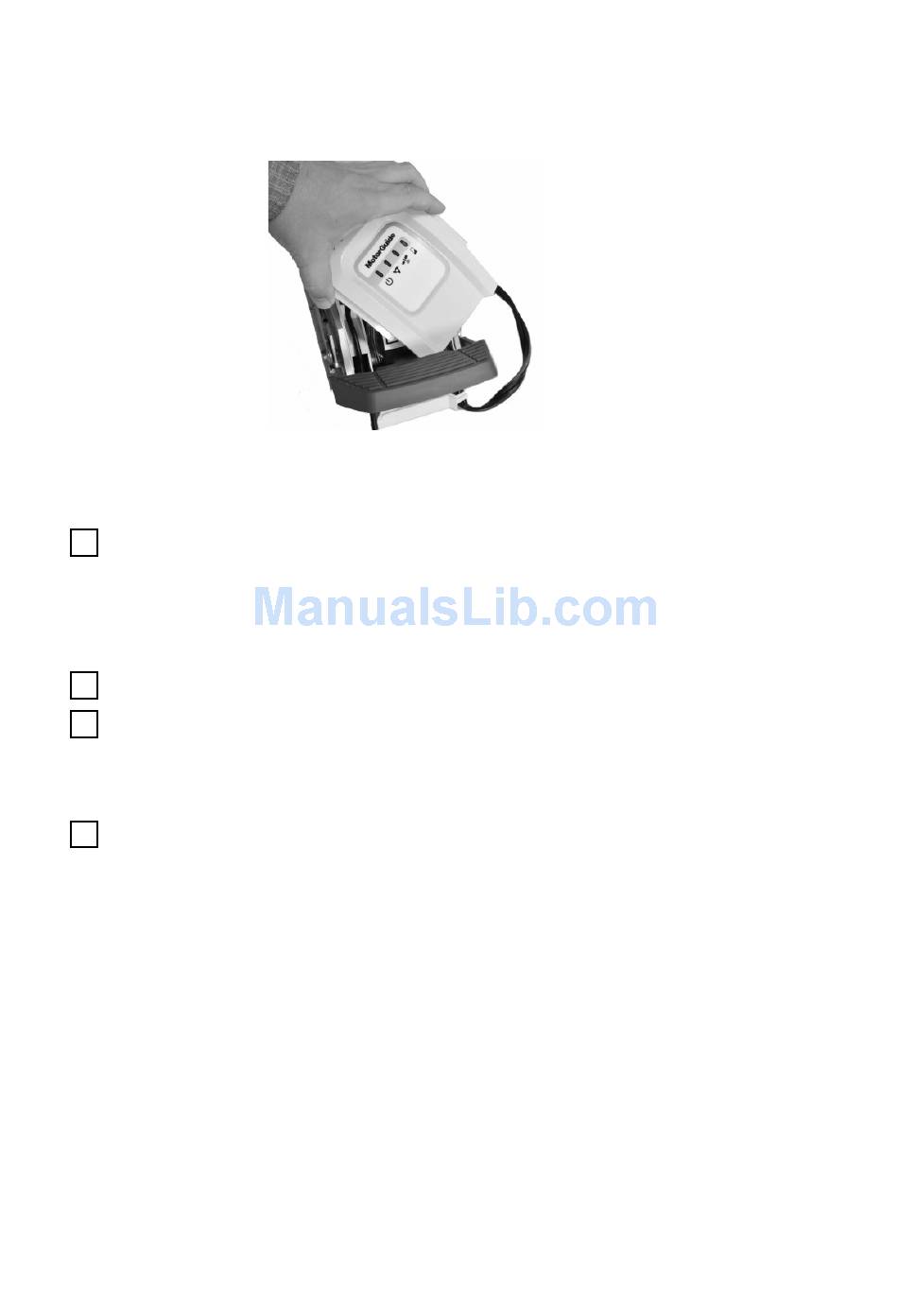

8. Remove the status indicator light panel from the trolling motor by lifting it up,
then rotating it to clear the foot release lever. Do not unplug the status indicator
light panel from the trolling motor.
9. Install the lower GPS module into the empty slot into the trolling motor base in
the following order:
Place the lower GPS module gently into the empty slot. Route the NMEA
cable through the slots as shown, with the connector exiting the trolling
motor base.
NOTE: If the NMEA cable will not be used, it can be coiled and left inside the trolling
motor base.
Remove the cap from the female GPS connector.
Route the male GPS connector through the slot, and connect it to the
female GPS connector by aligning the pins and locating tabs in the
connectors. Press the connectors together, then turn the nut 1/4 turn to
the right until it locks.
Gently press the lower GPS module into the opening until it is fully seated.
