PRODUCT INSTALLATION AND OPERATION

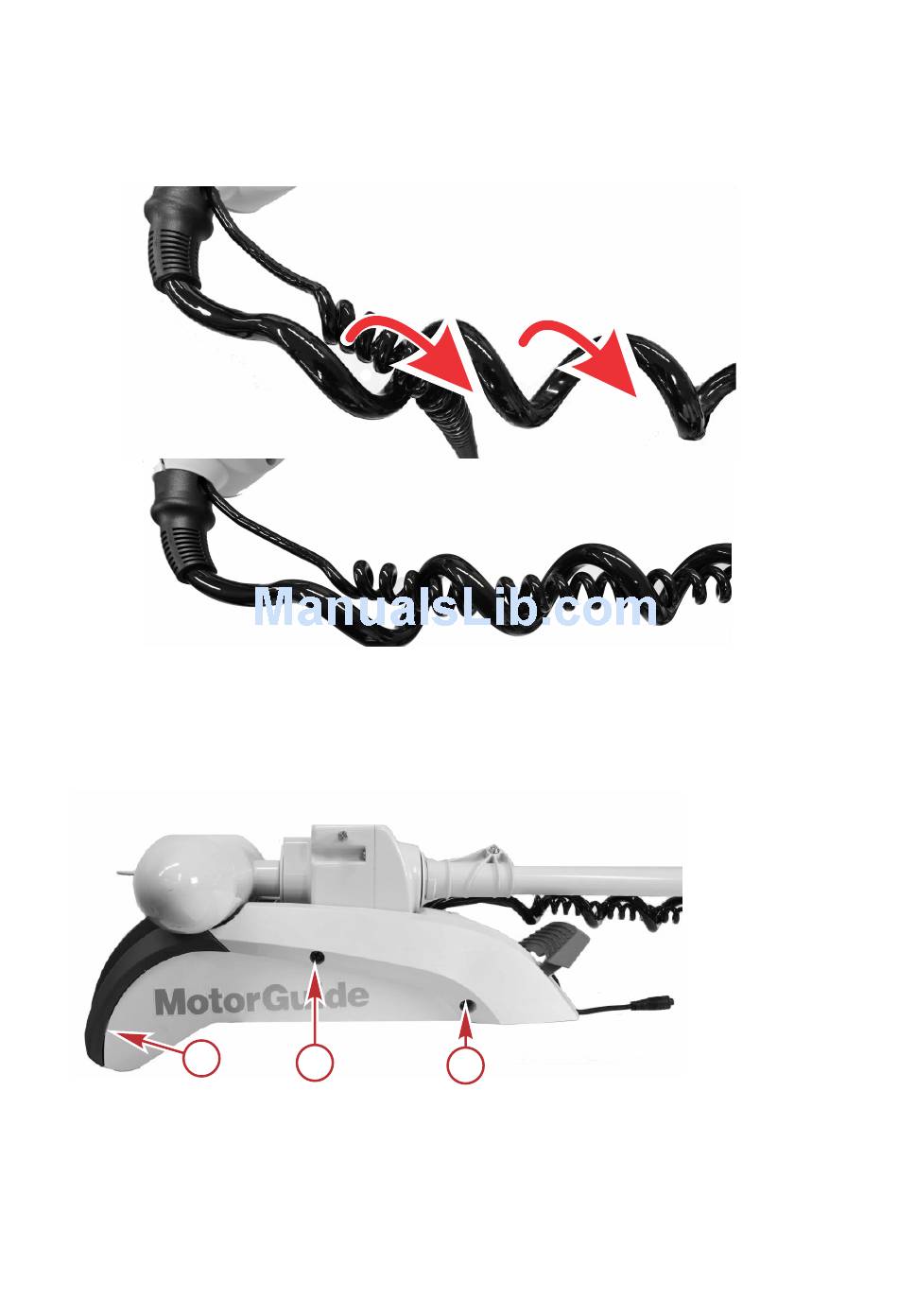

6. Extend the trolling motor column so that the coiled power cable is as long as
possible. Starting from the trolling motor head, wrap the coiled GPS cable
around each coil of the power cable until you reach the lower mount. This will
place the coiled GPS cable inside the coils for the power cable.
7. Remove the side panel screws from each side of the trolling motor. Gently pull
the side panels away from the mount, taking care not to damage the locating
tabs, and remove the side panels from both sides of the trolling motor.
a - Side panel screws
b - Locating tab
eng
b
a
a
5
