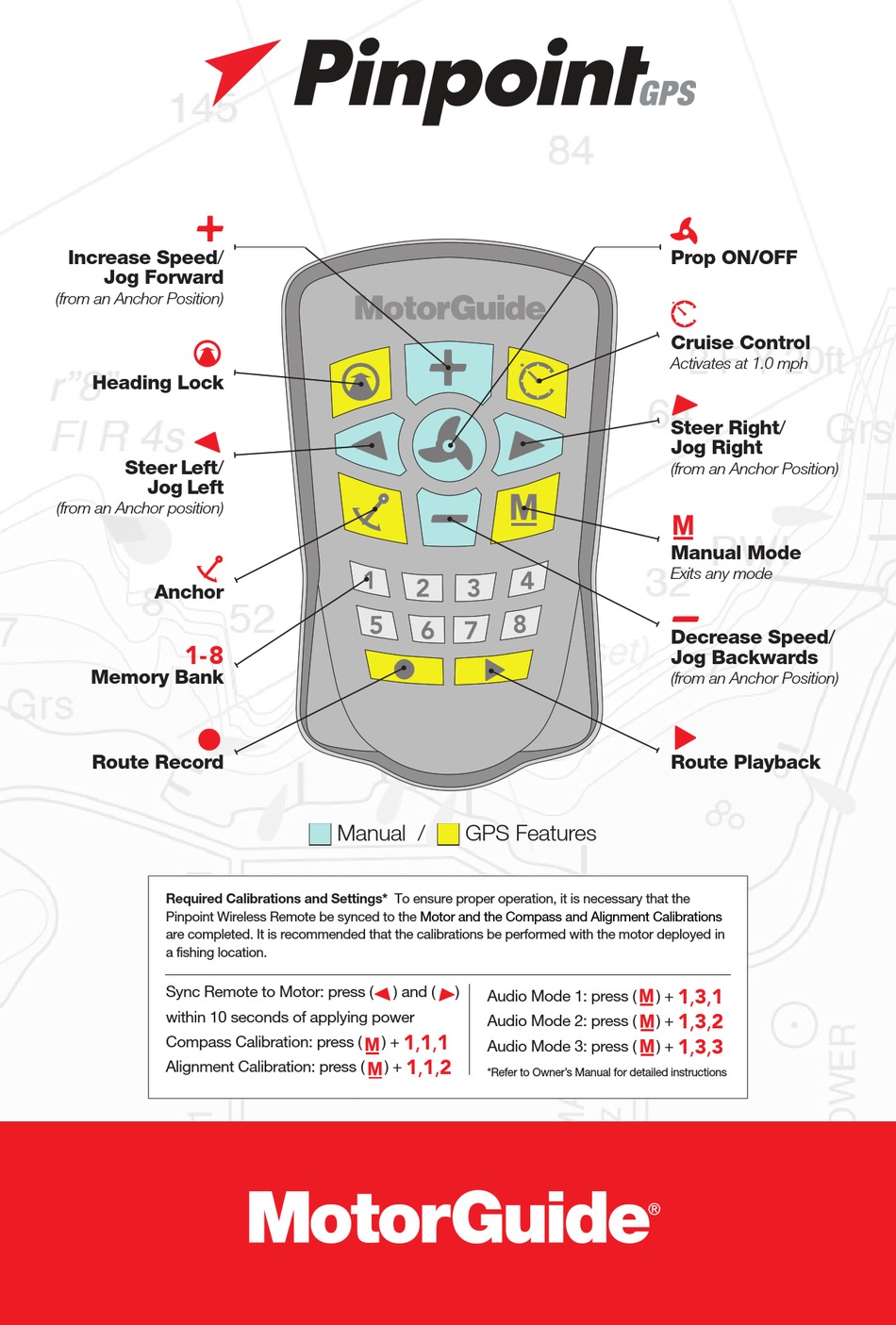

Increase Speed/
Jog Forward
(from an Anchor Position)
Heading Lock
Steer Left/
Jog Left
(from an Anchor position)
Anchor
1-8
Memory Bank
Route Record
Required Calibrations and Settings* To ensure proper operation, it is necessary that the
Pinpoint Wireless Remote be synced to the
are completed. It is recommended that the calibrations be performed with the motor deployed in
a fi shing location.
Sync Remote to Motor: press (
within 10 seconds of applying power
Compass Calibration: press (
Alignment Calibration: press (
Manual /
GPS Features
Motor and the Compass and Alignment Calibrations
) and (
)
1,1,1
) +
1,1,2
) +
Audio Mode 1: press (
Audio Mode 2: press (
Audio Mode 3: press (
*Refer to Owner's Manual for detailed instructions
Prop ON/OFF
Cruise Control
Activates at 1.0 mph
Steer Right/
Jog Right
(from an Anchor Position)
Manual Mode
Exits any mode
Decrease Speed/
Jog Backwards
(from an Anchor Position)
Route Playback
1,3,1
) +
1,3,2
) +
1,3,3
) +
Advertisement
Related Manuals for MotorGuide PinPiont GPS
Summary of Contents for MotorGuide PinPiont GPS
- Page 1 Increase Speed/ Prop ON/OFF Jog Forward (from an Anchor Position) Cruise Control Activates at 1.0 mph Heading Lock Steer Right/ Jog Right Steer Left/ (from an Anchor Position) Jog Left (from an Anchor position) Manual Mode Exits any mode Anchor Decrease Speed/ Jog Backwards Memory Bank...
- Page 2 MANUAL MODE OPERATION STORING AN ANCHOR POSITION • Press and hold any of the numbered Memory • Press and hold any of the numbered Memory ( ) buttons to stop recording and to store the Route After it is powered up, the trolling motor will operate in buttons for two seconds The trolling motor will emit a tune to confi...
