1-5-6 Transfer/Separation section

(1) Detaching and refitting the intermediate transfer unit

Procedure
1. Open the top tray and the paper con-
veying unit.

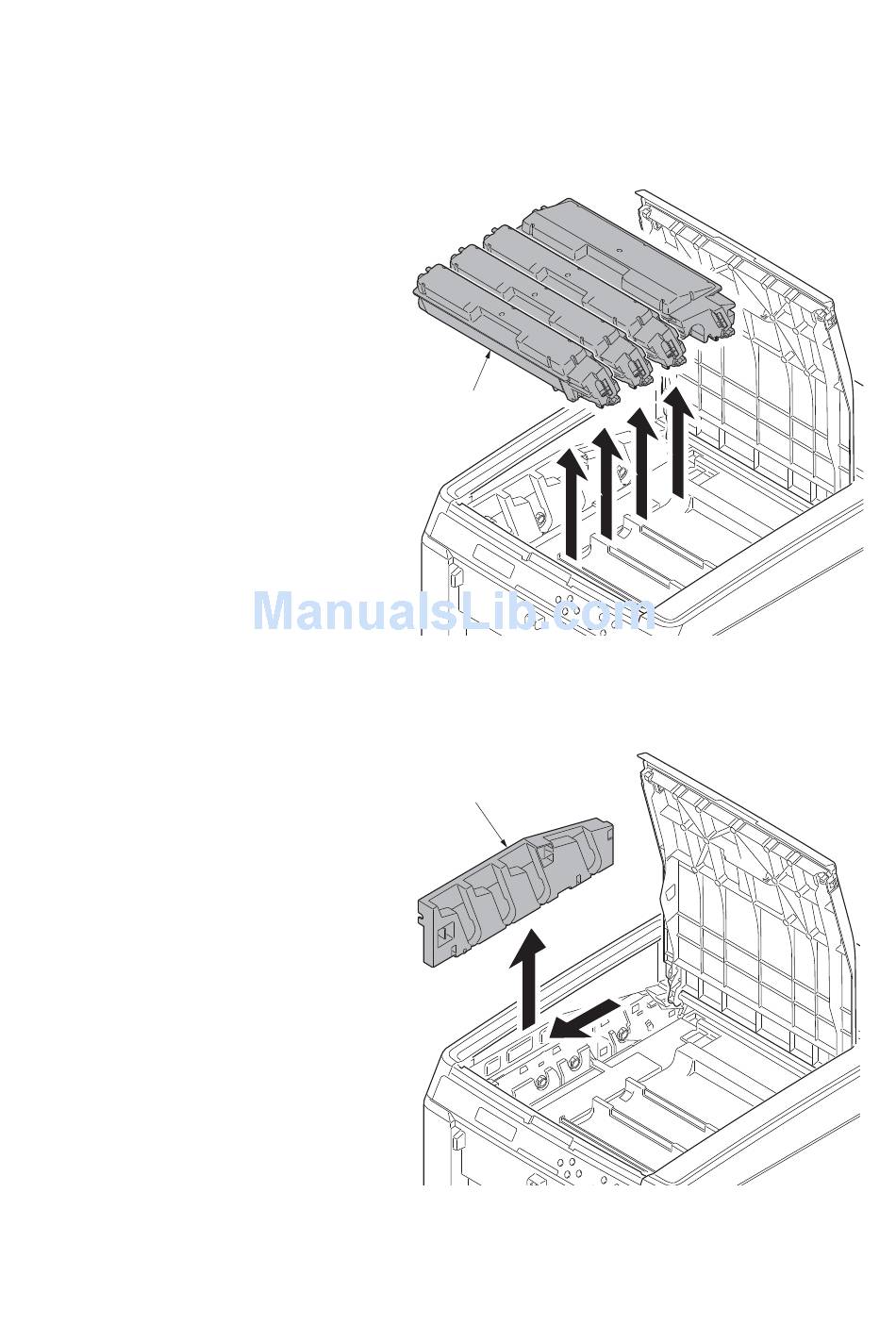

2. Remove toner containers (K, M, C, Y).
3. Slide the container guide forward and
then remove it.
Toner container
(K,M,C,Y)
Container guide
1-5-21
Figure 1-5-29
Figure 1-5-30
2KT/2KV
