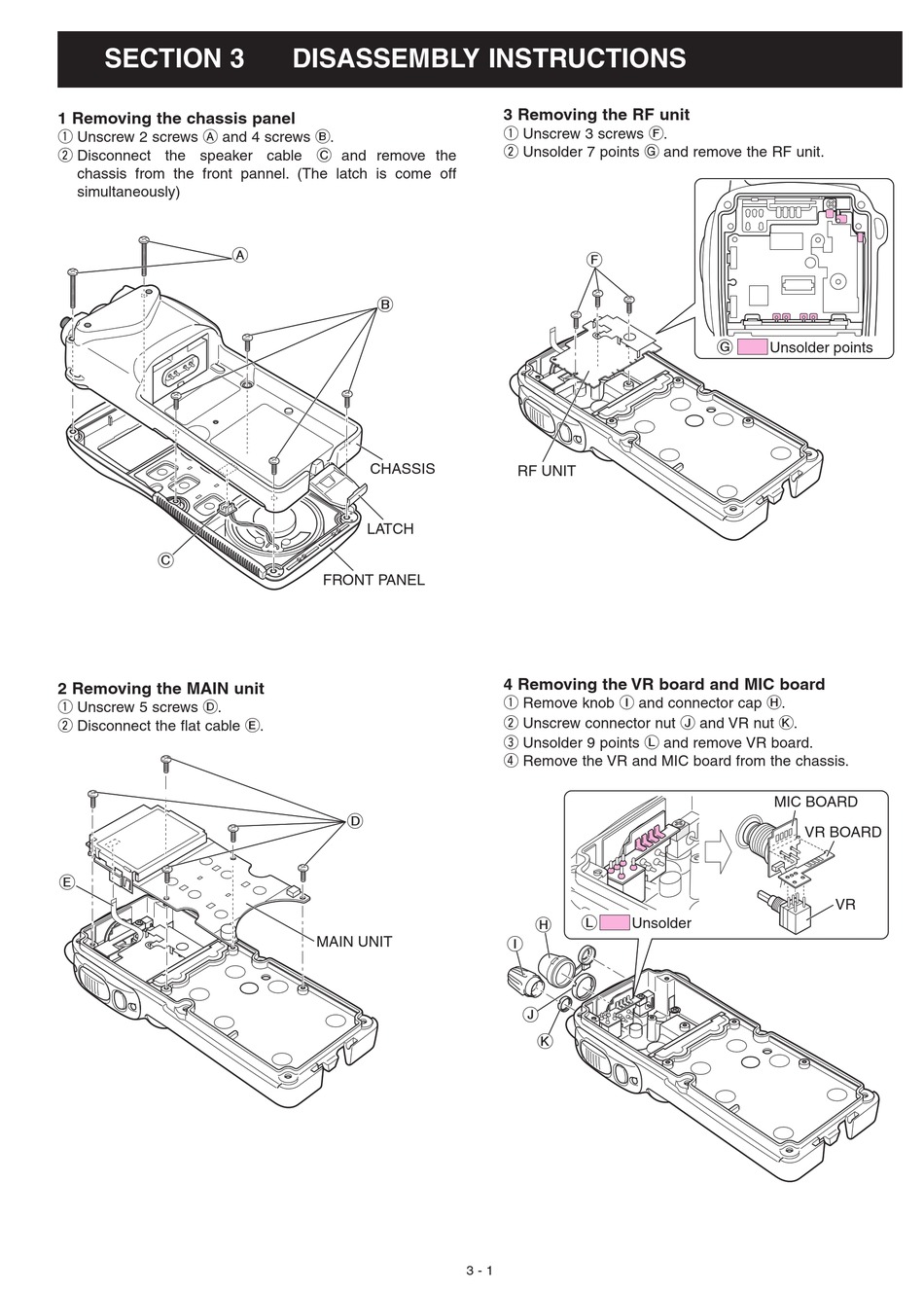

SECTION 3

1 Removing the chassis panel

q Unscrew 2 screws A and 4 screws B.

w Disconnect the speaker cable C and remove the

chassis from the front pannel. (The latch is come off

simultaneously)

2 Removing the MAIN unit

q Unscrew 5 screws D.

w Disconnect the flat cable E.

DISASSEMBLY INSTRUCTIONS

��

3 - 1

3 Removing the RF unit

q Unscrew 3 screws F.

w Unsolder 7 points G and remove the RF unit.

��

4 Removing the VR board and MIC board

q Remove knob I and connector cap H.

w Unscrew connector nut J and VR nut K.

e Unsolder 9 points L and remove VR board.

r Remove the VR and MIC board from the chassis.

��
