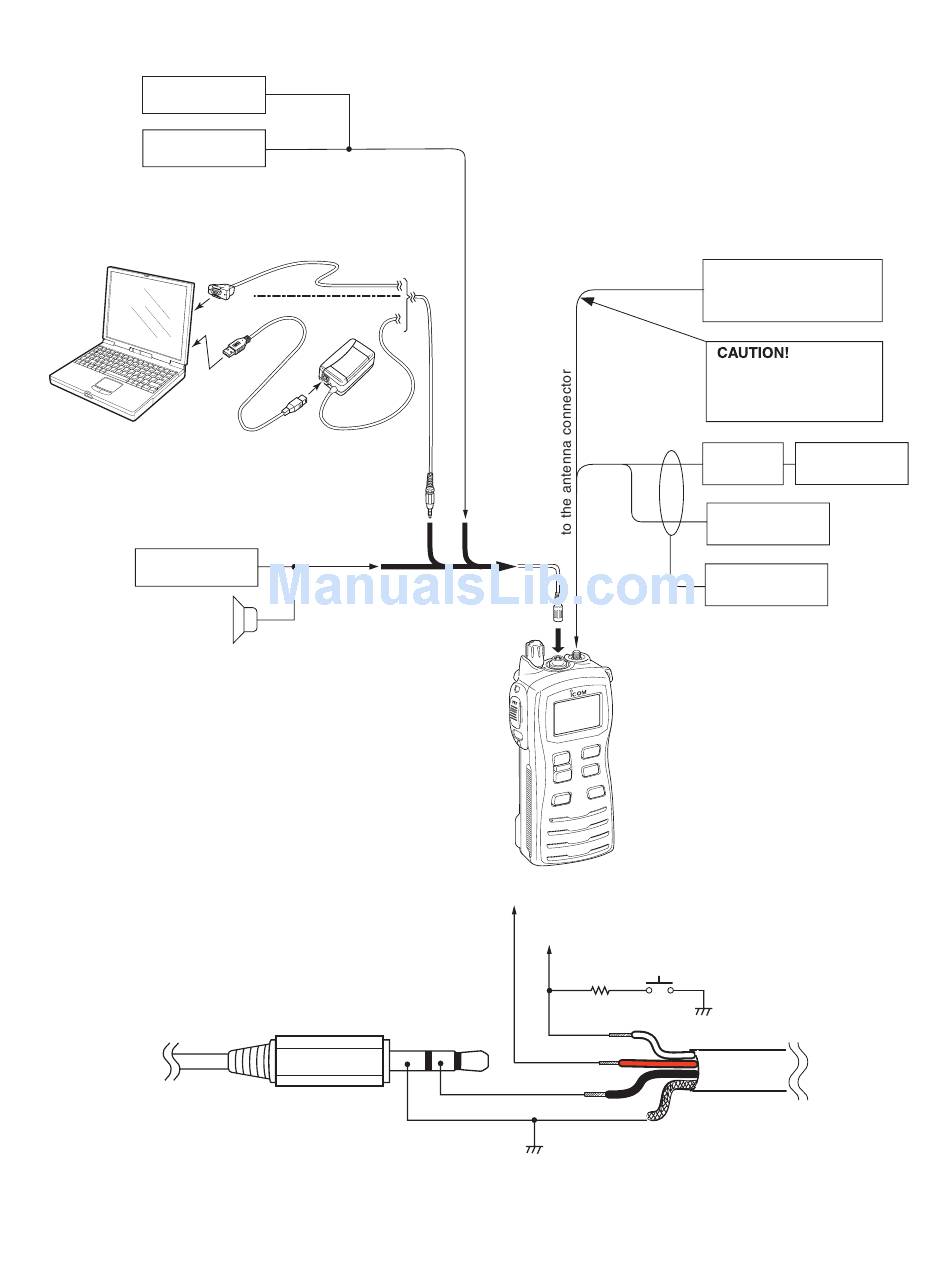

• CONNECTION
AC millivoltmeter
Audio generator
to RS-232C port
to USB port
PC
SINAD meter
Speaker (8 Ω)
OPC-478 (RS-232C type)
OPC-478U (USB type)
To CLONE line
(BLACK)
To SP line
(RED)
OPC-478/U
To MIC line
(WHITE)
JIG cable
OPC-1028
IC-M72
To SINAD meter/speaker
To audio generator/AC millivoltmeter
33 k
(MIC line)
RED (AFOUT)
(SP line)
BLACK (EXDET)
(CLONE line)
5 - 2
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
DO NOT transmit while
an SSG is connected to
the antenna connector.
Attenuator
30 dB or more
RF power meter
0.1–10 W/50 Ω
Frequency
counter
Ω
PTT
WHITE (EXTMIC)
OPC-1028
SHIELD (SPG)
FM
deviation meter
