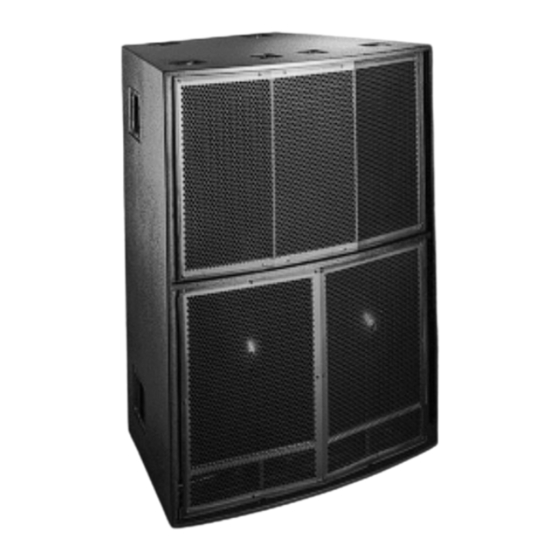

The Meyer Sound MSL-5 is an extremely high-
power, high-performance loudspeaker designed for
large-scale music reinforcement and public address
applications. It is a bi-amplified system consisting
of two proprietary 12" cone drivers in a unique
horn-loaded vented enclosure, and three 2" throat
diameter (4" diaphragm) high frequency drivers with
vertical 70-degree horns. The MSL-5 is a full-range
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
loudspeaker constructed as a 30-degree arrayable
section, and is designed to be operated with the
Meyer Sound M-5 Control Electronics Unit (one M-
5 per channel). The M-5 comprises electronic
crossover, Meyer Sound's exclusive
SpeakerSense™ driver protection circuitry, and
amplitude and phase response alignment circuitry
optimized for the loudspeaker.
