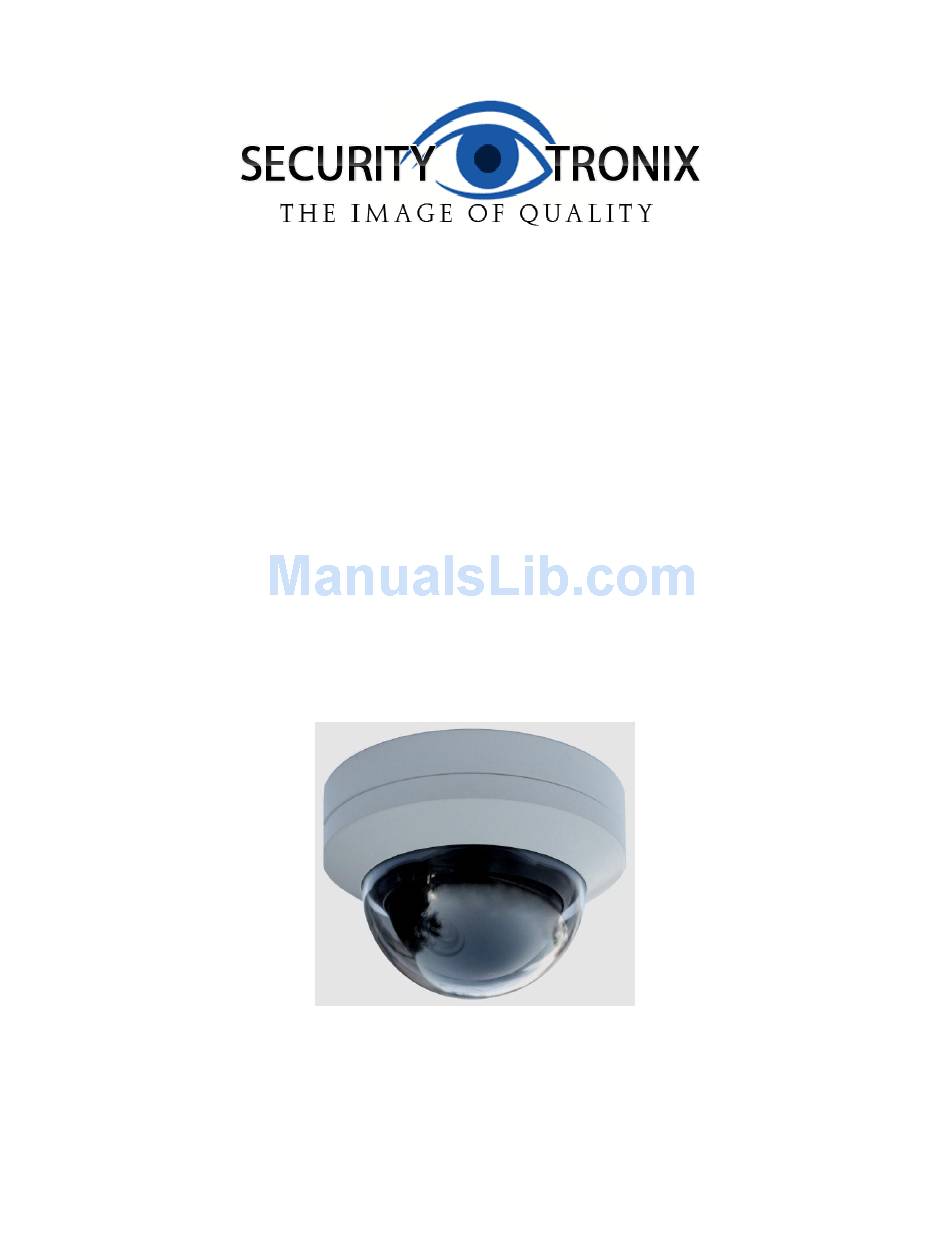

- Page 1 INSTALLATION MANUAL ST-D600VP3.6-B-W Vandalproof Dome Color Camera v1.0 12/20/11...
-
Page 2: Package Contents

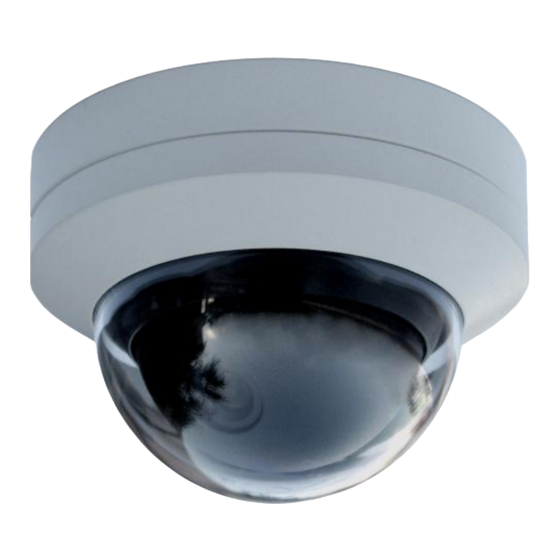

PACKAGE CONTENTS This package contains: One ST-D600VP3.6 vandalproof color camera Mounting hardware One installation manual Note: The ST-D600VP3.6 requires a minimum12VDC 150mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D600VP3.6 is a vandalproof dome color camera designed around a 1/3” Pixel Plus Color CMOS sensor with 600TVL of resolution. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power port. b. Connect the camera to the monitor with a 75 coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
