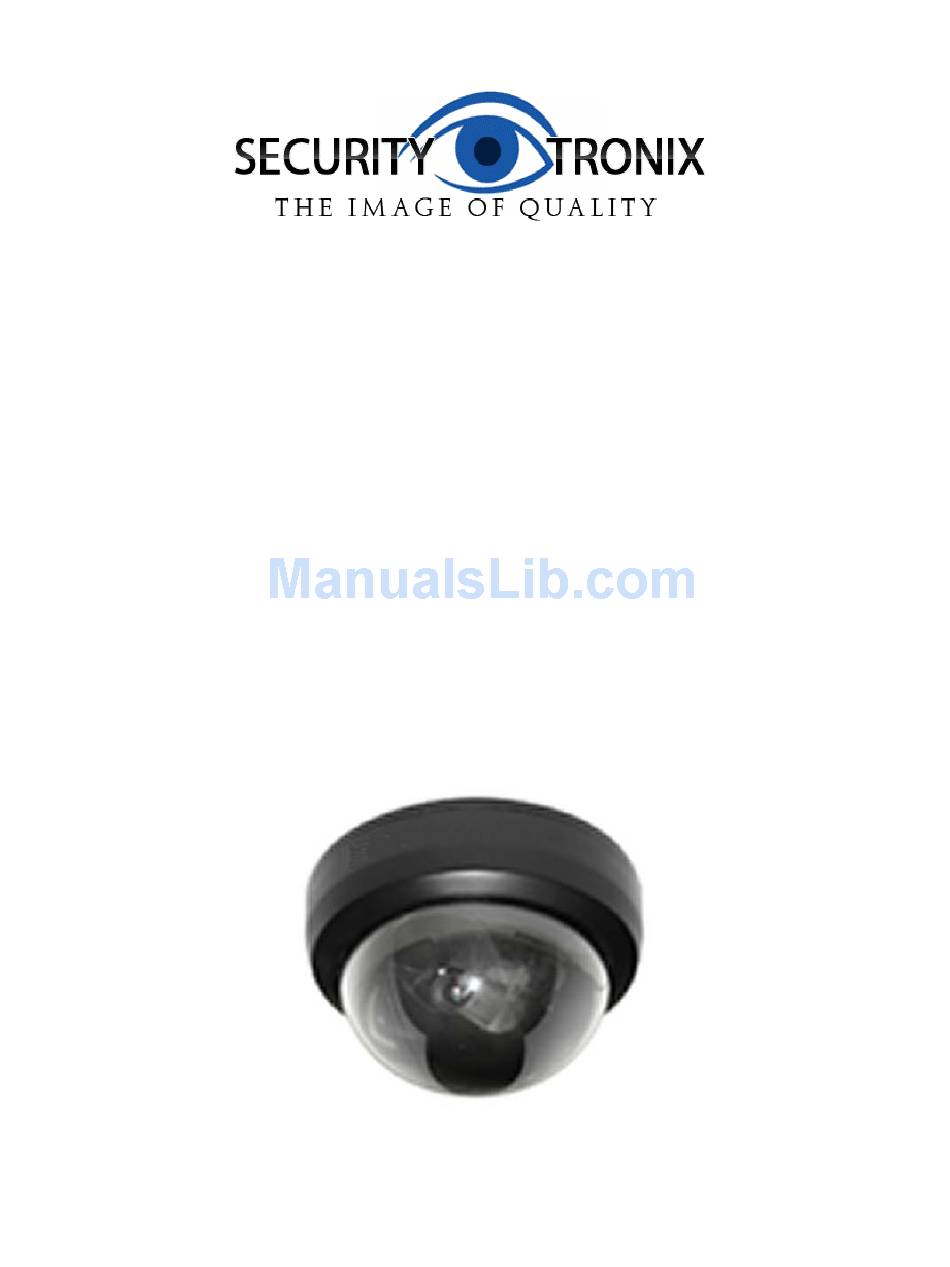

- Page 1 INSTALLATION MANUAL ST-D6003.6 –B or –W Indoor Color Dome Camera With CMOS Sensor v1.0 1/14/11...
-
Page 2: Package Contents
PACKAGE CONTENTS This package contains: One ST-D6003.6 indoor color dome camera with CMOS sensor One installation manual Note: The ST-D6003.6 requires a minimum 12VDC 500mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D6003.6 is an indoor color dome camera designed around a 1/3” CMOS sensor with 600TVL of resolution auto white balance and super back light compensation. -
Page 3: Unpacking And Handling
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. -
Page 4: Wiring Connections
4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d. -
Page 5: Troubleshooting
5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
