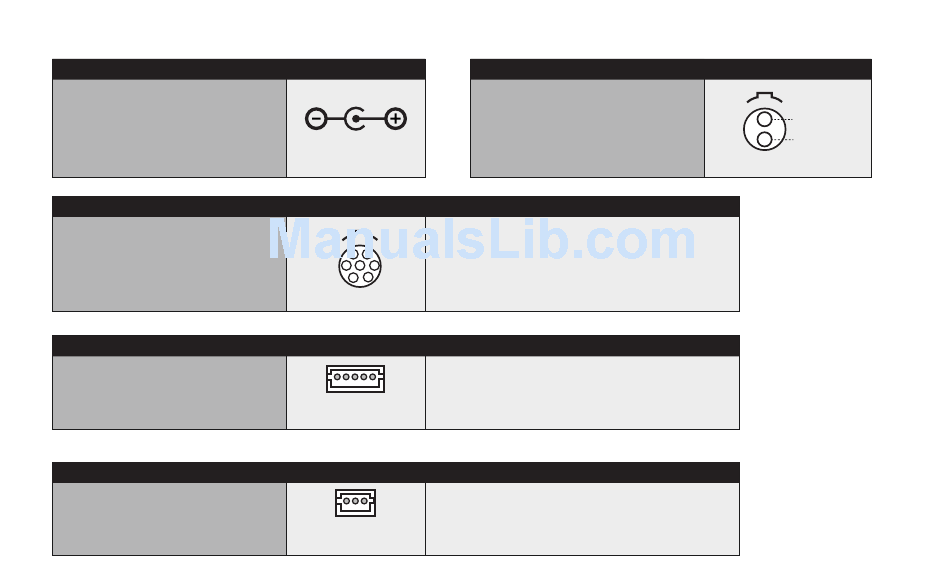

CONNECTORS AND PINOUTS

13-20V DC INPUT
5.5mm OD
2.1mm ID Barrel Jack Connector
Center Positive
e.g. CUI Inc PP3-002A
AUXILIARY DATA PORT
7-pin LEMO
FGG.0B.307.CLAD52
RECEIVER DATA PORT
5-pin JST ZH
RECEIVER SPEKTRUM / RECORD OUTPUT PORT
3-pin JST ZH
TYPE
1 6
307
2 7 5
3 4
(LOOKING IN TO CONTROLLER-
SIDE CONNECTOR)
ZHR-5
1 2 3 4 5
(LOOKING IN TO RECEIVER-
SIDE CONNECTOR)
ZHR-3
1 2 3
(LOOKING IN TO RECEIVER-
SIDE CONNECTOR)
12V DC OUTPUT
2-pin LEMO
FGG.0B.302.CLAD52
1 - GND
2 - 5V Output, 1A max.
3 - GPIO1 (0.0V - 3.3V)
4 - GPIO2 (0.0V - 3.3V)
5 - GPIO3 (0.0V - 3.3V)
6 - Auxiliary Data Out (3.3V digitial output)
7 - Auxiliary Data In (3.3V digital input, 5V tolerant)
1 - GND
2 - 5V Input
3 - Data In (3.3V digital input, 5V tolerant)
4 - Data Out (3.3V digital output)
5 - GPIO1
1 - 3.3V Input
2 - GND
3 - Shutter/Record or Spektrum Data Out
(3.3V digital output)
TYPE
1
12V DC OUTPUT, 3A MAX
302
2
GND
(LOOKING IN TO CONTROLLER-
SIDE CONNECTOR)
