- Page 1 MōVI Wired Control Kit Installation Manual July 2018 | Rev 01...

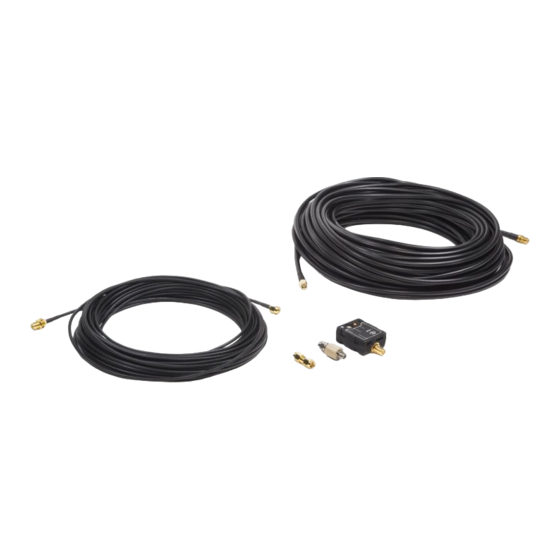

- Page 2 Overview The MōVI Wired Control Kit allows for reliable control in crowded radio frequency environments that may otherwise lead to interference. The wired solution also helps reduce the radio frequency emissions of the system. The kit includes two types of coax cable to choose from. The thinner RG-174 cable is better for shorter distances and when more flexibility is preferred.
-
Page 3: Installation
Installation STEP 1 On the MōVI Pro or MōVI XL, connect the Freefly SMA RX (receiver) to the COM1 port on the GCU via the black 5-pin cable. On M-Series MōVI (M5/M10/M15), connect the Freefly SMA RX (receiver) to the Com port on the GCU, routed under the strain relief cover. - Page 4 STEP 3 If you are using the MōVI XL, route the coax cable through the pan motor. If using with other MōVI models, guide cable around pan motor and down to the GCU. Always route cabling so that it has enough slack during shooting action such that it doesn’t restrict movement.
- Page 5 MōVI Wired Control Kit Manual | 850-00259...
- Page 6 STEP 4 Attach the “RP-SMA to SMA adapter” and the “DC blocker” to the Freefly SMA RX. Attach 50’ or 100’ coax cable in-between the MōVI Controller and the SMA RX. Mount Freefly SMA Rx on MōVI with included dual lock tape. STEP 5 Power on the system and verify everything is functioning normally.
