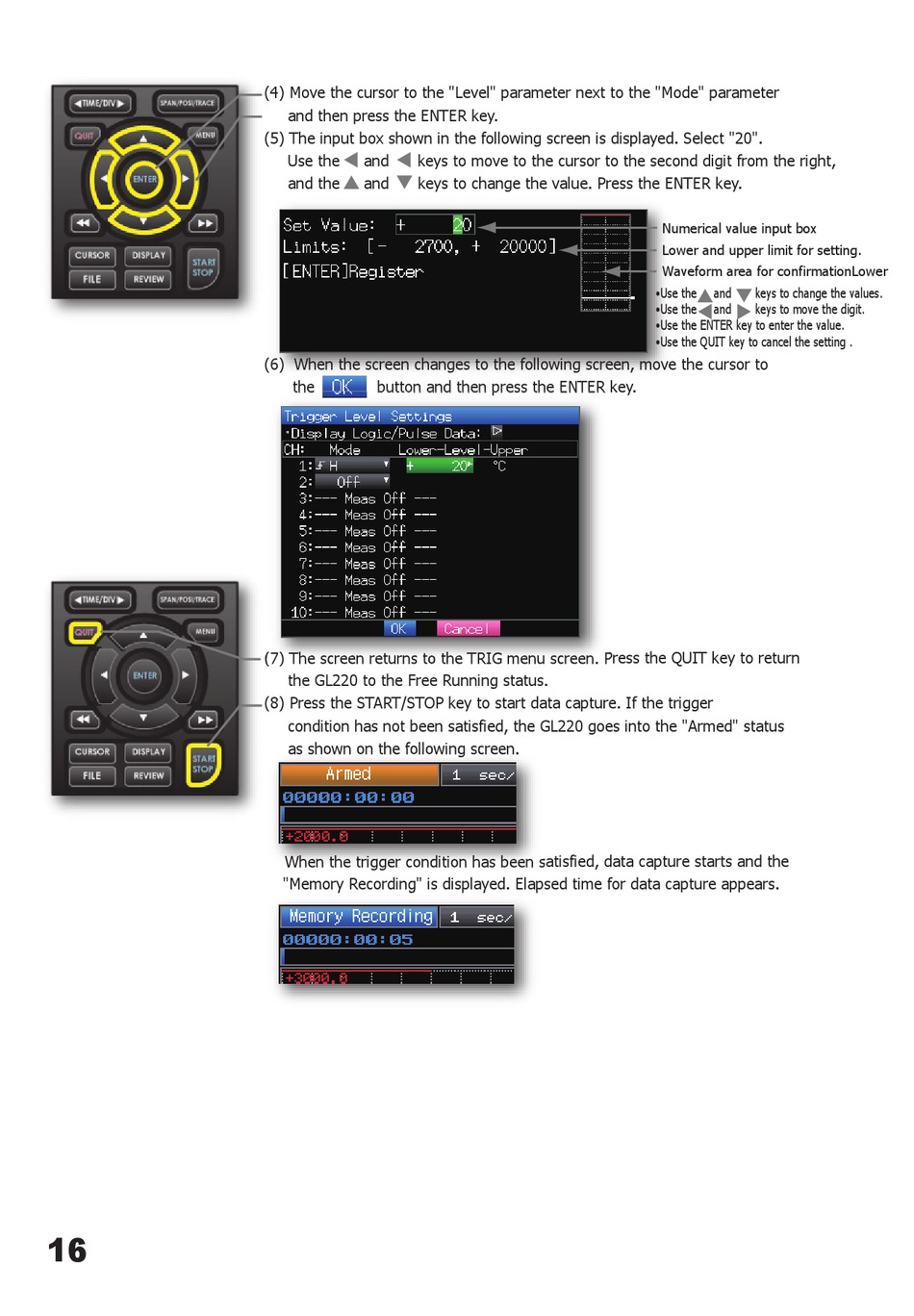

(4) Move the cursor to the "Level" parameter next to the "Mode" parameter
and then press the ENTER key.
(5) The input box shown in the following screen is displayed. Select "20".
Use the
and
keys to move to the cursor to the second digit from the right,
and the
and
keys to change the value. Press the ENTER key.
(6) When the screen changes to the following screen, move the cursor to
the
the
button and then press the ENTER key.
button and then press the ENTER key.
(7) The screen returns to the TRIG menu screen. Press the QUIT key to return
(7) The screen returns to the TRIG menu screen. Press the QUIT key to return
(7) The screen returns to the TRIG menu screen. Press the QUIT key to return
the GL220 to the Free Running status.
(8) Press the START/STOP key to start data capture. If the trigger
condition has not been satisfied, the GL220 goes into the "Armed" status
as shown on the following screen.
as shown on the following screen.
as shown on the following screen.
When the trigger condition has been satisfied, data capture starts and the
When the trigger condition has been satisfied, data capture starts and the
"Memory Recording" is displayed. Elapsed time for data capture appears.
"Memory Recording" is displayed. Elapsed time for data capture appears.
Numerical value input box
Lower and upper limit for setting.
Waveform area for confirmationLower
•Use the
and
keys to change the values.
•Use the
and
keys to move the digit.
•Use the ENTER key to enter the value.
•Use the QUIT key to cancel the setting .
