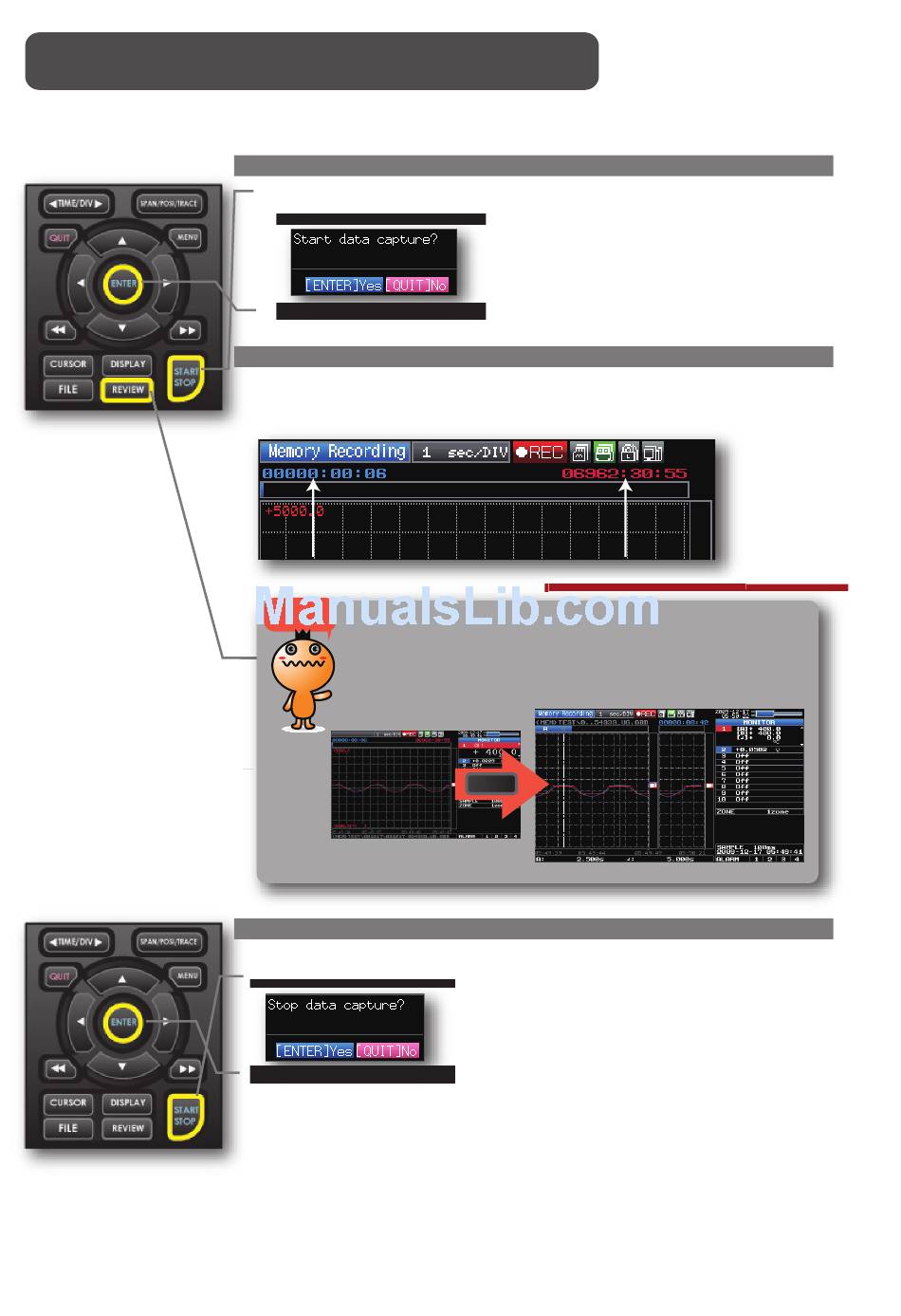

3. Data Capture: How to Capture Data

All of setting for the data capture have been set, capturing data can be started now.

During the data capture operation, let's also replay some data that was captured previously.

1. Starting data capture

　(1) Press the START/STOP key.

　(2) A confirmation message is displayed.

　(3) Press the ENTER key to start data capture.

2. Screen status during data capture

Once data capture has started, progress of data capture is shown. The displayed

time is counting up or down.

capturing message

elapsed time

Points to

Data can be replayed while being captured by pressing the REVIEW key. Data

Remember !

can be replayed during the data capture operation from the beginning to the

point that has been captured. During the replay, you can check arbitrary level

values and such by moving the cursor. You can return to the data capture

screen by pressing the REVIEW key again.

3. Stopping data capture

Press the START/STOP key to end the data capture operation.

(1) Press the START/STOP key.

(2) A confirmation message is displayed. Press the ENTER key.

(3) Data capture ends, and the GL220 goes into the Free Running status.

The operation of data capture is completed.

remaining time for data capture

( (

(

The indication becomes ++++ when the data capture time is 9999 hours or more.)

REVIEW
