NOTES ON MAINTENANCE

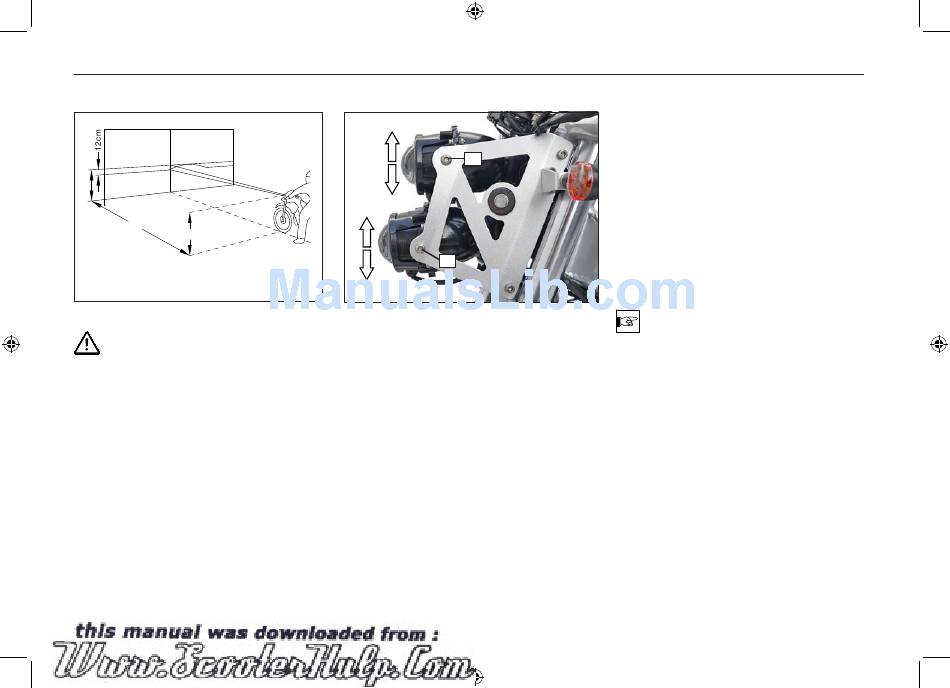

Adjusting the headlamps

H
5m
H
WARNING
Do not run the engine in an enclosed
space (risk of asphyxiation).
Position the motorcycle on a level floor 5
m (measured from the headlamp) from a
light coloured wall with a rider seated on
the motorcycle and the tyres filled at the
correct pressure.
58
2
1
- Measure the distance from the floor to
the centre of the headlamp and mark
the height on the wall with a cross. Draw
a second cross 12 cm beneath the first
cross.
- Star t the motorcycle and run the
engine.
Adjusting the headlight
- Activate the dipped beam.
- Use the adjusting screw (1 and 2) on
both sides to adjust the angle of the
asymmetrically illuminated surface area
of the road top.
- Release srews (1) and (2), adjust and
tighten up.
NOTE
If you have problems adjusting the
headlamps, see a specialised Sachs dealer.
An incorrect adjustment is punishable by
law. Remember, you are responsible for
the correct adjustment of the motorbike's
headlamp.
