9.0 VOLTAGE CONTROLLED AMPLIFIER.

An ADSR contour generator controls the VCA.
9.1 ATTACK.
Same as section 8.6.
9.2 DECAY.
Same as section 8.7.
9.3 SUSTAIN.
Same as section 8.8.
9.4 RELEASE.
Same as section 8.9.

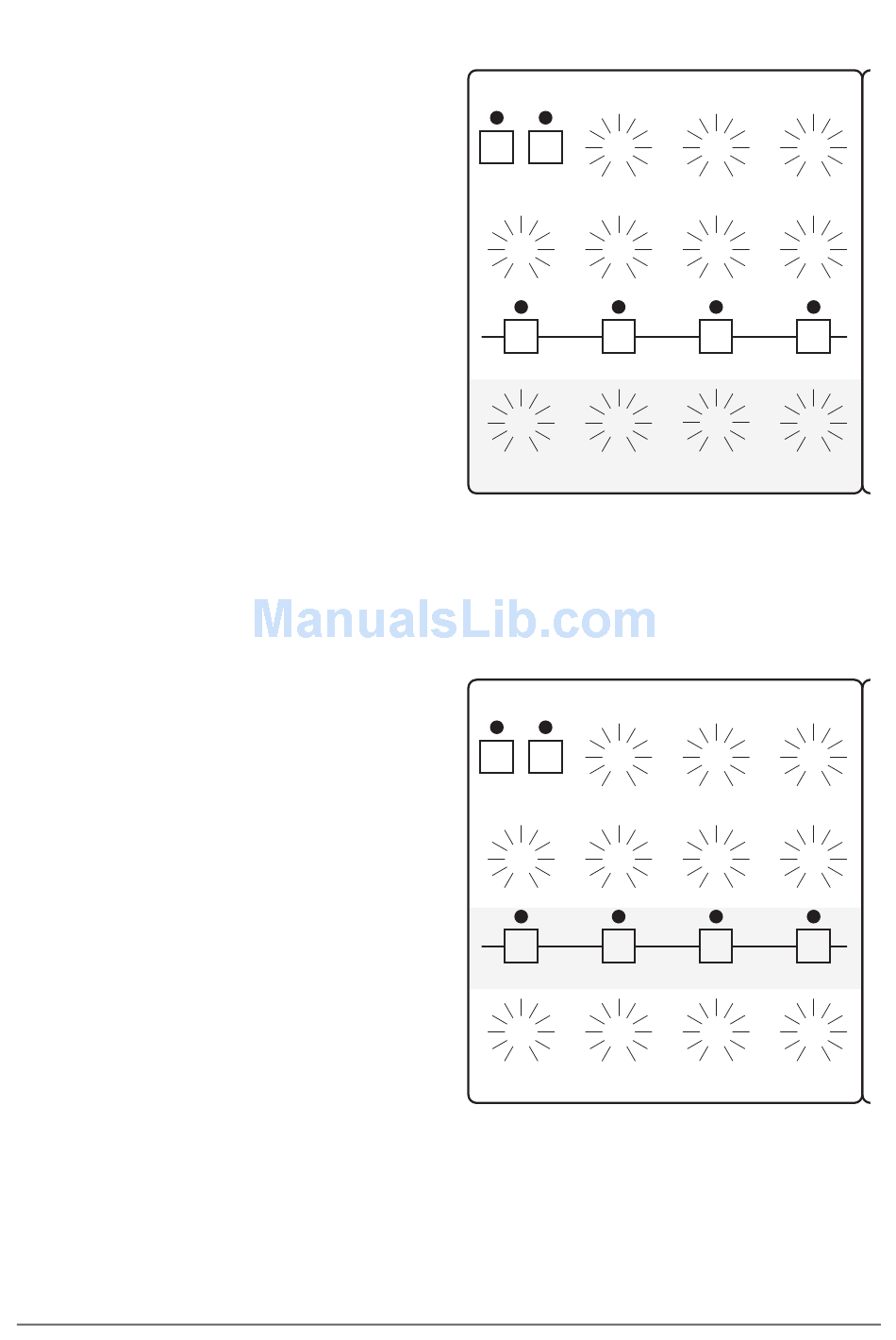

10.0 CONTOUR CONTROLS.

This set of four switches affects both Contour
Generators.
10.1 RETURN TO ZERO.
Normally, the Contour Generators, if retrig-
gered during the attack segment, start from the
existing voltage level. With this switch on, the
attack segment will always reset to zero volts.
10.2 UNCONDITIONAL CONTOUR.
With this switch off, the Contour Generators
will go into their release states (if the RE-
LEASE SWITCH [10.4] is on or the RELEASE
FOOT SWITCH [15.1] is depressed) only when
you let up on a key. With the switch on, when
you let up on a note, the Contour Generators
will go through their entire attack phase and
then jump immediately into the release state.

10.3 KEYBOARD FOLLOW.

When this switch is on, the voltage from the key
board varies the attack, decay and release times
of the Contour Generators. The lower you play,
the longer the times; the higher you play, the
shorter the times.
10.4 RELEASE.
Turns the release segment of the Contour Gen-
erators on and off. This control interacts with
the RELEASE FOOTSWITCH (15.1).
