Moog Memorymoog 345 Owner's Manual page 9

1.7 KB MODE.
KEYBOARD MODE affects the priority of the
keyboard when it's in both mono and polyphonic
modes. In mono mode, the SYSTEM CONTROL-
LER (3.0) Alphanumeric Display shows either
"MONO 1, 2 or 3," depending on the mono mode
programmed. Mono 1 is last-note priority, Mono 2
is low-note priority, and Mono 3 is high-note pri-
ority. In polyphonic mode, the Alphanumeric Dis-
play will show either "POLY 1" (cyclic), "2" (cy-
clic with memory), "3" (reset to voice A), or "4"
(reset to voice A with memory). Voltages routed
to an external synth via the EXTERNAL SYN-
THESIZER OUTPUT (14.0) are affected by this
control.
1.8 HOLD.
Lets you build up chords and transpose them in
parallel motion from the keyboard. Holding a
chord and then pressing the HOLD button will
memorize the chord. Holding down the HOLD
button and then pressing notes on the keyboard
will let you build widely spaced chords. Releasing
the HOLD button memorizes the chord. The chord
can then be transposed from the last note you
played on the keyboard.
1.9 ARPEGGIATOR.
Continuously triggers note played on the key-
board. Rate is set by the LFO (5.0) speed. The
Clock can be overridden by an external trigger
source at the CLOCK IN (15.5) on the back panel.
The internal clock is reset by the keyboard so you
can always play in time. The Arpeggiator operates
in six different modes:
1) Plays back notes from bottom to top, un-
latched (notes stop when you lift off the key-
board).
2) Plays back notes from top to bottom, un-
latched.
3) Plays back notes from top to bottom, and then
from bottom to top, unlatched.
4) Plays back notes from bottom to top (latched).
The notes will continue if you lift your hands
off the keyboard.
5) Plays back notes from top to bottom, latched.
6) Plays back notes from top to bottom, and then
from bottom to top, latched.

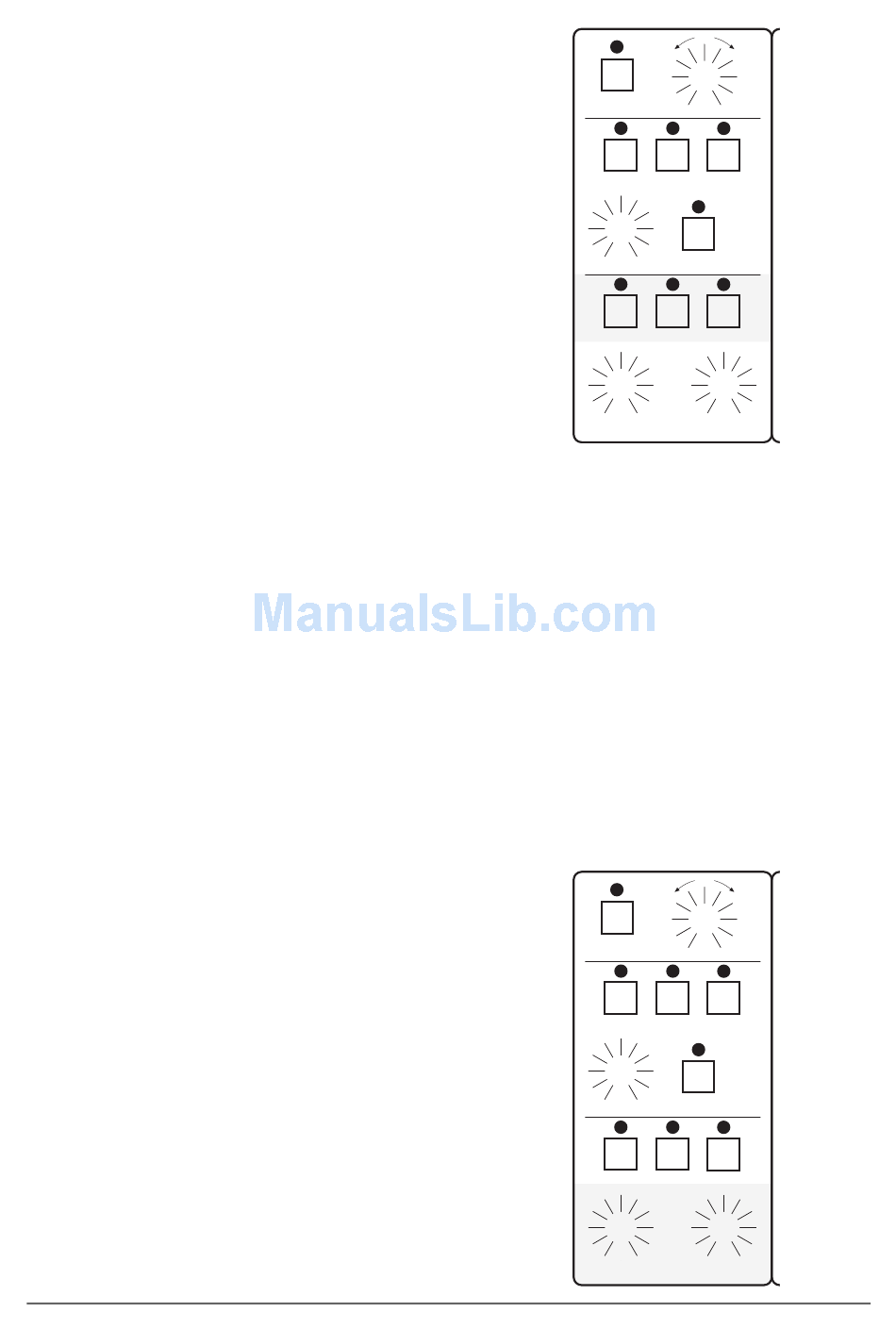

6
@
