This section of the Memorymoog manual is designed to answer questions about the function of each
control on the front and back panels of the instrument. It's a quick reference guide; more detailed
explanations will be found in the next portion of the manual.

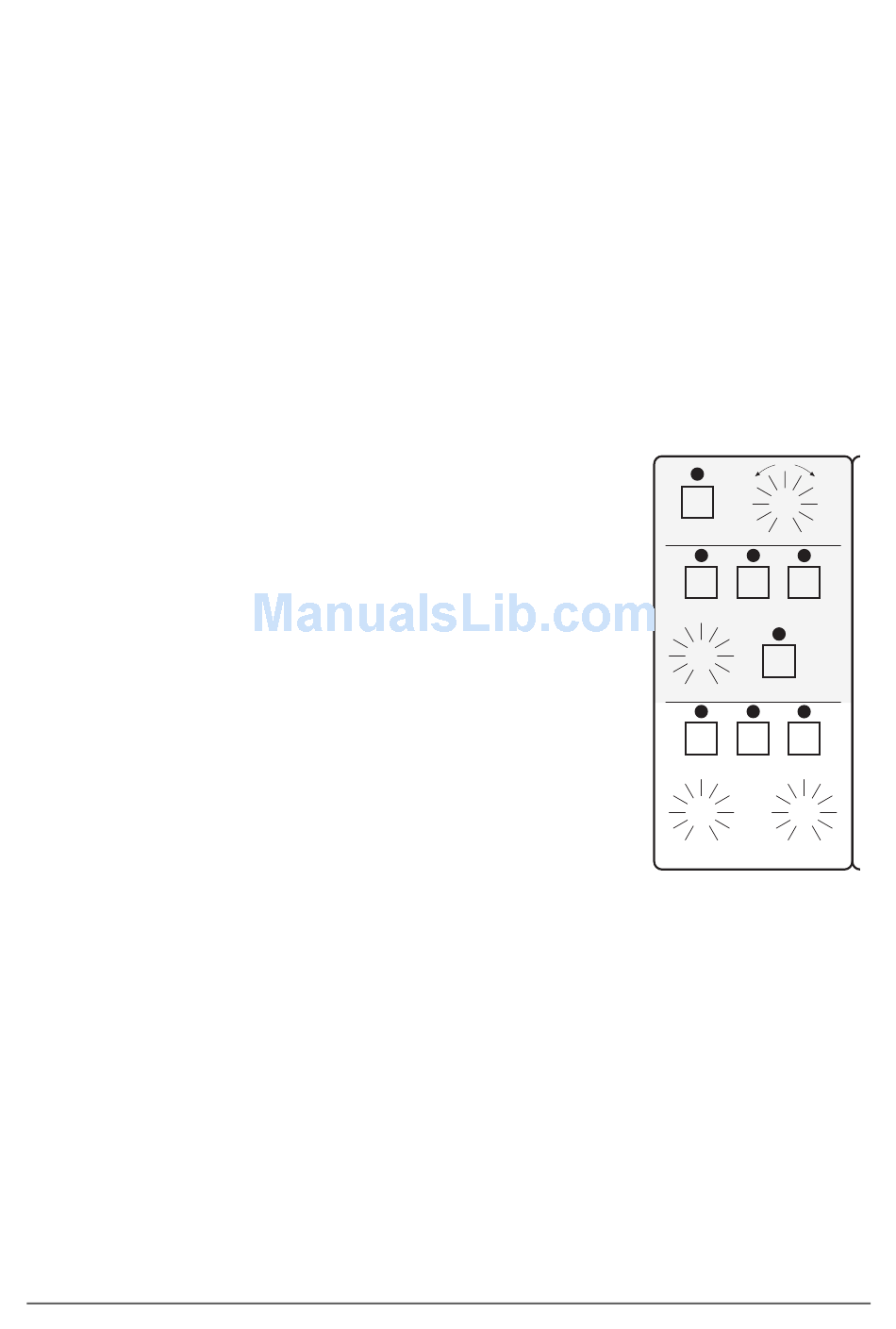

1.0 KEYBOARD/PERFORMANCE CONTROLS.

1.1 AUTO TUNE.
Touching this switch causes the computer in the unit to tune the
18 oscillators. Tuning takes about 8 seconds. The instrument
will be "dead" for that period of time. The SYSTEM CON-
TROLLER's (3.0) Alphanumeric Display will show "TUNING"
when the switch is initially depressed, and it will show how
many voices have been tuned at the end of the tuning cycle.
1.2 TUNE.
Lets you fine tune the instrument over a range of ± 3 semitones.
This is a non-programmable control and will affect all voices
identically.
1.3 MONO.
This switch puts the instrument into the monophonic mode - it
will play only one key at a time. The number of voice cards you
control is variable from I up to 6, giving you control over from
1 to 18 oscillators. This is programmed by the SYSTEM CON-
TROLLER (3.0) and the MIXER section (7.0).
1.4 MULTIPLE TRIGGER.
When on, the keyboard triggers all contours when any new
keys are depressed. When off, new notes trigger only the as-
signed voice.
1.5 KB OUT.
KEYBOARD OUT controls the trigger and voltage outputs
from the EXTERNAL SYNTHESIZER OUTPUT section
(14.0). It's used when controlling an external synthesizer. When
on, the Memorymoog will control the external synthesizer.
1.6 GLIDE AMOUNT AND GLIDE ON/OFF.
The glide is both monophonic and polyphonic. When the in-
strument is in mono mode, a master glide circuit takes over for
the 6 separate glide circuits that work when it's in polyphonic
mode, and allows the instrument to glide in unison. Glide is
linear. Maximum glide time between the outer notes of the key-
board is about 10 seconds.

SECTION II

0
#
@
AUTO TUNE
TUNE
MONO KB OUT
MULTIPLE
TRIGGER
5
2 8
GLIDE ON/OFF
0 10
GLIDE
KB MODE HOLD ARPEGGIATOR
5 5
2 8 2
0 10 0 10
PITCH BEND MODULATION
AMOUNT AMOUNT
8
5
