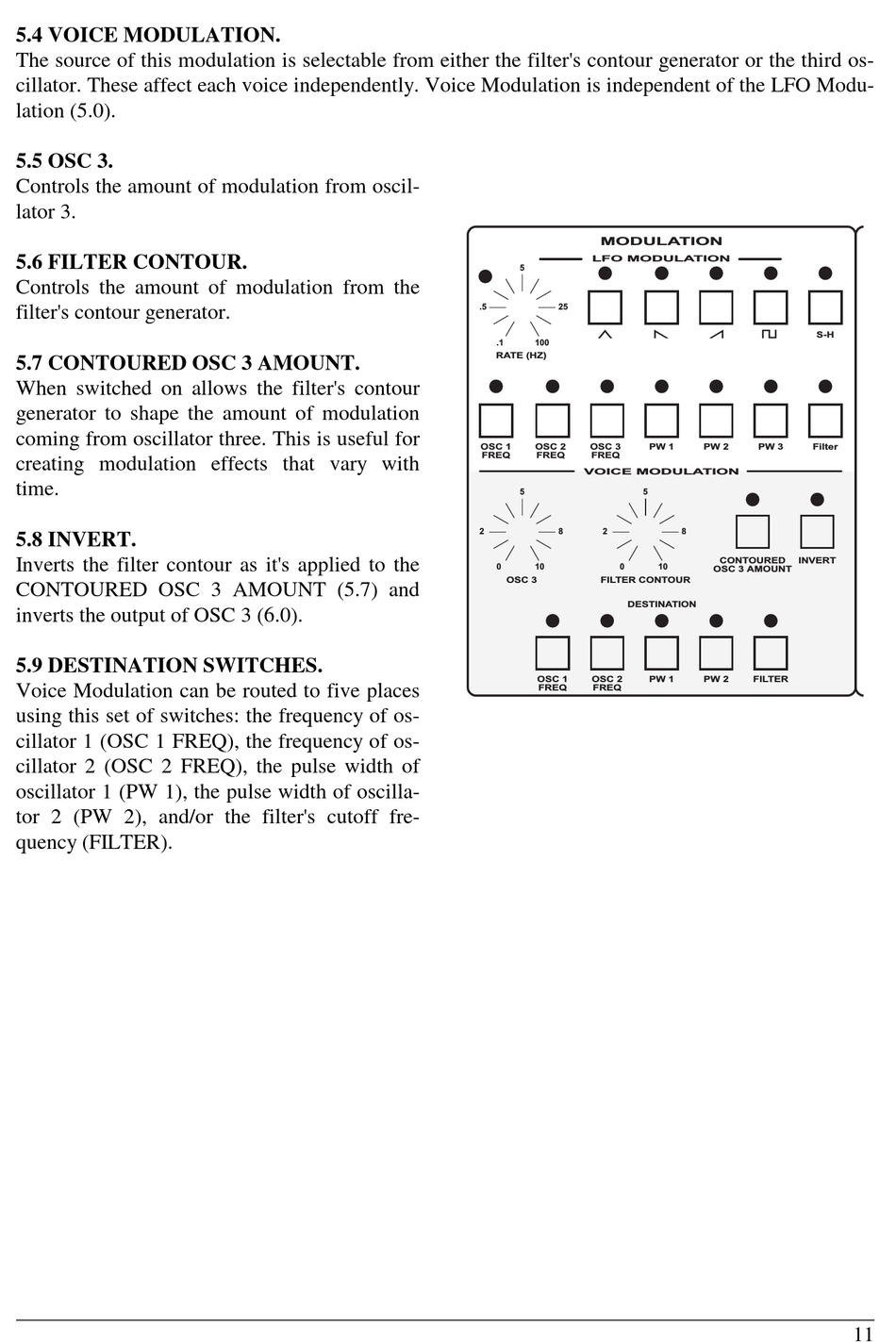

5.4 VOICE MODULATION.
The source of this modulation is selectable from either the filter's contour generator or the third os-
cillator. These affect each voice independently. Voice Modulation is independent of the LFO Modu-
lation (5.0).
5.5 OSC 3.
Controls the amount of modulation from oscil-
lator 3.
5.6 FILTER CONTOUR.
Controls the amount of modulation from the
filter's contour generator.
5.7 CONTOURED OSC 3 AMOUNT.
When switched on allows the filter's contour
generator to shape the amount of modulation
coming from oscillator three. This is useful for
creating modulation effects that vary with
time.
5.8 INVERT.
Inverts the filter contour as it's applied to the
CONTOURED OSC 3 AMOUNT (5.7) and
inverts the output of OSC 3 (6.0).
5.9 DESTINATION SWITCHES.
Voice Modulation can be routed to five places
using this set of switches: the frequency of os-
cillator 1 (OSC 1 FREQ), the frequency of os-
cillator 2 (OSC 2 FREQ), the pulse width of
oscillator 1 (PW 1), the pulse width of oscilla-
tor 2 (PW 2), and/or the filter's cutoff fre-
quency (FILTER).
MODULATION
LFO MODULATION
5
.5 25
¤
.1 100
RATE (HZ)
OSC 1 OSC 2 OSC 3
FREQ FREQ FREQ
VOICE MODULATION
5 5
2 8 2
0 10 0
OSC 3 FILTER CONTOUR
DESTINATION
OSC 1 OSC 2
FREQ FREQ
‡ † •
S-H
PW 1 PW 2 PW 3 Filter
8
CONTOURED INVERT
10
OSC 3 AMOUNT
PW 1 PW 2 FILTER
11
