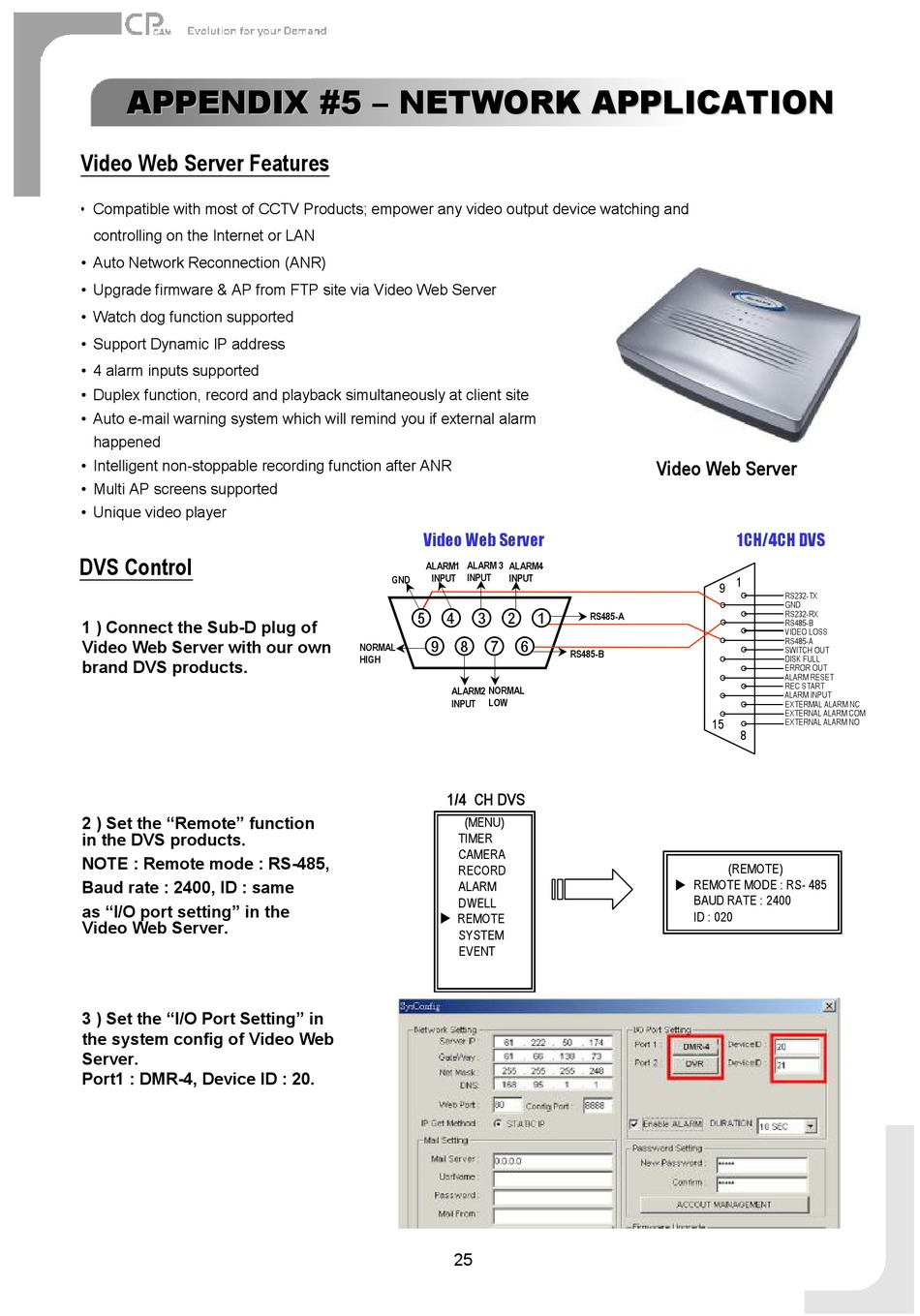

APPENDIX #5
APPENDIX #5
Video Web Server Features
• Compatible with most of CCTV Products; empower any video output device watching and
controlling on the Internet or LAN
• Auto Network Reconnection (ANR)
• Upgrade firmware & AP from FTP site via Video Web Server
• Watch dog function supported
• Support Dynamic IP address
• 4 alarm inputs supported
• Duplex function, record and playback simultaneously at client site
• Auto e-mail warning system which will remind you if external alarm
happened
• Intelligent non-stoppable recording function after ANR
• Multi AP screens supported
• Unique video player
DVS Control
1 ) Connect the Sub-D plug of
Video Web Server with our own
brand DVS products.
2 ) Set the "Remote" function
in the DVS products.
NOTE : Remote mode : RS-485,
Baud rate : 2400, ID : same
as "I/O port setting" in the
Video Web Server.
3 ) Set the "I/O Port Setting" in
the system config of Video Web
Server.
Port1 : DMR-4, Device ID : 20.
– NETWORK APPLICATION
– NETWORK APPLICATION
Video Web Server
ALARM1 ALARM 3 ALARM4
INPUT
INPUT INPUT
GND
⑤ ④ ③ ② ①
⑨ ⑧ ⑦ ⑥
NORMAL
HIGH
NORMAL
ALARM2
INPUT LOW
1/4 CH DVS
(MENU)
TIMER
CAMERA
RECORD
ALARM
DWELL
u REMOTE
SYSTEM
EVENT
25
Video Web Server
1CH/4CH DVS
1
9
RS485-A
RS485-B
15
8
(REMOTE)
REMOTE MODE : RS- 485
u
BAUD RATE : 2400
ID : 020
RS232-TX
GND
RS232-RX
RS485-B
VIDEO LOSS
RS485-A
SWITCH OUT
DISK FULL
ERROR OUT
ALARM RESET
REC START
ALARM INPUT
EXTERMAL ALARM NC
EXTERNAL ALARM COM
EXTERNAL ALARM NO
