APPENDIX #1
APPENDIX #1
Follow these steps carefully in order to ensure correct installation.
HDD Bracket

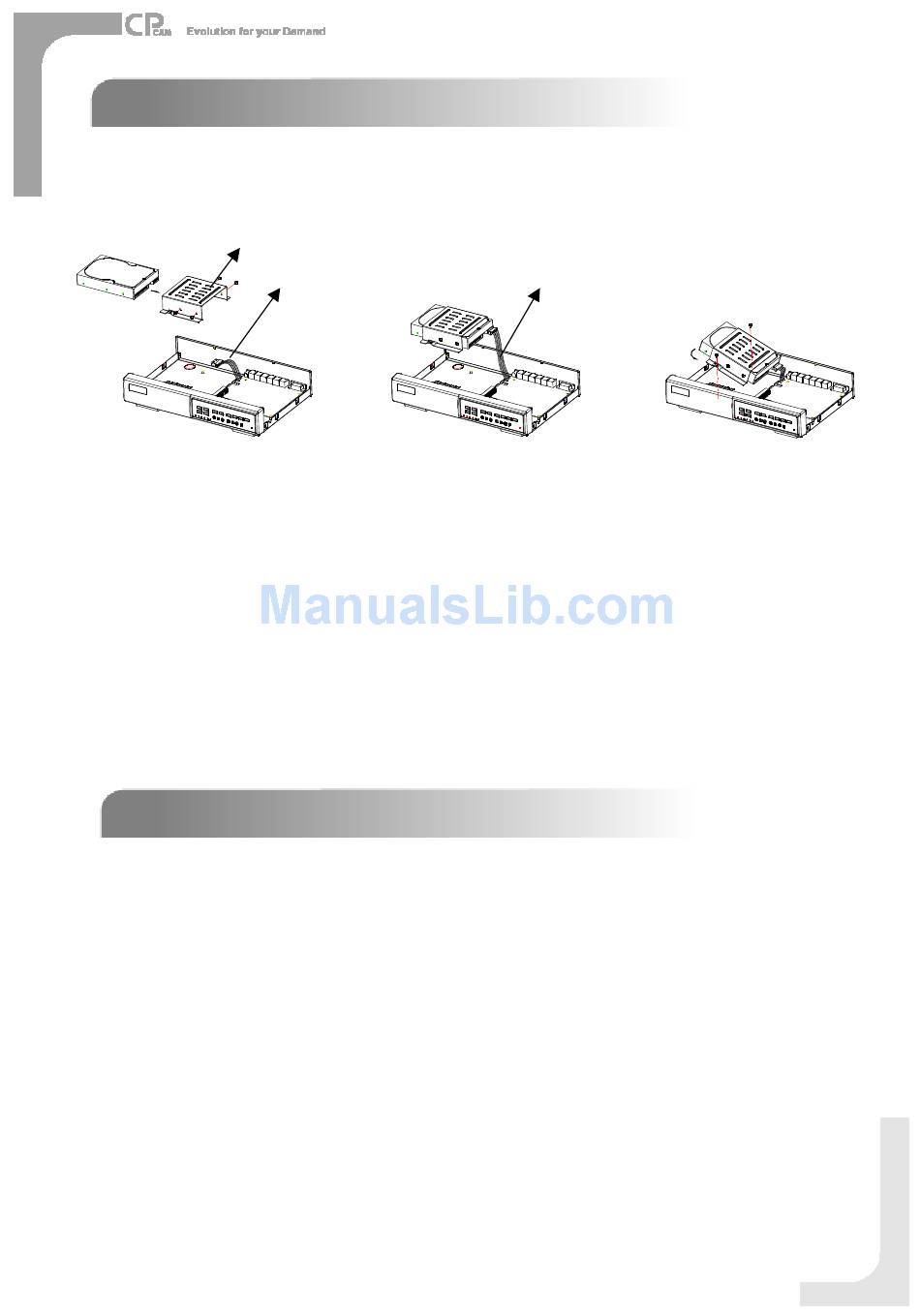

Fig.1
Step 1 Remove the lid and unscrew the screws from HDD bracket module .
Step 2 Insert the HDD into the HDD bracket and screw the four screws.
The bottom side is power side as chart shows (refer to the Fig 1).
Step 3 Connect the HDD power cable to the HDD (refer to the Fig. 2).
Step 4 Attach the HDD connector to the 40-pin pinhead, and screw the HDD and
the DVS machine together (refer to the Fig. 3).
Step 5 Pull the sides of the lid apart slightly and push the lid down.
Note: Do not try to retrieve the HDD data by PC. The video file cannot be read by PC,
operation on PC would damage the FAT table of the hard disk.
APPENDIX #2
APPENDIX #2
Follow these steps carefully in order to ensure correct installation.
Step 1 Remove the lid.
Step 2 Unscrew the screws and take out the HDD from DVS machine carefully
(refer to the Fig 3).
Step 3 Remove the HDD power cable from the HDD (refer to the Fig. 2).
Step 4 Unscrew the four screws connected the hard drive to the bracket and remove the
HDD bracket module. Repeat those steps according to the "Install the HDD" section for
resetting another HDD (refer to the Fig 1).
Step 5 Pull the sides of the lid apart slightly and push the lid down.
Note: When HDD works for a period of time, the surface temperature will be high, please notice it.
– INSTALL THE HDD
– INSTALL THE HDD
HDD Power Cable
– REPLACE THE HDD
– REPLACE THE HDD
21
HDD Power Cable
Fig.2 Fig.3
