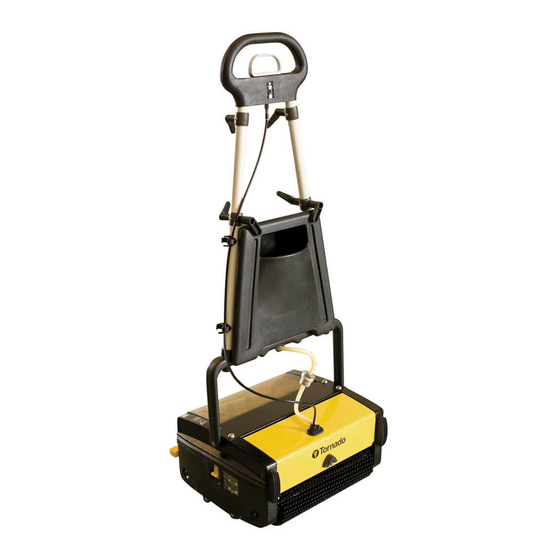

Floor cleaning machine

Advertisement

Quick Links

TORNADO INDUSTRIES, LLC
7401 W. Lawrence Avenue
Chicago, IL 60706
Ph (708) 867-5100
Fax (708) 867-6968
www.tornadovac.com

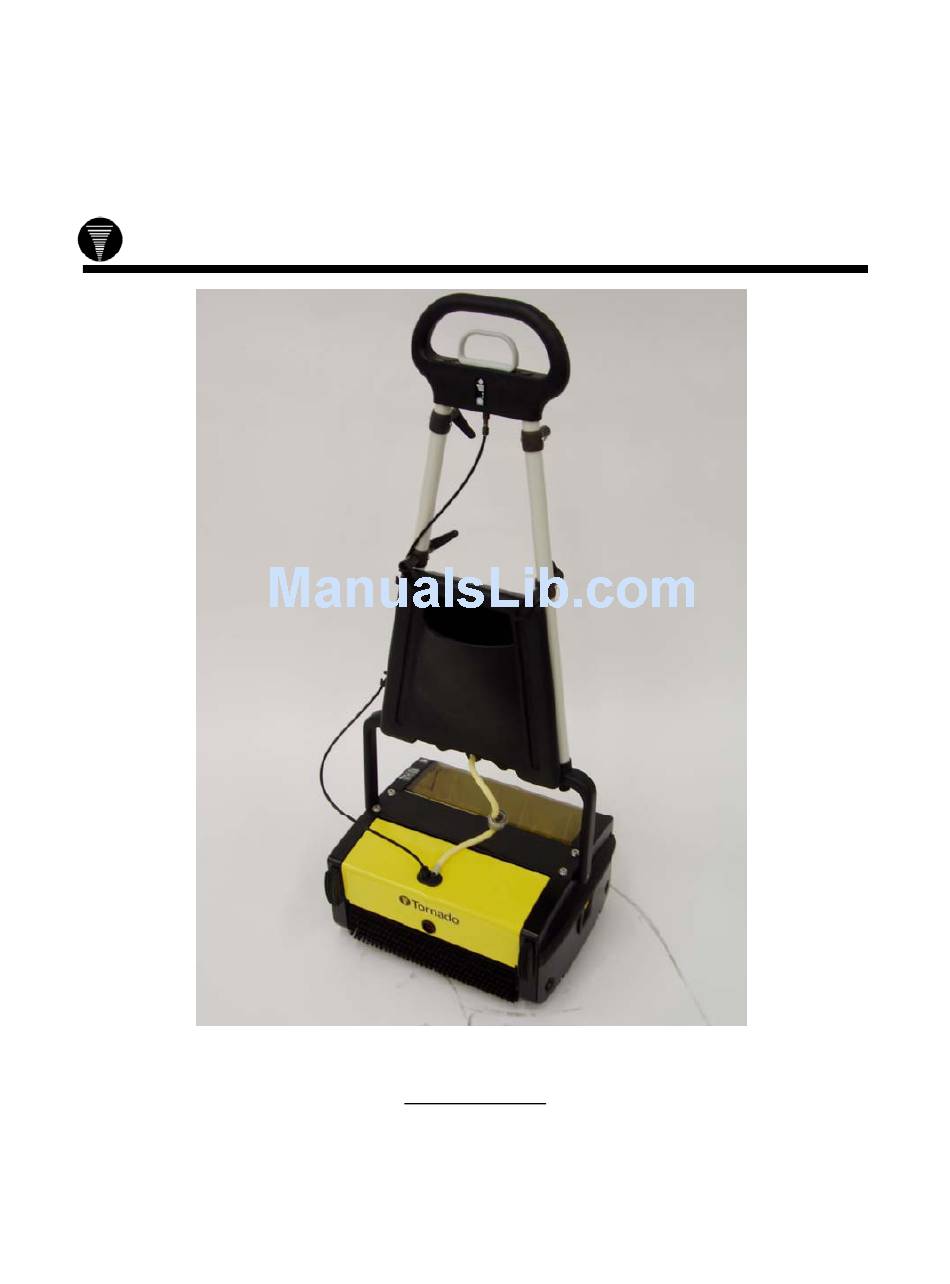

Tornado® Operations & Maintenance Manual
MODEL NO.
99410 BR 13/1MW
L9735Rev_C © Tornado Industries, LLC 2008
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99410 BR 13/1MW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tornado 99410 BR 13/1MW

  • Page 1 TORNADO INDUSTRIES, LLC 7401 W. Lawrence Avenue Chicago, IL 60706 Ph (708) 867-5100 Fax (708) 867-6968 www.tornadovac.com Tornado® Operations & Maintenance Manual MODEL NO. 99410 BR 13/1MW L9735Rev_C © Tornado Industries, LLC 2008 All Rights Reserved...
  • Page 2: Table Of Contents

    Table of Contents Warranty................................. 3 Introduction ..............................4 Important Safety Advice..........................4 Guidelines for the Operator ........................4 Electrical Connection ..........................4 Transporting the Machine........................... 5 Machine Parts ..............................5 How it Works ..............................5 Preparing for Use............................6 Unpack................................ 6 Assembly ..............................
  • Page 3: Warranty

    Warranty...
  • Page 4: Introduction

    Introduction This Tornado floor cleaning machine is designed to be used on smooth, even floors indoors. They can be used on most floor surfaces including carpet, wood, PVC, rubber and stone. We are confident the machines will give years of trouble free service, coupled with ease of use and minimum maintenance.
  • Page 5: Transporting The Machine

    Transporting the Machine Caution: This machine is heavy. Do not attempt to lift the machine without assistance. Incorrect lifting techniques may cause injury. Machine Parts Top Handle Lid Cap Liquid Discharge Control Handle Boot Solution Tank Nozzle Bottom Handle 10. Conveyor Drum Recovery Tank 11.
  • Page 6: Preparing For Use

    Preparing for Use Unpack Bottom Handle Machine Body Pump Housing Solution Tank Top handle & Cable Pull Handle LH & RH Brush Shafts (2) Screws & Washers Cable Retainer 10. Power Cord 11. Recovery Tank 12. Hook 13. Knob Assembly Insert the two tubular handles into the bottom handle and secure them using the knob by tightening lightly.
  • Page 7: Controls

    Controls Transport/Working Mode Control Slide the knob to the TOP position (Working Mode) to operate the machine. Slide the knob to the BOTTOM position (Transport Mode) to move the machine and/or park the machine. The machine will not turn on in this mode. Warning: Keeping the knob in the top position and moving the machine will damage the brushes.
  • Page 8: Operating The Machine

    Operating the Machine Before the Washing Operation Starts Warning: Pre-sweep the floor to remove debris before using the machine. Ensure that the brushes are fitted properly. Fill the solution tank with cleaning liquid. Insert the plug into the electrical outlet. Recommended Washing Sequence Start the machine by pressing the pedal and pull the handle back.
  • Page 9: Cleaning The Machine

    Cleaning the Machine Warning: Switch off the machine and unplug the electric supply before performing any cleaning operations. Move the Transport/Working Mode control to the BOTTOM (Transport) position to raise the brushes. Unplug the machine and wrap the supply cord around the hooks on the handle.
  • Page 10: Accessories

    Accessories Transport Trolley The simply fitted trolley provides ease in movement when transporting the machine. Using the Trolley Empty all liquid from the machine. With the machine handle in the upright position place the trolley in the middle alongside the machine. Hold the machine firmly, strap the velcro with the machine to fix the transporter.
  • Page 11: Technical Specification

    Technical Specification Cleaning Width 13.5 Inches Body Height 8.5 Inches 44 Inches Handle Height 17.5 Inches Width 15 Inches Length Weight 55 lbs. Motor Power 1 HP Brush Speed @ 110V 60Hz 820 RPM 1 Gallon Solution Tank Capacity 69dB Noise Lever Accessories Item...
