Page 1: Table Of Contents

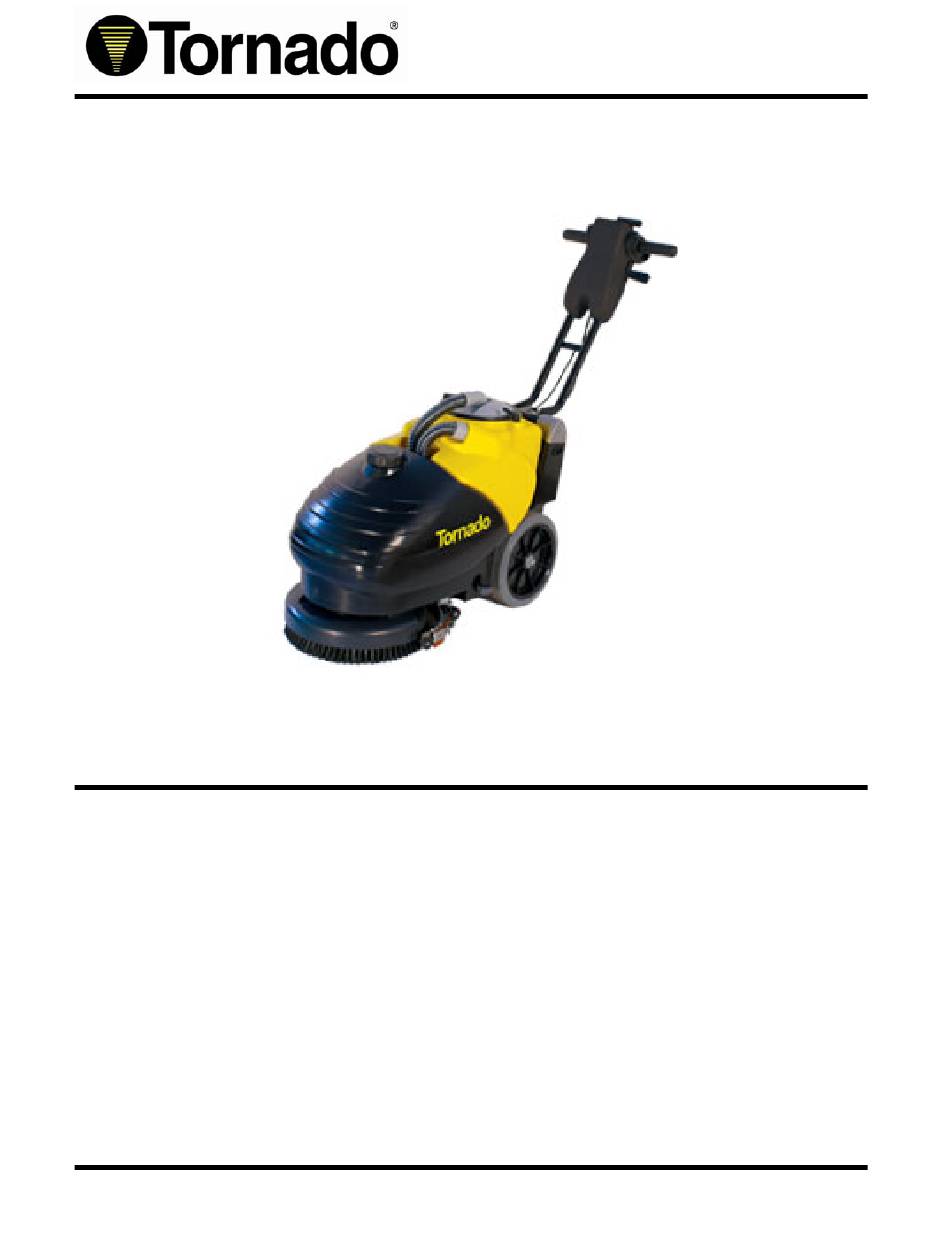

ExSELLerate™ Series Dealer Training Guide BD 14/4 At a Glance Specifications Page 2 Introduction Page 3 Overview Page 4 Features and Benefits Page 5 Key Features Page 6 Operation Tips Page 8 Narrative Bid Specifications Page 14 Recommended Maintenance Page 15 Recommended Stocking Parts List Page 16 Accessory Parts List... -
Page 2: Specifications
Specifications Machine Dimensions BD 14/4 Model Number 99414 28 in x 15 in x 22 in L X W X H 965 mm x 381 mm x 559 mm Net Weight (w/o batteries) 132 lbs. / 60 kg. Shipping Weight 185 lbs. -
Page 3: Introduction
Target Market In-house facility managers and building service contractors will appreciate the features of Tornado’s BD 14/4 compact automatic scrubber, designed for daily or more aggressive cleaning. This unit is perfect for the following environments: ... -
Page 4: Overview
Overview 1. Squeegee Control Lever 8. Solution Tank Lid 15. Recovery Tank 2. Brush / Solution Control Lever 9. Solution Tank 16. Recovery Tank Lid 3. Main On / Off Button 10. Squeegee Blade Assembly 4. Brush Activation Button 11. Squeegee Blade 5. -
Page 5: Features And Benefits
Features & Benefits The integrated, parabolic squeegee system is located one (1) inch behind the disc brush. Squeegee Blade Solution is contained with the cleaning path and is instantly recovered, even around 180 degree turns. Comes standard with a disc brush, but an optional disc holder is Brush or pad operation available for use with disc pads. -
Page 6: Key Features
Key Features 1. Compact Low Profile The BD 14/4 measures only 28 in (L) x 15 in (W) x 22 in (H). The compact design allows the operator to clean small, hard- to-reach areas replacing mop and bucket cleaning. 2. Simple Operation To operate the unit press the brush, vacuum and solution buttons. - Page 7 Key Features 7. Adjustable Handle The handle can be adjusted to fit the height of the operator. It will also fold down on top of the recovery tank. This makes cleaning comfortable no matter the size of the operator. 5. Compact Storage The BD 14/4 can be stored in the upright position with the handle folded.
-
Page 8: Operation Tips
Operation Tips When you receive the unit, remove the recovery tank and ensure the batteries are connected as shown above. The handle can be adjusted by lifting up on the handle adjustment lever. The handle can also collapse to rest over the recovery tank for storage purposes. - Page 9 Operation Tips Recovery Tank Solution Tank The amount of solution being used can be adjusted at the front of the unit, just above the brush deck. Tip: If water is not being dispensed, ensure the solution level control is in the open position. This is done by pulling the lever to the right.
- Page 10 Operation Tips The BD 14/4 is activated by pressing four buttons. Solution Main Vacuum Brush Activation On / Off Activation Activation Button Button Button Button The squeegee blade is raised and lowered with the squeegee release lever on the handle. ®...
- Page 11 Operation Tips Pressing Forward Pulling Backward The brush is activated by pressing forward or pulling back on the brush activation lever. The direction you pull or push the lever has no bearing on the way the brush spins. The brush will always spin in a clockwise direction. To remove the brush simply turn it counter clockwise and pull the brush off.
- Page 12 Operation Tips Step 2 Step 1 Step 3 To gain access to the squeegee blade, first remove the squeegee assembly. To do this, simply turn the two inner knobs counter clockwise and remove the squeegee hose. Second, release the catch at the end of the retainer strip and unhook it from the squeegee assembly.
- Page 13 Operation Tips To charge the unit after operation, simply attach the charging chord and plug it into a standard wall outlet. The handle on the unit folds on top of the recovery tank and the unit can be set on its back for storage. ®...
-
Page 14: Narrative Bid Specifications
Narrative Bid Specifications Tornado BD 14/4 Compact Automatic Scrubber, Model: 99414 Specified Unit The specified unit shall be a 4 gallon recovery tank, 3.5 gallon solution tank and be pow- ered by sealed, maintenance free, 24 V AGM batteries. The machine should have a low- profile design feature to increase operator visibility when cleaning. -
Page 15: Recommended Maintenance
Recommended Maintenance Frequency Task Recover Tank Cleaning Daily Solution Tank Cleaning Daily Suction Filter Cleaning Daily Brush Cleaning Daily Squeegee Cleaning Daily Vacuum Hose Cleaning Once a week ® ExSELLerate Sales Training Series │ BD 14/4... -
Page 16: Recommended Stocking Parts List
Recommended Stocking Parts List Part Number Description V8210010 SQUEEGEE ASSEMBLY 20110070 FLOAT 21002010 BRUSH MOUNTING FLANGE 21002050 BRUSH COVER 21005060 SQUEEGEE LIFT CABLE 21009010 HANDLE 21009060 HANDLE CABLE 21009070 HANDLE LOCK GEAR 21010010 COUPLER FOR HOSE 21010020 BENT COUPLER FOR HOSE Ø 29 21010030 FILTER CAP 21010040... -
Page 17: Accessory Parts List
Accessories Parts List Part Number Description 48410020 Standard Rear Squeegee 48410010 Standard Front Squeegee 48903020 Standard Scrub Brush 48903030 Poly Scrub Brush 48803030 13” Pad Holder ® ExSELLerate Sales Training Series │ BD 14/4... -
Page 18: Notes
Notes ® ExSELLerate Sales Training Series │ BD 14/4... -
Page 19: Green Cleaning
Vacuum cleaners including uprights, backpacks and canisters can release dust 3. IAQ Enhancement: and debris into the air if they are not designed with advanced infiltration systems. That’s why Tornado has developed a comprehensive product family of high-filtration vacuums with true HEPA filtration to minimize dust and exhaust from escaping the vacuum. - Page 20 Copyright © 2012. Tornado Industries. ALL RIGHTS RESERVED. Use of text, copy, or distribution of this document is protected by law. 1.800.VACUUMS www.tornadovac.com...
