Operations & Maintenance Manual
For Commercial Use Only
Form No. L8636-2 BA 07/20 ©Tornado Industries, LLC. All rights reserved
*Always follow manufacturer instructions*
230V PRO SPOTTER
MODEL NO: 98636
Save These Instructions
*AAA Rent-All 225-291-1356*
TORNADO INDUSTRIES, LLC
3101 WICHITA COURT
FORT WORTH, TX 76140
PHONE 800-VACUUMS
FAX 817-551-0719
WWW.TORNADOVAC.COM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tornado PRO SPOTTER 98636
Summary of Contents for Tornado PRO SPOTTER 98636

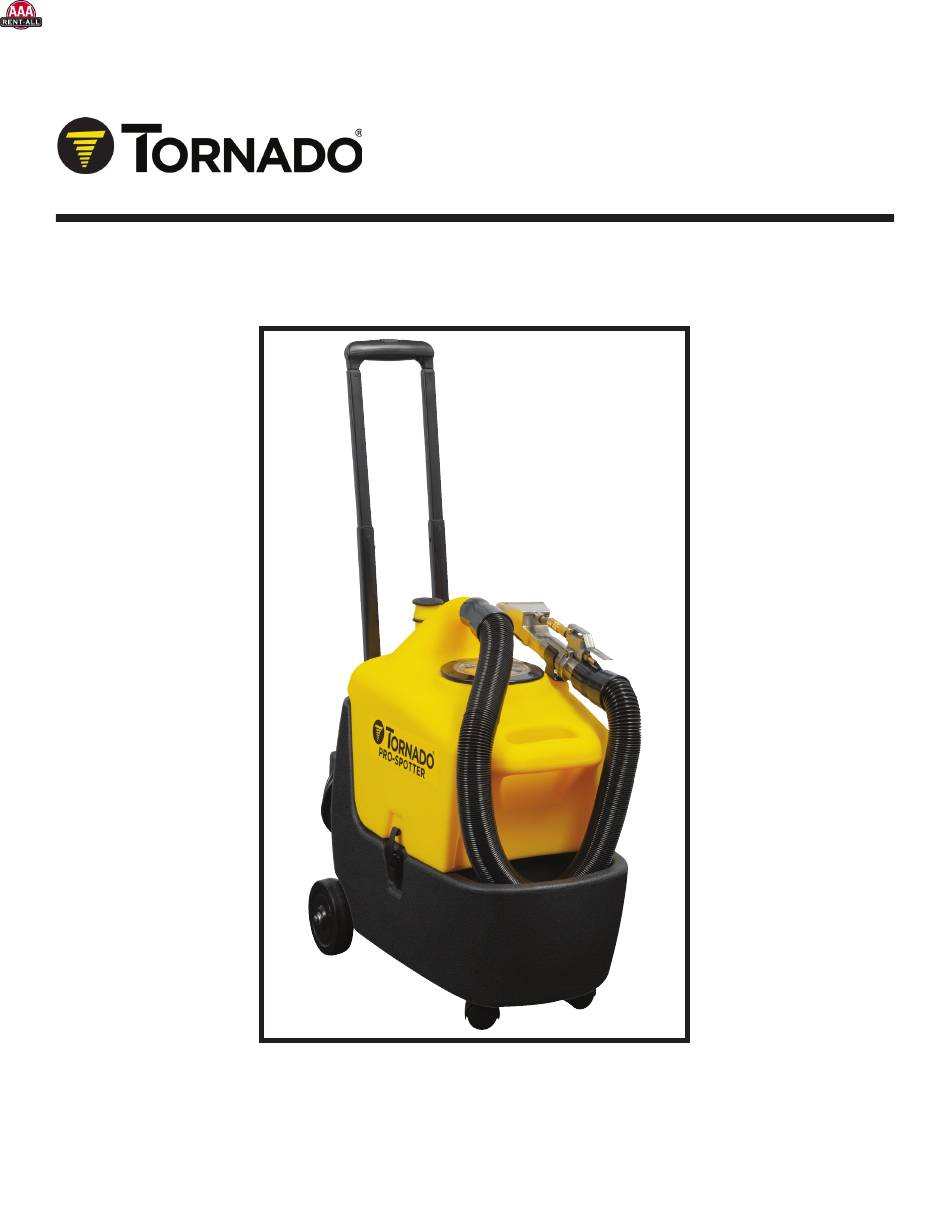

- Page 1 FORT WORTH, TX 76140 PHONE 800-VACUUMS FAX 817-551-0719 WWW.TORNADOVAC.COM Operations & Maintenance Manual For Commercial Use Only 230V PRO SPOTTER MODEL NO: 98636 Form No. L8636-2 BA 07/20 ©Tornado Industries, LLC. All rights reserved Save These Instructions *AAA Rent-All 225-291-1356*...
- Page 2 *Always follow manufacturer instructions* NOTES Within 30 days, to activate the warranty, go to; https://tornadovac.com/services/warranty-registration-form.aspx For warranty information go to www.tornadovac.com *AAA Rent-All 225-291-1356*...
-
Page 3: Important Safety Instructions
Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries. -
Page 4: Grounding Instructions
*Always follow manufacturer instructions* • Do not use the machine for totally dry vacuuming. This machine is not fitted with a fine dust filter. • Do not use citrus-based cleaners in this machine. • Do not use cleaning chemicals in this machine except those recommended for commercial extraction equipment. - Page 5 *Always follow manufacturer instructions* OPERATING INSTRUCTIONS Filling the Pro Spotter • Unplug the unit. • Disconnect the solution and recovery tanks. • Remove the upper recovery tank. • Add water and/or chemicals to the lower solution tank. Fill only to the fill line indicated on the label on the inside of the solution tank.
-
Page 6: Troubleshooting
*Always follow manufacturer instructions* Solution Hose Connection 3-Way Switch TROUBLESHOOTING Possible Cause Solution Problem Pump is not primed. Depress lever on hand tool to No Spray release pressure. Solution tank level is low. Refill Solution tank.* Clogged filter. Clean the screen filter on the hose in the solution tank. - Page 7 *Always follow manufacturer instructions* *AAA Rent-All 225-291-1356*...
- Page 8 *Always follow manufacturer instructions* Part No. Description X8295 Screw, #8 x 3/4” PX103A Screw-In Lid 6” w/Black Ring X9061 Shut Off Disk X9087 Washer X9088 Screw 8-18 x 1/2” PX103AG Lid Gasket X9518 Deflector X9062 Float X9082 Pipe 1-1/2 x 6-1/2” X9076 Bulkhead Fitting 1-1/2”...
- Page 9 *Always follow manufacturer instructions* Part No. Description M1401-AUS Cord 20M w/Australian Plug (98636-AUS) 71912A Cord 14/3 35’ w/ Euro Plug (98636-EU) 19565 Screw #8 x 3/8” 7CZ001 Vacuum Hose 2” PX215 Hose Clamp FJ5082-2 Pump 230V PX204 Pump Mount PX214 Nylon Fitting 90 Deg.
- Page 10 *Always follow manufacturer instructions* Form No. L8636-2 BA 07/20 *AAA Rent-All 225-291-1356*...
