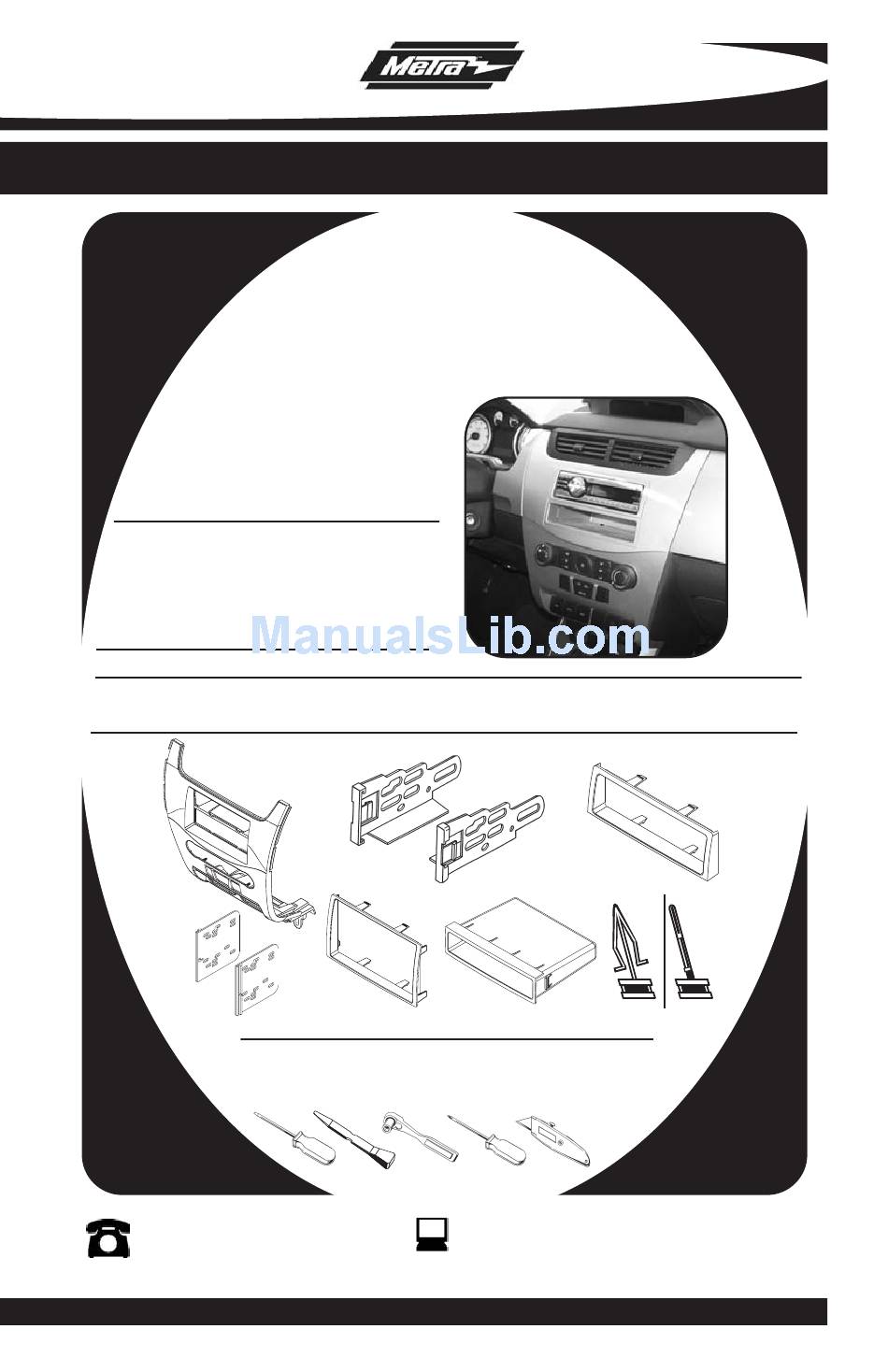

INSTALLATION INSTRUCTIONS FOR PART 99-5816
99-5816
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted To Match Factory Dash
KIT COMPONENTS

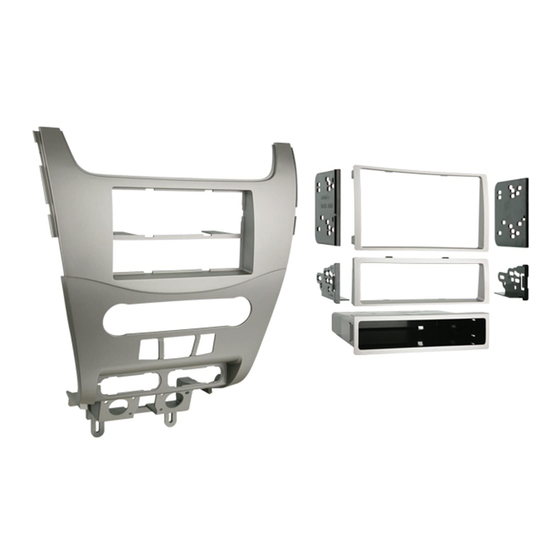

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket • G) (2) Top Clips and (4) Middle Radio Housing Clips
A
D
1-800-221-0932
© COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION
APPLICATIONS
FORD Focus
2008-2009
B
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set • Cutting Tool
C
F
www.metraonline.com
SIDE VIEW
SIDE VIEW
G
(2) TOP CLIPS
(4) MIDDLE CLIPS
