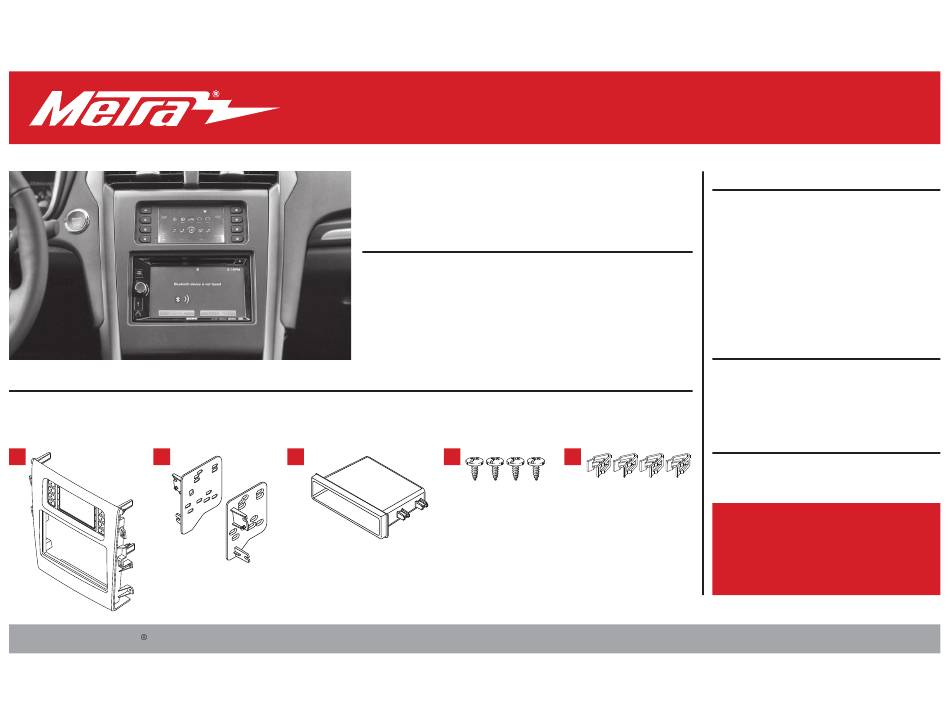

KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws • E) (4) Panel clips
• F) HVAC interface and wiring harness (not shown) • G) Antenna adapter (not shown)
A
B
The World's best kits.
Ford Fusion
2013-2017
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Integrated controls for info center
• Painted black
C
D
metraonline.com
E
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-5841B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation ............................5-14
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and
harness included
Antenna Adapter: Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • Cutting tool
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 8/23/18 INST99-5841B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-5841B
Summary of Contents for Metra Electronics 99-5841B
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. The World’s best kits. metraonline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 8/23/18 INST99-5841B...
-
Page 2: Dash Disassembly
DASH DISASSEMBLY For 2013-2016 models only: All models: 1. Unclip the trim from around the shifter. 4. Unclip the trim surrounding the center (Figure A) dash. (Figure C) 2. Unclip the U-shaped trim from the rear Ensure that the vehicle is completely off of the shifter. -
Page 3: Kit Preparation
KIT PREPARATION 1. Cut and remove the shaded area from the sub-dash to allow clearance for the aftermarket radio. (Figure A) 2. Attach the (4) panel clips provided to the radio trim panel. (Figure B) Continue to Kit Assembly Remove shaded area (Figure A) (Figure B) REV. -
Page 4: Iso Din Radio Provision With Pocket
KIT ASSEMBLY ISO DIN radio provision with pocket ISO DDIN radio provision 1. Attach the pocket to the radio brackets 1. Attach the brackets to the radio using using the (4) #8 x 3/8” Phillips screws the screws supplied with the radio. provided. -
Page 5: Table Of Contents
AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power (12-volt 10-amp) Connections For models without a Sony amplifier ..................6 • Retains R.A.P. (retained accessory power) For models with a Sony amplifier .................... 7 • Provides NAV outputs (parking brake, reverse, speed sense) 3.5mm jack steering wheel control retention ................. -
Page 6: Connections
CONNECTIONS Attention! This interface will work with models that are either Sony amplified, or non-amplified. The following (3) wires are only for multimedia/navigation radios that require these wires. Please follow the instructions carefully for your model vehicle. Failure to do so will result in •... -
Page 7: For Models With A Sony Amplifier
CONNECTIONS (CONT.) The following (3) wires are only for multimedia/navigation radios that require these wires. Attention! This interface will work with models that are either Sony amplified, or non-amplified. Please follow the instructions carefully for your model vehicle. Failure to do so will result in •... -
Page 8: 3.5Mm Jack Steering Wheel Control Retention
CONNECTIONS (CONT.) 3.5mm jack steering wheel control retention: Backup camera harness: • The 3.5mm jack is to be used to retain audio controls on the steering wheel control. For models with a 4.2-inch display screen: For the radios listed below, connect the included female 3.5mm connector with stripped leads, to •... -
Page 9: Installation
INSTALLATION It is highly advisable to read the following steps beforehand, to ensure a clear understanding of HVAC interface what is to be expected. The following steps must be done in the order that they are numbered. 6. Connect the HVAC interface harness into the HVAC interface, and then to the wiring harnesses in the vehicle. -
Page 10: Programming
PROGRAMMING FINAL ASSEMBLY Attention! If the interface loses power for any reason, the following steps will need to be 1. Secure the completed assembly into the dash using the factory hardware removed in step 7 performed again. of dash disassembly. Only use the upper mounting tabs. 2. -
Page 11: Touchscreen Display Operation
TOUCHSCREEN DISPLAY OPERATION Climate Control screen • This is the climate control screen which will be displayed on the touchscreen display. This is considered the main screen. • The upper left tab with (3) arrows will take you to the Heated/Cooled* seats screen, and the Heated Steering* screen, if applicable. -
Page 12: Touchscreen Display Operation
TOUCHSCREEN DISPLAY OPERATION (CONT.) Configuration Settings screen • Steering Wheel Controls • Remap Buttons – For remapping the steering wheel control buttons • Dual Assign – For dual assigning the steering wheel control buttons (long button press) • Select Radio – For auto detecting the radio, or changing the radio type •... -
Page 13: Steering Wheel Control Settings
STEERING WHEEL CONTROL SETTINGS Remap Buttons Dual Assign • The interface has the ability to change the button assignment for the steering wheel • The interface has the capability to assign two functions to a single button, except control audio buttons, except Volume-Up and Volume-Down. Follow the prompts on the Volume-Up and Volume-Down. -
Page 14: Troubleshooting
STEERING WHEEL CONTROL SETTINGS (CONT.) Select Radio * Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm jack is connected to the correct steering wheel jack/wire in the radio. - Page 15 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s best kits. metraonline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 8/23/18 INST99-5841B...
