  • Page 1: User Manual

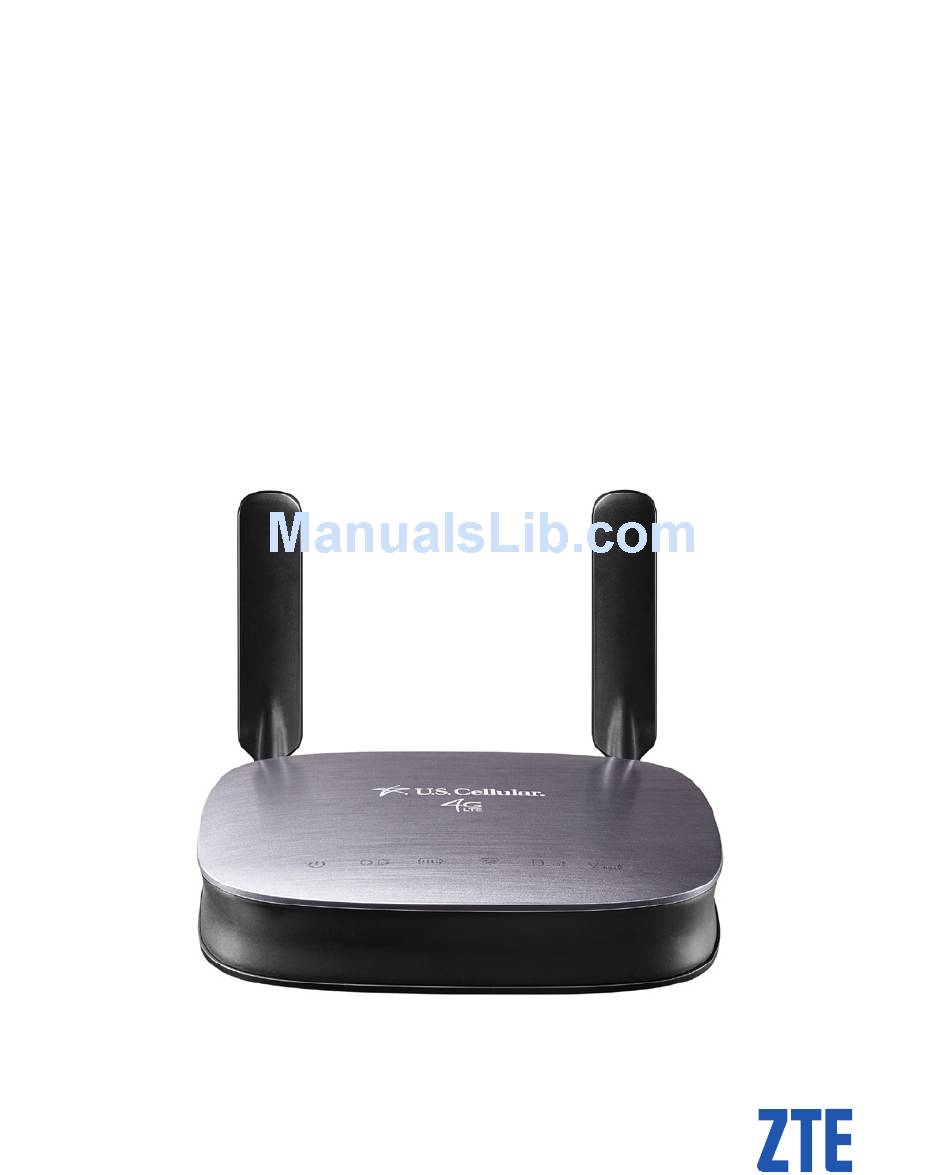

    4G LTE™ Router with Voice User Manual ® U.S. Cellular Customer Service 1-888-944-9400...

  • Page 2: Legal Information

    ZTE Corporation. Notice The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
  • Page 3 4G LTE service provided through King Street Wireless, a partner of U.S. Cellular. LTE is a trademark of ETSI. ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.
  • Page 4 SIM Card Limited Warranty Subject to the exclusions contained below, United States Cellular Corporation (“U.S. Cellular”) warrants to the original purchaser (“You” or “Your”) of the handset with which the 4G LTE™ SIM Card was provided that the 4G LTE SIM Card will be free from defects in material and workmanship for a period of one (1) year from the date You purchased the handset (the “Warranty Period”).
  • Page 5 REPLACEMENT OF THE 4G LTE SIM CARD AS PROVIDED HEREIN IS YOUR EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF TITLE, FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, NON-INFRINGEMENT OR ARISING FROM COURSE OF DEALING OR USAGE OF TRADE.
  • Page 6 SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU. No agent, employee, dealer, retailer, representative or reseller is authorized to modify or extend the terms of this Limited Warranty.

  • Page 7: Table Of Contents

    Contents Getting to Know Your Device ....... 8 Appearance ..............8 Device Installation ..........10 Before You Begin ............10 Installing the Battery and SIM Card ......10 Indicators ..............12 Connecting to your 4G LTE™ Router with Voice .. 14 Switching on Your Router ........... 15 Power Supply .............16 About 4G LTE™...
  • Page 8 Answering a Call ............21 Call Forwarding ............22 Call Waiting ..............24 Three-Way Calling .............24 Emergency Call ............25 Voicemail ..............25 Web Portal Configuration ........26 Settings ..............32 Network Settings............32 Wi-Fi Settings .............36 Device Settings ............41 Firewall ...............42 Router Settings ............49 Warning and Notice ..........50 Radio Frequency (RF) Exposure ......

  • Page 9: Getting To Know Your Device

    Getting to Know Your Device Appearance...
  • Page 10 1. 4G LTE™ SIM Insert your 4G LTE SIM Card. card slot 2. Reset button Reset your router. 3. External antenna To get strength signal. connector This button is used to start/end the Wi-Fi Protected Setup authentication process and enable/disable the Wi-Fi function.

  • Page 11: Device Installation

    Device Installation Before You Begin You can charge your router by using an adapter. • Insert the charger lead carefully with the plug arrow facing the bottom of the router. • Do not use excessive force to insert the plug. •...
  • Page 12 2. Install the battery. 3. Install the 4G LTE™ SIM Card. IMPORTANT: Your device only supports the 4G LTE SIM card. To avoid damaging the device, please use the card that comes installed or included in the box of the router.

  • Page 13: Indicators

    Indicators Indicator State Description Power Green steady AC power present No AC power Voicemail Green blinking New voicemail waiting No new voicemail More than 50% discharging Green steady (charger not present, or fully charged) More than 50% charging Green blinking (charger present) 20%-50% discharging Yellow steady...
  • Page 14 Green steady Wi-Fi on Wi-Fi Blinking Active data connection Wi-Fi off Connected to the LTE Green steady network Connected to CDMA 1x or Yellow steady Data EVDO Network Blinking Roaming No service, limited service, Red steady searching, no 4G LTE™ SIM card or other abnormal status Green steady Strong (3, 4 &...

  • Page 15: Connecting To Your 4G Lte™ Router With Voice

    Voice Please refer to the following picture for connecting to your 4G LTE Router with Voice. If you want to use the mobile network to connect to the Internet or use your land line phone, you need to insert your 4G LTE SIM card first.

  • Page 16: Switching On Your Router

    Switching on Your Router 1. Press and hold the Power Key to get started. Make sure that the power indicator is on. NOTE: Do not put anything on top of the router. Do not lay two routers on top of each other during usage. 2.

  • Page 17: Power Supply

    Power Supply For normal operation, connect the router to the external power adapter. When there is no available external power supply, the router can still work with the battery installed. NOTE: Please charge battery completely before using. About 4G LTE™ SIM Card Avoid handling the 4G LTE SIM card unnecessarily.

  • Page 18: Connecting To Your Device

    Connecting to Your Device Via Wi-Fi 1. Power on your device. It will take 1-2 minutes to initialize. 2. Use your Wi-Fi application on the client to search for the available wireless networks.
  • Page 19 3. Select the SSID of your device, and then click Connect. NOTE: SSID is printed on the device label beneath the battery door. 4. Input the password, and then click Connect. NOTE: The password for the Wi-Fi connection is on the label of your device located under the battery cover.
  • Page 20 5. The client will connect to your device. Via Ethernet port 1. Connect the Ethernet cable to the LAN port and your computer.

  • Page 21: Wps Functionality

    2. Your computer will acquire network connection via Router with Voice and get connected to the internet automatically. WPS Functionality Your device supports WPS functionality. You can use this function to connect the client to your device. 1. Power on your device, and enable the Wi-Fi function on your device.

  • Page 22: Voice Function

    Voice Function Making a Call To make a call: 1. Pick up the handset. 2. Key in the telephone number. 3. You can either press the # key on the telephone to send the call, or wait 4-8 seconds for the call to be connected automatically.

  • Page 23: Call Forwarding

    Call Forwarding With Call Forwarding you can forward the calls to another phone number. Immediate Call Forwarding To enable Immediate Call Forwarding: Pick up the handset and press *72 phone number#. • Tip: Enter the phone number where you want calls to be forwarded.
  • Page 24 • Hang up your telephone or return the phone to its base. To deactivate Busy Call Forwarding: • Pick up the handset and press *900#. • You will hear a confirmation tone. • Hang up your telephone or return the phone to its base. No Answer Call Forwarding To enable No Answer Call Forwarding: •...

  • Page 25: Call Waiting

    Call Waiting If you subscribe the call waiting service with your local telephone service provider, you will hear a beep tone if someone calls while you are already on a call. Press FLASH on the handset to put your current call on hold and take the new call.

  • Page 26: Emergency Call

    Emergency Call When making an emergency call, keep the device and phone power on and in service area. Pick up the phone receiver and key in the emergency number, wait for 3 seconds to send automatically. Voicemail The new voicemail indicator will light up when there is a new voicemail.

  • Page 27: Web Portal Configuration

    Web Portal Configuration To access Web Portal: Login to the Web Portal Configuration Page. 1) Launch an Internet browser and enter http://192.168.1.1 or http://uscc.router in the address bar. The login page appears.
  • Page 28 2) Input the password (for the default password, please check the label on your router), and then click Login to access the Web Portal Configuration Page. Now, you can customize your 4G LTE™ Router with Voice, such as the configuration on Internet, network selection, password and security settings, data usage, etc.
  • Page 29 2. Set the detailed parameters for the operation mode. • For Bridge mode You can use Wi-Fi to connect to your router, and you need to connect the WAN to the LAN port via Ethernet cable and set your PC or other Wi-Fi clients to obtain the IP address automatically.
  • Page 30 • For Cable Broadband mode Please select PPPoE, set the PPPoE parameters, and then click Connect. NOTE: Your service provider gives you the User Name and Password.
  • Page 31 Please select Static, input all the parameters, and then click Apply. NOTE: Your service provider gives you the static address information. Please select DHCP, and then click Apply.
  • Page 32 NOTE: Your service provider does not give you any parameters. • For Wireless Broadband mode Please select the Wireless Broadband Mode, and click Apply. On this mode, you need to use your 4G LTE™ SIM card to connect to your Internet service. You can change dial-up settings, network selection and APN.

  • Page 33: Settings

    Settings Do not modify any settings unless instructed by your service provider. Network Settings • Dial-up Settings After the client is connected to your router successfully, you can access the Internet in the Automatic or Manual mode. The default mode is Automatic. Mode Operations Your device is automatically connected to...
  • Page 34 • Network Selection Select Settings > Network Settings > Network Selection, you can change the network selection mode as follows: LTE/CDMA mode: Default 4G LTE™ preferred network. 3G auto: CDMA EVDO/1X Hybrid mode.
  • Page 35 • To connect to the Internet, you can use the default Access Point Names (APNs) in Auto/Manual mode. Select Settings > Network Settings > APN. Auto: The device will configure automatically according to MCC\MNC. Manual (Default): You can set APN by yourself.
  • Page 36 Create a new APN by selecting the Manual mode, then Add New.

  • Page 37: Wi-Fi Settings

    Wi-Fi Settings • Basic settings Select Settings > Wi-Fi Settings > 2.4GHz / 5.0GHz, and the wireless network’s basic parameters are shown in the following figure: 2.4GHz SSID Switch: Enable or disable 2.4GHz SSID function. Network Name(SSID) : Service Set Identifier (SSID). Enter a string less than 32 characters as the name...
  • Page 38 for your wireless local area network (WLAN). Broadcast Network Name(SSID): Disable or Enable (Default) this function. If Enable is selected, the router broadcasts the SSID, and other devices can detect and connect to it. If Disable is selected, the other devices cannot detect the router. You can only connect to the router by manual setting.
  • Page 39 If the authentication type is WPA2(AES)-PSK or WPA-PSK/WPA2-PSK, the bottom part of the configuration page displays WPA parameters. Max Station Number: Set the maximum number of wireless networks connecting to the router. • Advanced settings Select Settings > Wi-Fi Settings > 2.4GHz / 5.0GHz, and you can set the band selection, network mode, channel bandwidth and etc.

  • Page 40: Black List

    • Black List Select Settings > Wi-Fi Settings > Black List, to enable or disable black list. You can enable the black list so that the devices in the black list are not allowed to connect to this router.
  • Page 41 • Select Settings > Wi-Fi Settings > WPS, You can enable Wi-Fi Protected Setup(WPS) by PIN(PIN code) or PBC(push-button) mode, the two modes are described below: PIN: Set the client's PIN code in client PIN field. PBC: Press the WPS button of the router or select PBC, and then click Apply.

  • Page 42: Device Settings

    Device Settings Voice Capability Set to enable voice capability switch. Web Portal Set the login password. Passwords Set all the settings to their factory Reset default values, and then the router will restart automatically. Restart Restart the router. Set the Wi-Fi range and device sleep Power Save time to save your router’s battery power.

  • Page 43: Firewall

    Firewall You may setup firewall rules to protect your network from viruses, worms and malicious activity on the Internet. NOTE: You can set the maximum to 10 filtering items for MAC/IP/ Port Filtering, URL Filtering and Port Forwarding. • MAC/IP/Port Filtering Select Settings >...
  • Page 44 Only Port Filtering is Enable, then Apply, the filter settings will appear: • Default Policy: Set how to handle the packet if none of the rules matches.
  • Page 45 IP Settings: Select the Internet Protocol version. MAC address: Set the MAC address that will be filtered. Source IP Address: Set the source IP address that will be filtered. Dest. IP Address: Set the destination IP address that will be filtered. Protocol: Set which protocol will be used for filtering.

  • Page 46: Port Forwarding

    • Port Forwarding You can setup virtual servers to provide services on the Internet. Select Firewall > Port Forwarding, the virtual server settings is shown in the following figure:...
  • Page 47 If you select Enable, then Apply, the Virtual Server Settings will appear: IP Address: Set IP address for the virtual server. Port Range: Set port numbers for the virtual server. Protocol: Set protocol for the virtual server. Comment: Type comments for the virtual server settings.
  • Page 48 Click Apply to confirm your configuration. To delete a virtual server: Select the virtual server in the Current Virtual Servers in the system area, then Click Delete. • URL Filtering You can set up content filter to restrict the improper content access.
  • Page 49 • UPnP It allows the router to advertise its UPnP capabilities. Select Firewall > UPnP, select Enable. • You can set up a De-militarized Zone (DMZ) to separate internal network with the Internet. Select Firewall > DMZ, the DMZ setting is shown in the following figure:...

  • Page 50: Router Settings

    If you select Enable, set the DMZ IP Address, and then click Apply to confirm your configuration. Router Settings Select Settings > Router settings the router information is shown in the following figure: IP Address: IP address for LAN interface. Subnet Mask: Subnet mask for the IP address.

  • Page 51: Warning And Notice

    • Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may affect the router performance, damage the router or cause danger to you.
  • Page 52 • Do not attempt to dismantle the router. There are no user serviceable parts. • Do not allow the router or accessories to come into contact with liquid or moisture at any time. Do not immerse the router in any liquid. •...

  • Page 53: Cleaning And Maintaining

    Cleaning and Maintaining • Use an antistatic cloth to clean the router. Do not use chemical or abrasive cleanser as these could damage the plastic case. Turn off your router before you clean • Use the router within the temperature range of -10°C to +55°C, and the storage temperature range is -20°C to +65°C.

  • Page 54: Radio Frequency (Rf) Exposure

    Radio Frequency (RF) Exposure Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits.

  • Page 55: Fcc Compliance

    FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
  • Page 56 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —...

  • Page 57: Troubleshooting

    Troubleshooting Voice-Related Problems Symptoms Possible Problems/ Solutions • Please wait for 1-2 minutes after the router is turned on. • If the signal LED light is No dial tone. blinking, you have poor RF reception. Change the location of the router. There is a prompt/ phone alert/ •...
  • Page 58 Symptoms Possible Problems/ Solutions • Put the phone on hook I hear a rapid tone as and try again. If you are soon as I lift the phone connected to the Internet off the hook. using the CDMA network, please disconnect this first. •...
  • Page 59 Internet Related Problems Symptoms Possible Problems/ Solutions • Please check your configuration settings. Cannot access the • Please wait 1-2 minutes for the Internet at all. router to initialize. • Check your service indicator LED’s. • The speed is dependent on The download or signal strength.
  • Page 60 Symptoms Possible Problems/ Solutions • Make sure the Wi-Fi function is active. Press the WPS button to enable the Wi-Fi WPS function. • Refresh the network list and Cannot establish select the correct SSID. the Wi-Fi connection • Check the IP address to make between your router sure your client can obtain an and client.
  • Page 61 Others Symptoms Possible Problems/ Solutions The voice signal • This indicates poor reception. indicator is always Try moving the router to another blinking or does location near the window. not light. • For the default password of the Web Portal configuration page and Wi-Fi connection password, please check the label on the About the...
