Episode CR-CDI1000-LSCAPE Quick Start Manual

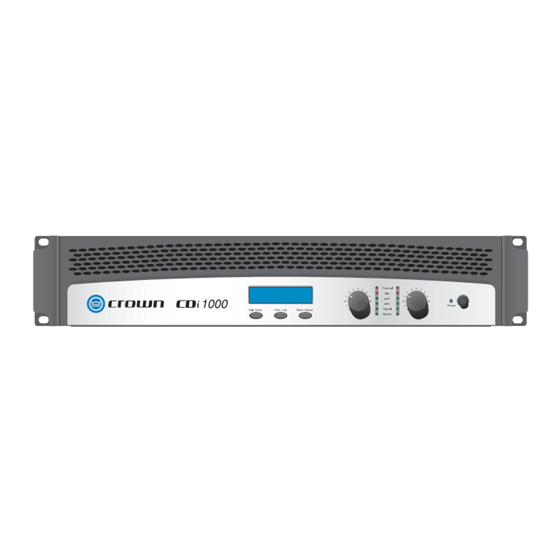

CR-CDI1000-LSCAPE
Welcome to Episode
Thank you for purchasing a great product from Episode®, one of the best sounding loudspeaker lines available today.
We appreciate your purchase and are committed to providing the highest quality products possible.
1.

Overview

This Quick Start Guide provides the basic information that is needed to install a CR-CDI1000-LSCAPE amplifier. Refer
to the Owner's Manual provided with the amplifier for more details about the amplifier.
2.

Package Contents

(1) CR-CDI1000-LSCAPE amplifier
Owner's Manual
(1)
(1)

Quick Start Guide

(5) Spade Lugs
(2) 3-Conductor Phoenix Connectors
(2) Tamper Resistant Level Knobs
3.

Calculating Amplifier Power

The number of satellites or subwoofers that can be connected is determined by the amplifier's power. As the number of
speakers increases, the power that is available to each decreases. Plan the system so that each speaker can receive
the highest level of wattage available.
Note: Only satellites with 70v tap settings need to be calculated. 8ohm satellites and subwoofers do not require
calculation.
Speaker Tap Setting
(A)
3.75w
7.5w
15w
30w
4.

Source Input Wiring

The CR-CDI1000-LSCAPE accepts balanced and unbalanced input signals. Balanced is recommended when available
to avoid interference on longer runs.

Use pre-built or professionally wired balanced line (two-conductor plus shield), 22-24 gauge cables and connectors.

At the amplifier inputs, use Phoenix-style connectors.

Unbalanced lines may be used, but may result in hum, or RF noise over long cable runs.
Balanced
- (Negative)
Shield
+ (Positive)
Pg. 1
Ch1 Qty Ch2 Qty
(B) (C)
Sub Total
20% Head Room
Total
(Must be less than
500w per Channel)
70v/8ohm Landscape Amplifier
Ch1 Total
(A x B)
100w
Watts
Unbalanced
- (Negative)
Shield
+ (Positive)
Note: A jumper must be used between the –(Negative) and
the shield when using an unbalanced input.
Quick Start Guide
Ch2 Total
(A x C)
100w
Jumper
© 2013 Episode®
