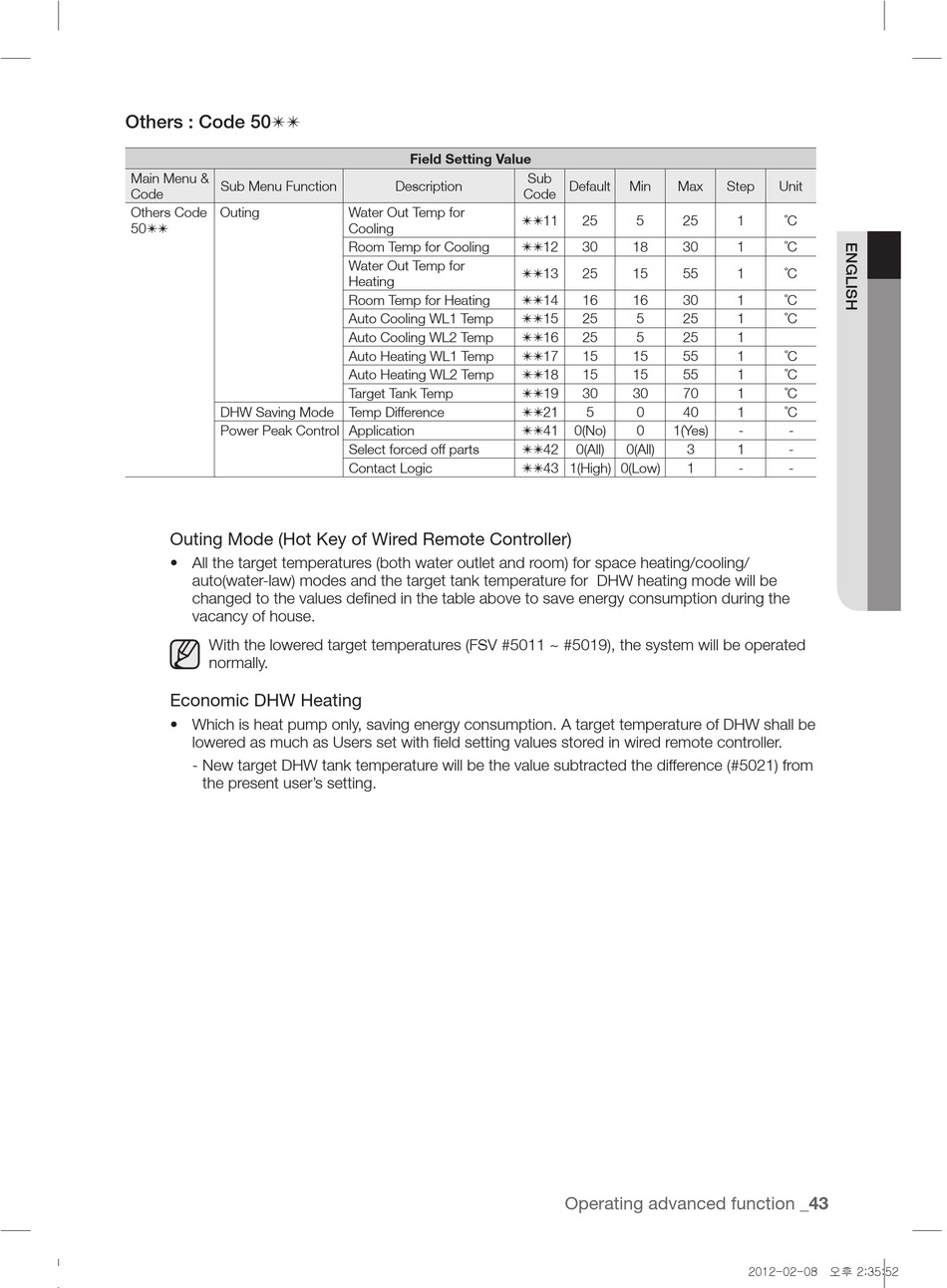

Samsung Control Unit User Manual page 43

others : Code 50
Main Menu &
Sub Menu Function
Code
Others Code Outing
50
DHW Saving Mode
Power Peak Control Application
Outing Mode (Hot Key of Wired Remote Controller)
• All the target temperatures (both water outlet and room) for space heating/cooling/
auto(water-law) modes and the target tank temperature for DHW heating mode will be
changed to the values defined in the table above to save energy consumption during the
vacancy of house.
With the lowered target temperatures (FSV #5011 ~ #5019), the system will be operated
normally.
Economic DHW Heating
• Which is heat pump only, saving energy consumption. A target temperature of DHW shall be
lowered as much as Users set with field setting values stored in wired remote controller.
- New target DHW tank temperature will be the value subtracted the difference (#5021) from
the present user's setting.
RC120MHXGA_IB_E_34412A(1).indd 43
Field Setting Value
Description
Code
Water Out Temp for
11
Cooling
Room Temp for Cooling
12
Water Out Temp for
13
Heating
Room Temp for Heating
14
Auto Cooling WL1 Temp
15
Auto Cooling WL2 Temp
16
Auto Heating WL1 Temp
17
Auto Heating WL2 Temp
18
Target Tank Temp
19
Temp Difference
21
41
Select forced off parts
42
Contact Logic 43 1(High) 0(Low)
Sub
Default Min Max
25 5 25
30 18 30
25 15 55
16 16 30
25 5 25
25 5 25
15 15 55
15 15 55
30 30 70
5 0 40
0(No) 0 1(Yes)
0(All) 0(All) 3
1
Operating advanced function _43
Step Unit
1 ˚C
1 ˚C
1 ˚C
1 ˚C
1 ˚C
1
1 ˚C
1 ˚C
1 ˚C
1 ˚C
- -
1 -
- -
