Gateway Tower User Manual page 262

Chapter 13: Upgrading Your Computer
7

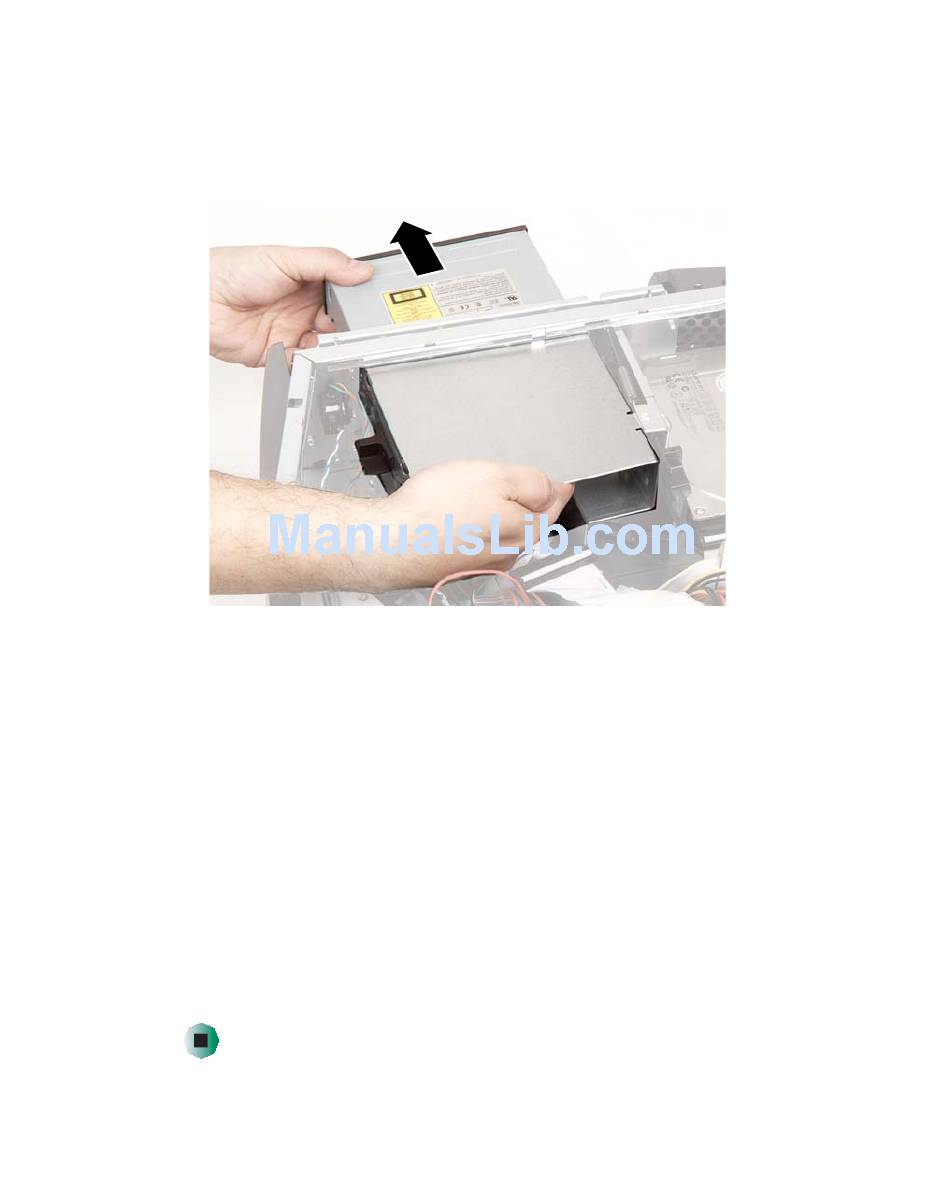

If you are replacing a drive, slide the old drive forward and out of the drive
bay.
- OR -
If you are adding a drive, remove the drive bay cover.
8
Set the jumpers on the drive. See the drive documentation for further
instructions.
9
Slide the new drive into the drive bay until it settles into the indentation,
then slide the release lever toward the front of the case.
10
If you removed a shipping screw, replace the screw.
11
Reconnect the drive cables using your notes from
edge of the data ribbon cable indicates Pin 1 and corresponds with Pin 1
on the drive (typically on the side farthest from the power supply
connection). See the drive documentation for more information.
12
Insert the left-side bezel tab into the slot on the left side of the computer
case, then swing the right side of the bezel in, towards the case, until the
right-side bezel release tab locks into place.
13
Close the case using the instructions in
252
"Closing the case" on page
www.gateway.com
Step 5. The red-striped
247.
