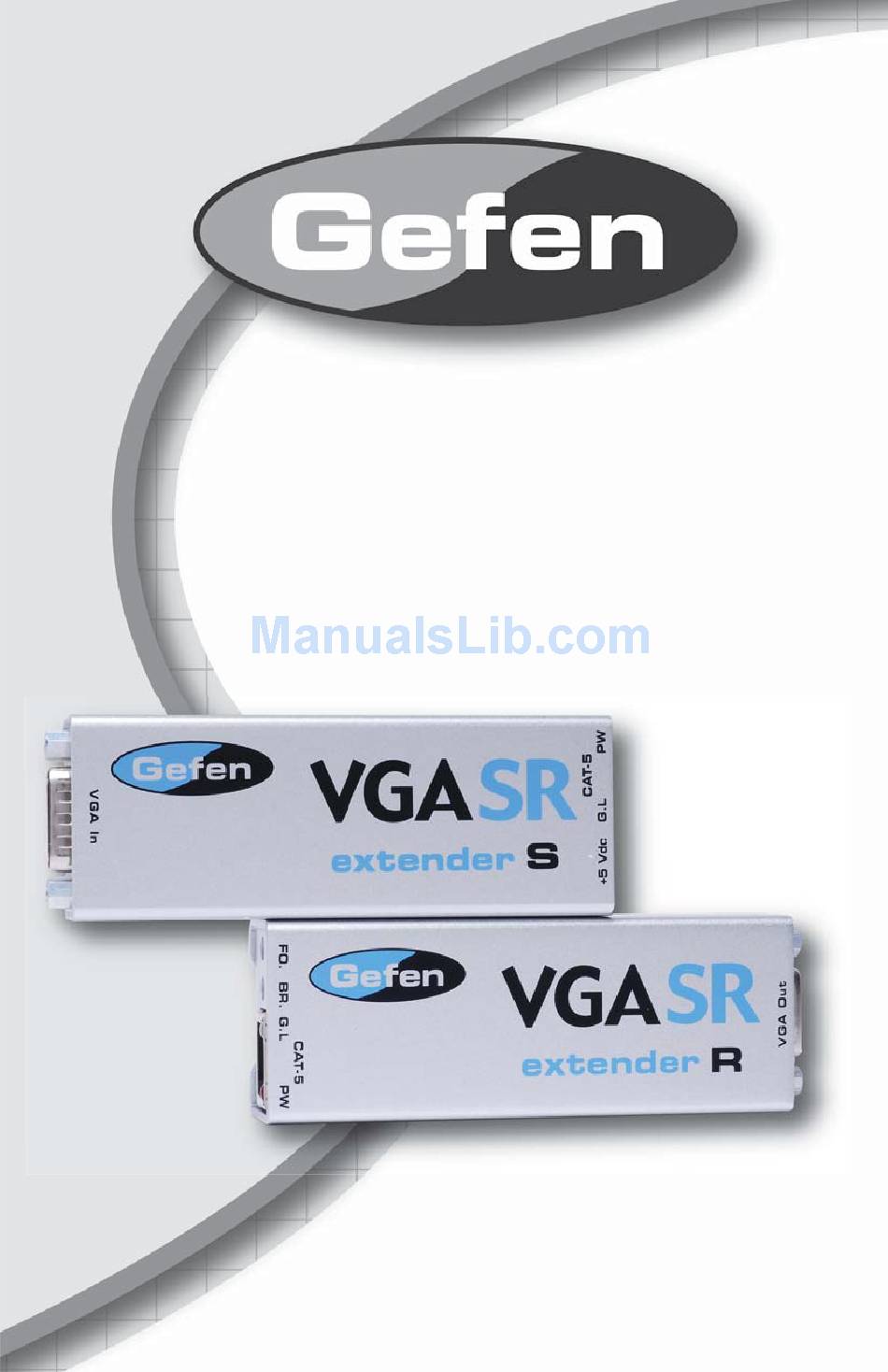

- Page 1 VGA Extender SRN U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen Inc. VGA Extender SRN...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Descriptions Installing And Operating the VGA Extender SRN Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction / Operation Notes

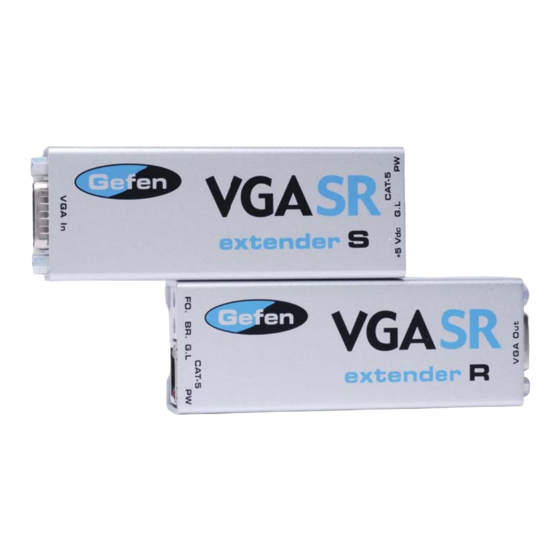

The VGA Extender SRN allows users to extend video signals far beyond the A/V rack. The VGA Extender SRN can be used to extend an analog VGA signal to cover distances up to 150 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension. -
Page 5: Features
One CAT-5e cable for extension • Supports resolutions up to 1080p, 2K, and 1920 x 1200 Includes: (1) VGA Extender SRN Sender Unit (1) VGA Extender SRN Receive Unit (1) 6 foot VGA cable (M-F) (1) 5V external power supply... -
Page 6: Panel Descriptions
PANEL DESCRIPTION Sender 5V DC Power Input Link Light Power Light VGA Out Receiver Link Light Power Light VGA In Brightness Focus Trim Pot Trim Pot The link light will stay on when a VGA connection is made with the source and the sender unit. -
Page 7: Installing And Operating The Vga Extender Srn
EDID. If us- ing a non-VESA standard resolution or if EDID is needed, an EDID storage and re- lay device is necessary. Gefen recommends the use of a DVI Detective (part# EXT- DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to DVI adapters. -
Page 8: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth................350 MHz Input Video Signal..................1.2 Volts p-p Input Sync Signal................5 Volts p-p (TTL) Horizontal Frequency Range...............15-70 KHz Vertical Frequency Range................30 - 170 Hz Video In......................HD-15 male Video out....................HD-15 female Link Connector..................RJ-45 Shielded Power Supply......................5V DC Power Consumption................5 Watts (max.) Dimensions..................1”...
