- Page 1 VGA Audio Extender U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. VGA Audio Extender is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
INTRODUCTION OPERATION NOTES PANEL DESCRIPTIONS INSTALLATION INSTRUCTIONS / LED INDICATORS / TRIM PODS CAT5 WIRING DIAGRAM SPECIFICATIONS WARRANTY TABLE OF CONTENTS... -
Page 4: Introduction

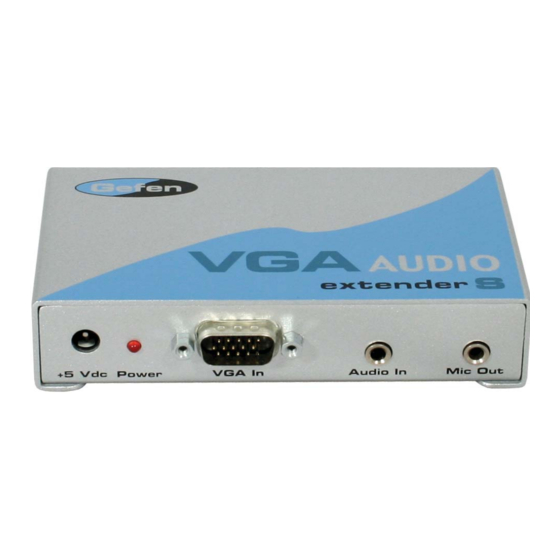

INTRODUCTION Thank you for purchasing the new VGA Audio Extender by Gefen, Inc. The VGA Audio Extender will extend both VGA and analog audio up to 150 feet over one CAT-5 cable. CONTENTS The VGA Audio Extender package consists of:... -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE VGA AUDIO EXTENDER SYSTEM • Use industry standard Category-5 (CAT-5) cable to operate the VGA Audio Extender system. CAT-5e cable is preferred. • Please connect all the cables between the computer and the VGA Audio Extender before powering up the VGA Audio Extender unit. -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS LED Indicator VGA Input 5V Input VGA Output 5V Input Audio Input Mic Output Audio Focus and Output Input Brightness trim pods Indicator... -
Page 7: Installation Instructions / Led Indicators / Trim Pods
INSTALLATION INSTRUCTIONS Connect your source to the VGA Audio Extender sender unit using the included VGA Cable. Connect your audio and mic source to the VGA Audio Extender sender using the included audio cable (mic cable sold separately). Connect your display to the VGA Audio Extender receiver unit using a VGA Cable. Connect the audio on your display or audio receiver to the VGA Audio Extender receiver unit using the included audio cable. -
Page 8: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 9: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth...350 MHz Actual Bandwidth...120 MHz Input Video Signal...1.2 Volts p-p / Input Sync Signal: 5 Volts p-p (TTL) Horizontal Frequency Range...15-70 KHz Vertical Frequency Range...30 - 170 Hz Video In...HD-15 male Video out...HD-15 female Sample Rate...5 kHz (min) - 48 kHz (max) Frequency Response...20Hz - 20kHz Audio Connector...mini-phone Stereo 3.5mm Link Connector...RJ-45 Shielded... -
Page 10: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
