7. Remove the deck.
A. Using a 7/16" open-end or socket wrench, remove the ten screws and ten washers that hold the
deck in place. See Figure 7.

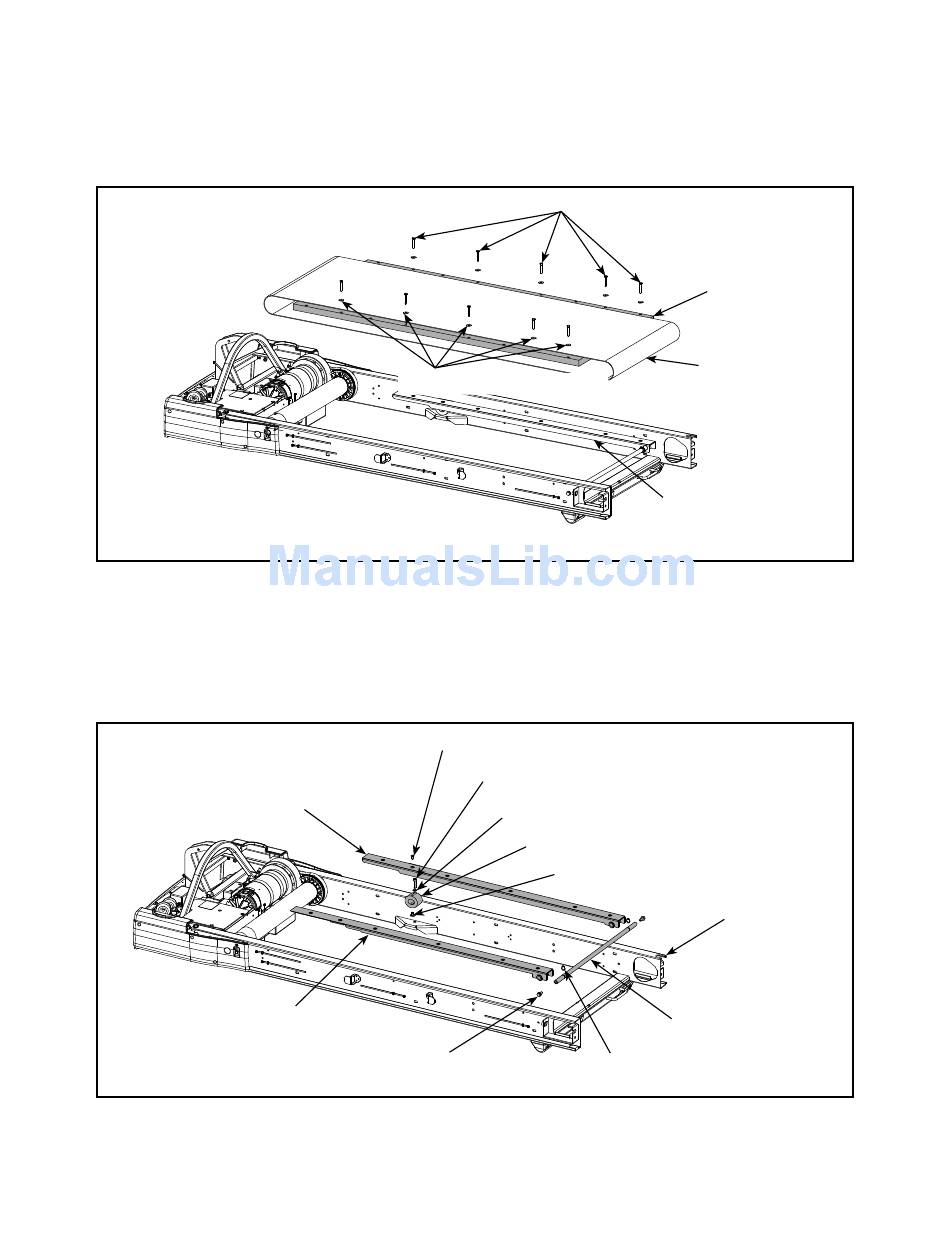

Figure 7
8. Remove the deck stiffeners.
A. Using a 1/2" Socket wrench, remove the two whiz-lock screws that secure the deck pivot shaft to
the frame. See Figure 8.
Deck Stiffener, Right
Deck Stiffener, Left
Figure 8
Service
Page 4-12
Cybex Pro+ Treadmill Service Manual
Screws (5 on Each Side)
Washers (5 on Each Side)
Flat Head Screw
Bolt
Whiz-lock Screw
Deck Support
(1 on Each Side)
Washer
Deck Bushing
Propeller Nut
Deck Pivot Shaft
Retaining Ring
Running
Deck
Running
Belt
Frame
