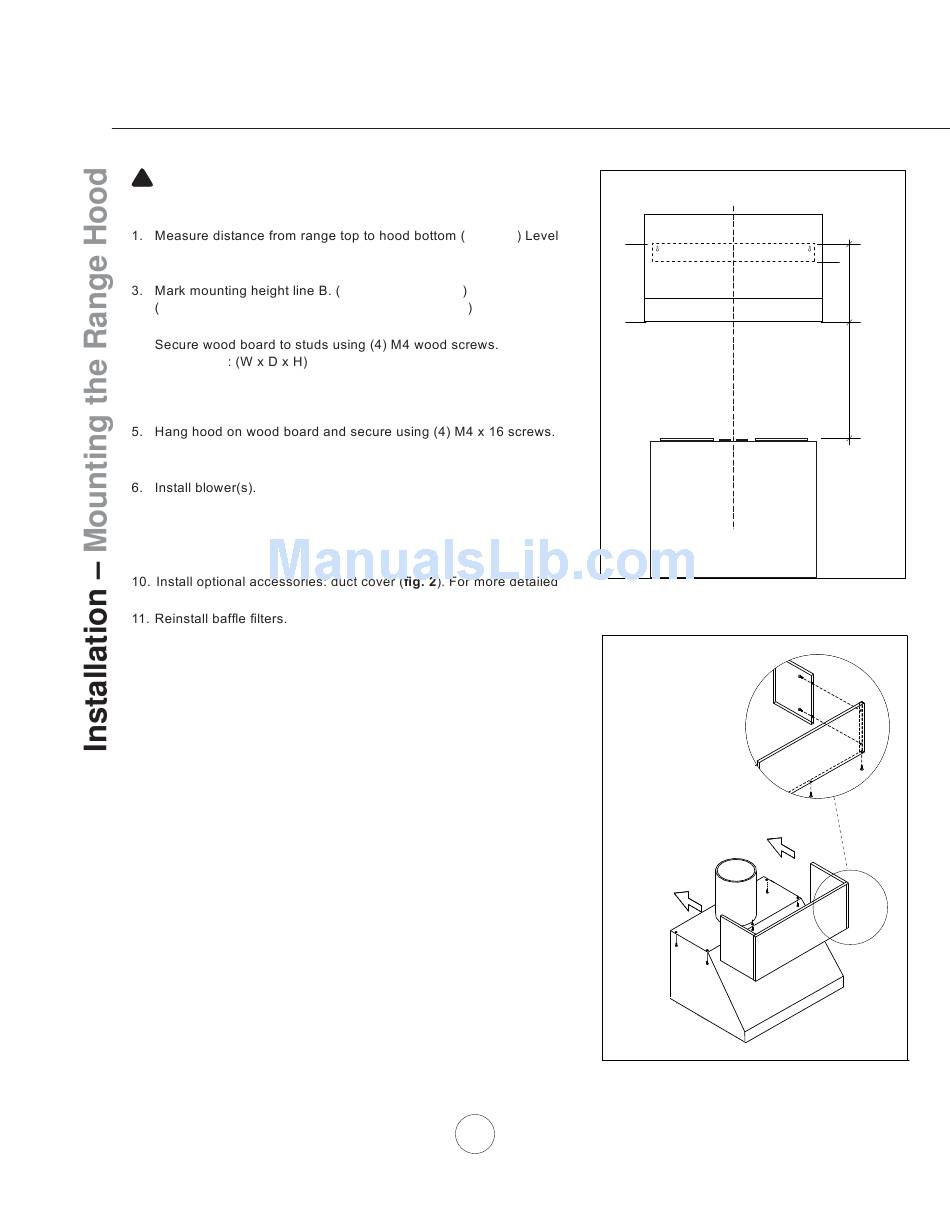

CAUTION: At least two installers are
required due to the weight and size of the
hood.
and mark line A.
2. Plum and mark center line.
This is the top of the board used to hang the hood
4. Mark center line of wood board and align top of board with line B.
Dimensions
AK7836ASX - 34" x 3/4" x 4"
AK7842ASX - 40" x 3/4" x 4"
AK7848ASX - 46" x 3/4" x 4"
NOTE: Due to the weight of this hood, ensure that the wood strip
is attached to every available stud, not into the drywall alone.
Turn to page 11 for blower installation
instructions.
7. Install electrical.
8. Install duct work and duct tape.
9. Power up hood and check for leaks around duct tape.
instructions refer to manual included with each accessory.
30" min
12 3/8" from line A
Wood Board
10
www.zephyronline.com
C/L
B
wood board
A
C/L
fig. 1
fig. 2
4"
12
"
3/8
min
30"
