    User manual CLIMATIC™ 40 Providing indoor climate comfort MUL37E-0607 07-2007...

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE • INDEX • CONTROL DESCRIPTION .- CLIMATIC 40 CONTROL 2.- DC4 TERMINAL (ECOLEAN) 3.- DC40 REMOTE TERMINAL (AIRCOOLAIR) • MENU • REGULATION .- ECOLEAN 2.- AIRCOOLAIR 3.- AIRCUBE • ADVANCED FUNCTIONS .- REMOTE ON/OFF 2.- REMOTE CHANGEOVER WINTER / SUMMER 3.- DYNAMIC SET POINT...

  • Page 3: Control Description

    CONTROL DESCRIPTION 1.- CLIMATIC 40 CONTROL Climatic 40 control, is an electronic device that controls Ecolean units EAC/EAR (chiller units), Aircoolair units ANCM/ANHM (air-air units) and Aircube units KSCM/KSHM (condensing units). The thermostat allows the following operations: • Unit ON/OFF.

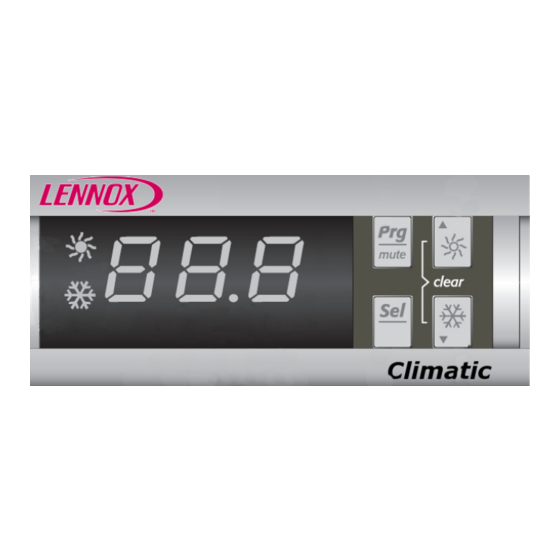

  • Page 4 CONTROL DESCRIPTION CLIMATIC 40 CONTROL The figure and the table below, show the symbols present on the display and on the keypad and their meanings: Main screeen shows: inlet water temperature for ECOLEAN, ambient temperature for AIRCOOLAIR and unit status (On/Off) for AIRCUBE.

  • Page 5: Dc4 Terminal (Ecolean)

    Set point has no meaning in Aircube units because the compressors are directly controlled by remote contacts. 2.- DC41 REMOTE CONTROL (ECOLEAN) DC41 terminal is an optional keypad that allows to manage Climatic 40 controller from a remote position. The buttons and indications on the display faithfully reproduce the Climatic 40 user interface.

  • Page 6: Dc40 Remote Terminal (Aircoolair)

    CONTROL DESCRIPTION 3.- DC40 REMOTE TERMINAL (AIRCOOLAIR) The figure and the table below, show the symbols present on the display and on the keypad and their meanings. In the main field of display, it appears OFF, if the machine is stopped or the set point, if the machine is working. BUTTON NAME DESCRIPTION...
  • Page 7 CONTROL DESCRIPTION 3.1.- TURN ON/OFF THE UNIT WITH REMOTE CONTROL DC40 (AIRCOOLAIR) To turn on the unit press the “ ” button. The display shows current operating mode. 3.2.- SELECTING THE UNIT´S OPERATING MODE Once the unit is turned on, you can select Cooling, Heating or Automatic mode just pressing “Mode” button. In the automatic mode you just choose the set point and the system automatically switches from cooling to heating mode, depending on the position of the ambient temperature in respect to the set-point.
  • Page 8 CONTROL DESCRIPTION CONFIGURATION a) Enter time bands menu. b) Set  time band of weekdays starting hour. c) Accept. Time band  Weekdays  3 sec.   flashing d) Set  time band of weekdays starting minutes. e) Accept. f) Set  time band of weekdays set-point (on/off/tem- perature).

  • Page 9: Menu

    MENU Access to the menu: A) PROBES DISPLAY MENU  sec.  Press “ ” button, to enter probes display menu. “ b01” or “b02”, appears on the display (it depends on the unit configuration). B) SETPOINT SETTINGS AND OPERATING HOURS DISPLAY MENU Press “...
  • Page 10 MENU MENU TREE PROBES SETTINGS ATIFREEZE AND ELECTRICAL HEATER PROBES COMPRESSORS DEFROST FANS UNIT SETTING ALARMS REGULATION TIMER SETTING SOFTWARE NOTES: a) The parameters that have been modified without being confirmed using the “ Sel ” button, return to the previous value. b) If no operations are performed on the keypad for 60 seconds, the controller exits the parameter editing menu by timeout and the changes are cancelled.

  • Page 11: Regulation

    REGULATION 1.- ECOLEAN Inlet water temperature is thermostatically controlled via set point and tolerance range (differential) as shown in the following diagrams: 1.1- COOLING OPERATING MODE 1.2- HEATING OPERATING MODE STEP  STEP 2 STEP 2 STEP  Inlet water Inlet water temperature (ºC) temperature (ºC)

  • Page 12: Advanced Functions

    ADVANCED FUNCTIONS 1.- REMOTE ON/OFF This function allows you to turn on/turn off the unit by a simply remote contact (contacts 95-96). Close contact = ON; Open contact = OFF. 2.- REMOTE CHANGEOVER WINTER/SUMMER On heat pump units (also in Aircoolair cooling only + electrical heater), it is possible to select cooling or heating mode by a remote contact (contacts 97-98).

  • Page 13: Bms Comunications 2

    ADVANCED FUNCTIONS 4.- BMS COMMUNICATIONS Since the unstoppable growing trend of Building Automation, driven by the powerful ever evolving connectivity, controller climatic 40 offers the possibility to communicate to Building Management Systems (BMS) via Modbus protocol. Modbus standard interface is integrated in the control, so you don’t need any sort of gateway, router, etc.

  • Page 14: Low Noise 3

    ADVANCED FUNCTIONS 6.- LOW NOISE This function is available only in the following units: ECOLEAN EAC + kit -15ºC y EAR 251-812 SM AIRCOOLAIR ANCM + kit -15ºC y ANHM 22E-86D AIRCUBE KSCM + kit -15ºC y KSHM 22E-86D This function moves the condensing pressure set point so as to lower the fan speed and consequently reduce noise (specifically at night).

  • Page 15: Timing And Delays 4-5

    ADVANCED FUNCTIONS DIGITAL INPUT TABLE ECOLEAN AIRCOOLAIR AIRCUBE DIGITAL INPUT ANCM ANHM KSCM KSHM Flow switch Termal overload fan ON/OFF Cool/Heat Cool/Heat Cool/Heat Cool/Heat High pressure circuit  Low pressure circuit  ON/OFF ON/OFF Step  Step 3 Step 2 High pressure circuit 2 Low pressure circuit 2 ID0...

  • Page 16: Defrost 5

    ADVANCED FUNCTIONS WATER PUMP- WATER FLOW SWITCH (ECOLEAN) Water flow switch assures that water pump does not work when there is no water flow. There is a by-pass during the first 150 seconds of water pump operation because of water flow switch signal. When the alarm has been activated, water pump is stopped. Water pump starts again every 90 seconds during a time of 50 seconds, to try to reset the alarm.

  • Page 17: Condenser Fan Speed Control 6

    ADVANCED FUNCTIONS 10.- CONDENSER FAN SPEED CONTROL The function of the fan speed control is to prevent very low condensing temperatures during cooling mode operation between 0ºC and 46ºC outside temperatures. Depending on the unit, this function could be: ..- PROPORTIONAL CONTROL BASED ON PRESSURE Models: ECOLEAN: EAC + kit -15ºC and EAR 251-812 SM AIRCOOLAIR:...

  • Page 18: Free Cooling 7

    ADVANCED FUNCTIONS 11.- FREE COOLING This option takes advantage of external conditions for cooling mode. The freecooling is enabled when outdoor temperature is 1ºC lower than indoor temperature and when the first one is: - < 10ºC, deactivate compressors and open completely air intake gate in order to refresh only by outdoor air (enough in this conditions). - >10ºC, open air intake gate and delay compressors, which turn on only in the case outdoor fresh air would not be sufficient to achieve comfort setpoint.

  • Page 19: Parameters 8-20

    PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Antifreeze and electrical heater Antifreeze alarm set point. ºC ------ Antifreeze differential. ºC ------ By-pass time for antifreeze alarm. sec. ------ Antifreeze heater set point. ºC ------ ------ Antifreeze heater differential.
  • Page 20 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Defrost Defrosting cycle activation. flag Start defrosting pressure. End defrosting pressure. Min. time to start a defrosting cycle. sec. Min. duration of a defrosting cycle. sec. Max. duration of a defrosting cycle. min.
  • Page 21 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Regulación  (EAC/EAR 25-43) Cooling set point. ºC 0 (EAC/EAR 472-82) ------ 9 (EAC/EAR 003-204) 2 (EAC/EAR 25-43)  (ANCM/HM 22E-43E) Differential in cooling mode. ºC 3 (EAC/EAR 472-82) 2 (ANCM/HM 52D-86D) ------ 4 (EAC/EAR 003-204) 4 (ANCM/HM 2D-52D)

  • Page 22: Safety Devices

    SAFETY DEVICES ANTIFREEZE PROTECTION (ECOLEAN). This protection is activated by the control of the unit when the outlet water temperature probe (b2), located inside the water exchan- ger, measures +4.5ºC and deactivates when the outlet water temperature probe reaches +5.5ºC again. When the protection is activated occurs as follow: - If the unit operating mode is STAND-BY : the water pump goes on, the same happens to electrical heater of water exchanger and electrical heater of water tank (if included).

  • Page 23: Assembly And Installation Instructions

    ASSEMBLY AND INSTALLATION INSTRUCTIONS DC40. Installation instructions . Divide the top part of the instrument from the bottom part using a screwdriver as shown in Fig. 8.. 2. Open the instrument with a “hinge” movement, pivoting the top part of the instrument and lifting the bottom part. Fig.
  • Page 24 ASSEMBLY AND INSTALLATION INSTRUCTIONS DC41. Installation instructions: . Pass the telephone cable through the hole in the rear of the case. 2. Fasten the rear of the case to the box using the round-head screws. 3. Connect the telephone cable to the RJ2 terminal of the DC4. 4.

  • Page 25: Alarms

    - Alarm code is shown on Climatic 40 display alternately with the main menu. - Only in Aircoolair units, an alarm code (different from Climatic 40’s one) is shown on DC40 display alternately with the main menu. - A red bell appears on Climatic 40 display and alarm relay is activated.
  • Page 26 Compressor operating hour limit exceeded. ------ AUTO - Compressor operating hour (parameter C0). Disabled by default. - Compressor operating hour limit (par. C5). Warning. ------ Climatic 40 hardware error. ------ AUTO Call SAT. Warning. Climatic 40 hardware error. Unit stops AUTO Call SAT. ------ Check: - Green LED turned on inside the board.
  • Page 27 - DC40 connections (see electrical diagrams). Unit stops AUTO Climatic 40. (Aircoolair only). Call SAT. Generic alarm. ------ ------ Check Climatic 40 alarm code and act by consequence. Some active alarms on Climatic 40. Not used. ------ ------ Call SAT. DC40 internal probe alarm. ------ ------ Call SAT.
  • Page 28 ALARM LOG Climatic 40, has a log where significant events that stop (alarms) or limit (warnings) the operation of the unit, are saved. In order to entry Alarm Log menu, do the same as explained in chapter 3 MENU in the paragraph PARAMETERS EDITING MENU, introducing the password 44 instead of 22.
  • Page 29 NOTES...
