Lennox CLIMATIC 40 User Manual

Lennox CLIMATIC 40 User Manual

An electronic device that controls aircoolair / compactari / flatair units (air-air units) and aircube units (condensing units)
Hide thumbs Also See for CLIMATIC 40:
Table of Contents

Advertisement

Quick Links

Download this manual

User manual

CLIMATIC™ 40
Providing indoor climate comfort
MUL43E-1011 10-2011
Original manual translation

Advertisement

Table of Contents
loading

Related Manuals for Lennox CLIMATIC 40

Summary of Contents for Lennox CLIMATIC 40

  • Page 1: User Manual

    User manual CLIMATIC™ 40 Providing indoor climate comfort MUL43E-1011 10-2011 Original manual translation...

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE • INDEX • DESCRIPTION OF CONTROLS .- CLIMATIC 40 CONTROL 2.- DC40 REMOTE TERMINAL (AIRCOOLAIR) • MENU • REGULATION .- AIRCOOLAIR /COMPACTAIR / FLATAIR 2.- AIRCUBE • ADVANCED FUNCTIONS .- REMOTE ON/OFF 2.- REMOTE WINTER / SUMMER CHANGEOVER 3.- DYNAMIC SET POINT...

  • Page 3: Description Of Controls

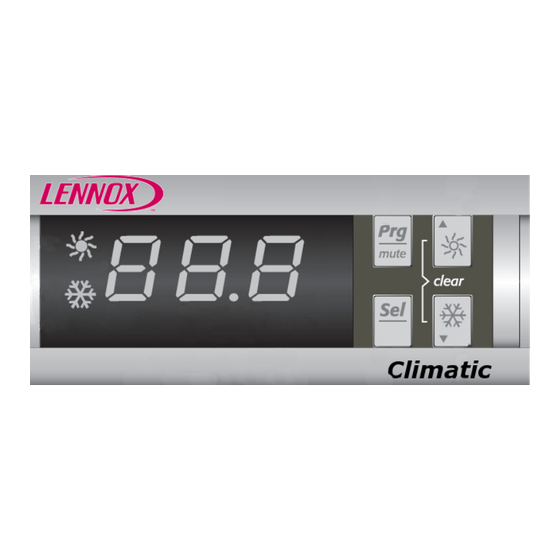

    DESCRIPTION OF CONTROLS 1.- CLIMATIC 40 CONTROL Climatic 40 control, is an electronic device that controls Aircoolair / Compactari / Flatair units (air-air units) and Aircube units (con- densing units). The thermostat allows the following operations: • Unit ON/OFF. • Select system operating mode.
  • Page 4 DESCRIPTION OF CONTROLS CLIMATIC 40 CONTROL The figure and the table below show the symbols present on the display and on the keypad,together with their meanings: The main screeen shows: - Ambient temperature for AIRCOOLAIR / COMPACTAIR / FLATAIR. - Unit status (On/Off) for AIRCUBE.
  • Page 5 DESCRIPTION OF CONTROLS 2.- DC40 REMOTE TERMINAL (AIRCOOLAIR / COMPACTAIR / FLATAIR) The illustration and the table below show the symbols that appear on the display and on the keypad and their meanings. OFF appears in the main field of the display if the machine is off, or the set point if the machine is working. BUTTON NAME DESCRIPTION...
  • Page 6 DESCRIPTION OF CONTROLS 2.1.- TURN ON/OFF THE UNIT WITH REMOTE CONTROL DC40 (AIRCOOLAIR / COMPACTAIR / FLATAIR) To turn on the unit press the “ ” button. The display shows current operating mode. 2.2.- SELECTING THE UNIT´S OPERATING MODE Once the unit is turned on, you can select Cooling, Heating or Automatic mode just pressing the “Mode” button. In the automatic mode you just choose the set point and the system automatically switches from cooling to heating mode, depending on the position of the ambient temperature with respect to the set point.
  • Page 7 DESCRIPTION OF CONTROLS CONFIGURATION a) Enter time bands menu. b) Set  time band for weekday start hour. c) Accept. Time band  Weekdays  3 sec.   flashing d) Set  time band of weekday start minutes. e) Accept. f) Set  time band of weekday set point (on/off/tem- perature).
  • Page 8 MENU Access to the menu: A) PROBES DISPLAY MENU Press the “ ” button to enter probes display menu.  sec.  “ b01” or “b02”, appears on the display (depending on the unit’s configuration). Once the probe is selected, after a few seconds, “b0” turns into its temperature/ pressure measure.
  • Page 9 MENU MENU TREE PROBES SETTINGS ATIFREEZE AND ELECTRICAL HEATER PROBES COMPRESSORS DEFROST FANS UNIT SETTING ALARMS REGULATION TIMER SETTING SOFTWARE NOTES: a) Parameters that have been modified without being confirmed using the “ Sel ” button will return to their previous value. b) After confirming a modification, escape up to the main menu to save it;...
  • Page 10 REGULATION 1.- AIRCOOLAIR / COMPACTAIR / FLATAIR Ambient (or return air duct) temperature is thermostatically controlled via set point and tolerance range (differential) as shown in the following diagrams: 1.1- AUTOMATIC MODE (with DC40) (Heat pump) HEAT COOL Ambient temperature (ºC) 1.2- AUTOMATIC MODE (Cooling only+Electrical heater) COOL...

  • Page 11: Advanced Functions 0

    ADVANCED FUNCTIONS 1.- REMOTE ON/OFF This function allows you to turn the unit on/off by a simply remote contact (contacts 95-96 in AIRCOOLAIR /COMPACTAIR / FLA- TAIR units;contacts 88-89 in AIRCUBE units). Close contact = ON; Open contact = OFF. 2.- REMOTE CHANGEOVER WINTER/SUMMER On heat pump units (also in Aircoolair / Compactair / Flatair cooling only + electrical heater), cooling or heating mode can be selec- ted by a remote contact (contacts 97-98 in Aircoolair and contacts 95-98 in Compactair and Flatair).

  • Page 12: Bms Comunications 4

    Given the growing and unstoppable trend towards Building Automation, the Climatic 40 controller offers the possibility of commu- nicating with Building Management Systems (BMS) via Modbus protocol. The Modbus standard interface is integrated into the control, so you do not need any sort of gateway, router, etc.
  • Page 13 ADVANCED FUNCTIONS 4.2 - PARAMETERS TABLE U.O.M.= Measurement unit Resol. = Solution R/W = Reading/ Writting Modbus Type of Parameters and description min. máx. U.O.M. resol. address variable ALARMS Circuit  alarm Flag Digital Circuit 2 alarm Flag Digital Indoor fan alarm/ Water pump alarm Flag Digital Alarm sensor...
  • Page 14 ADVANCED FUNCTIONS 4.2 - PARAMETERS TABLE. Modbus Type of Parameters and description min. máx. U.O.M. resol. address variable UNIT CONTROL Unit status (1=ON ó 0=standby) Digital Flag Status auto /manual (0=Manual ó 1=Automatic) Flag Analog Status cooling / heating (1=Cooling or 0=Heating ) Flag Digital (Writting is possible only with auto/manual = 0 manual)

  • Page 15: Low Noise 4

    ADVANCED FUNCTIONS 5.- LOW NOISE Available for models with poroportional fan pressure regulation. It moves the condensing pressure set point in order to lower the fan speed and thus reduce noise (specifically at night). If low noise is active during cooling, the condenser control set points are increased by 5º bar. If low noise is active in heating, the set points are reduced by 1º...

  • Page 16: Analogue / Digital Input 5

    ADVANCED FUNCTIONS 7.- ANALOGIC / DIGITAL INPUT...

  • Page 17: Timing And Delays 6

    ADVANCED FUNCTIONS 8.- TIMING AND DELAYS COMPRESSOR In order to protect compressors from destructively cycling on and off, following protection delays have been set: unit MINIMUM ON = 30 sec. MINIMUM OFF = 30 sec. Time (sec.) 9.- DEFROST The defrosting process is activated during heating mode in the heat pump units, when the outside temperature is low and the outdoor coil is likely to be frozen.

  • Page 18: Condenser Fan Speed Control 7-8

    ADVANCED FUNCTIONS 9.2 - DYNAMIC DEFROST Dynamic defrosting cycle starting ( according to outdoor temperature) allows to reduce the number and time of defrosting cycles in winter to achieve better unit efficiency. CONDENSER PRESSURE (bar g) OUTDOOR TEMPERATURE (ºC) 10.- CONDENSER FAN SPEED CONTROL 0..- PROPORTIONAL CONTROL BASED ON PRESSURE Models: AIRCOOLAIR...
  • Page 19 ADVANCED FUNCTIONS 0.2.- PROPORTIONAL CONTROL BASED ON PRESSURE TEMPERATURE Models: AIRCOOLAIR: ASC 20-85 AIRCUBE: KSCM 22E-86D SPEED 00% CONDENSER TEMPERATURE (ºC) 8 9 0.3.- ON/OFF CONTROL BASED ON PRESSURE Models: AIRCOOLAIR: ASC/ASH 00-40 AIRCUBE: KSCM/KSHM 2D-24D The fans for these models incorporate 2 speeds. The fans work on high or low speed according to: COOLING MODE: HEATING MODE (heat pump units only).

  • Page 20: Free Cooling 9

    ADVANCED FUNCTIONS 11.- FREE COOLING This option takes advantage of external conditions for cooling mode. Freecooling is enabled when outdoor temperature is 1ºC lower than indoor temperature; when the former is: - < 10ºC, the compressors are deactivated and the air intake gate fully opened in order to refresh with outdoor air only (sufficient under these conditions).

  • Page 21: Parameters

    PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. AIRCOOLAIR AIRCUBE COMPACTAIR FLATAIR 2 Antifreeze and electrical heater Antifreeze alarm set point. ºC ------ Antifreeze differential. ºC ------ By-pass time for antifreeze alarm. sec. ------ Antifreeze heater set point. ºC ------ ------ ------...
  • Page 22 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. AIRCOOLAIR AIRCUBE COMPACTAIR FLATAIR Defrost Defrosting cycle activation. flag Start defrosting pressure. End defrosting pressure. Min. time to start a defrosting cycle. sec. Min. duration of a defrosting cycle. sec. Max. duration of a defrosting cycle. min.
  • Page 23 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. AIRCOOLAIR AIRCUBE COMPACTAIR FLATAIR 2 Regulation Cooling set point. ºC ------  (ASC/ASH 2O-40)  (CMC/H 20-40) Differential in cooling mode. ºC 2 (ASC/ASH 45-85) ------ 2 (CMC/H 45-85) 3 (CMC/H 00) 3 (ASC/ASH 00-40) Heating set point.

  • Page 24: Safety Devices

    SAFETY DEVICES ANTIFREEZE PROTECTION (AIRCOOLAIR / COMPACTAIR / FLATAIR). The unit is protected by means of a temperature probe located in the indoor piping, when the indoor temperature goes drops 2ºC: WITHOUT FREECOOLING - The compressors shut down and the antifreeze alarm goes on. - The alarm is reset automatically when the temperature reaches 7ºC.
  • Page 25 ASSEMBLY AND INSTALLATION INSTRUCTIONS DC40. Installation instructions . Separate the cover of the instrument from the bodypart using a screwdriver as shown in Fig. 8.. 2. Open the instrument with a “hinge” movement, pivoting the cover of the instrument upwards. Fig.

  • Page 26: Alarms

    - Alarm code being shown on BM40 display alternately with the main menu. - in Aircoolair / Compactair / Flatair units, an alarm code (different from the one for the Climatic 40) being shown on the DC40 display alternately with the main menu.
  • Page 27 - Indoor fan operating time (parameter C5). Disabled by default. - Indoor fan operating time limit (par. C5). Warning. ------ ------ Climatic 40 hardware error. AUTO Call Technical Service. Warning. ------ Climatic 40 hardware error. Unit stops AUTO Call Technical Service.
  • Page 28 Unit stops AUTO matic 40. (AIRCOOLAIR/COMPACTAIR/FLATAIR) Call Technical Service. Generic alarm. ------ ------ Check Climatic 40 alarm code and act by accordingly. Some active alarms on Climatic 40. ------ ------ Not used. Call Technical Service. DC40 internal probe alarm. ------ ------ Call Technical Service.
  • Page 29 ALARM LOG The Climatic 40 has a log where significant events that stop (alarms) or limit (warnings) the operation of the unit are saved. In order to enter the Alarm Log menu, proceed as explained in chapter 3 MENU in the paragraph PARAMETERS EDITING MENU, entering the password 44 instead of 22.
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 BELGIUM, LUXEMBOURG PORTUGAL Due to Lennox’s ongoing commitment to quality, www.lennoxbelgium.com www.lennoxportugal.com the Specifications, Ratings and Dimensions are subject to change without notice and without incurring liability. CZECH REPUBLIC RUSSIA Improper installation, adjustment, alteration, www.lennox.cz www.lennoxrussia.com service or maintenance can cause property damage or personal injury.
