User manual
CLIMATIC™ 40
Providing indoor climate comfort
MUL37E-0607 12-2009
Original manual translation

Advertisement

Table of Contents
loading

Summary of Contents for Lennox Climatic 40

  • Page 1 User manual CLIMATIC™ 40 Providing indoor climate comfort MUL37E-0607 12-2009 Original manual translation...
  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE • INDEX • DESCRIPTION OF CONTROLS .- CLIMATIC 40 CONTROL 2.- DC4 TERMINAL (ECOLEAN) 3.- DC40 REMOTE TERMINAL (AIRCOOLAIR) • MENU • REGULATION .- ECOLEAN 2.- AIRCOOLAIR 3.- AIRCUBE • ADVANCED FUNCTIONS .- REMOTE ON/OFF 2.- REMOTE WINTER / SUMMER CHANGEOVER 3.- DYNAMIC SET POINT...
  • Page 3: Description Of Controls

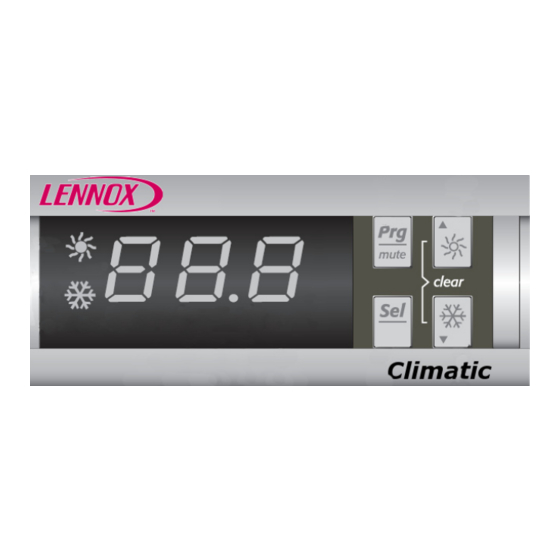

    DESCRIPTION OF CONTROLS 1.- CLIMATIC 40 CONTROL Climatic 40 control, is an electronic device that controls Ecolean EAC/EAR units (chiller units), Aircoolair ANCM/ANHM units (air-air units) and Aircube KSCM/KSHM units (condensing units). The thermostat allows the following operations: • Unit ON/OFF.
  • Page 4 DESCRIPTION OF CONTROLS CLIMATIC 40 CONTROL The figure and the table below show the symbols present on the display and on the keypad,together with their meanings: The main screeen shows: inlet water temperature for ECOLEAN, ambient temperature for AIRCOOLAIR and unit status (On/Off) for AIRCUBE.
  • Page 5: Dc4 Terminal (Ecolean)

    There are no set points to be made for Aircube units because the compressors are directly controlled by remote contacts. 2.- DC41 REMOTE CONTROL (ECOLEAN) DC41 terminal is an optional keypad that allows the Climatic 40 controller to be managed remotely. The buttons and indications on the display faithfully reproduce the Climatic 40 user interface.
  • Page 6: Dc40 Remote Terminal (Aircoolair)

    DESCRIPTION OF CONTROLS 3.- DC40 REMOTE TERMINAL (AIRCOOLAIR) The illustration and the table below show the symbols that appear on the display and on the keypad and their meanings. OFF appears in the main field of the display if the machine is off, or the set point if the machine is working. BUTTON NAME DESCRIPTION...
  • Page 7 DESCRIPTION OF CONTROLS 3.1.- TURN ON/OFF THE UNIT WITH REMOTE CONTROL DC40 (AIRCOOLAIR) To turn on the unit press the “ ” button. The display shows current operating mode. 3.2.- SELECTING THE UNIT´S OPERATING MODE Once the unit is turned on, you can select Cooling, Heating or Automatic mode just pressing the “Mode” button. In the automatic mode you just choose the set point and the system automatically switches from cooling to heating mode, depending on the position of the ambient temperature with respect to the set point.
  • Page 8 DESCRIPTION OF CONTROLS CONFIGURATION a) Enter time bands menu. b) Set  time band for weekday start hour. c) Accept. Time band  Weekdays  3 sec.   flashing d) Set  time band of weekday start minutes. e) Accept. f) Set  time band of weekday set point (on/off/tem- perature).
  • Page 9: Menu

    MENU Access to the menu: A) PROBES DISPLAY MENU Press the “ ” button to enter probes display menu.  sec.  “ b0”, “b02”, “b04”, “b06” ,“b07” ,“b08” ,“b02”, appears on the display (depending on the unit’s configuration). Once the probe is selected, after a few seconds, “b0” turns into its temperature/ pressure measure.
  • Page 10 MENU MENU TREE PROBES SETTINGS ATIFREEZE AND ELECTRICAL HEATER PROBES COMPRESSORS DEFROST FANS UNIT SETTING ALARMS REGULATION TIMER SETTING SOFTWARE NOTES: a) Parameters that have been modified without being confirmed using the “ Sel ” button will return to their previous value. b) After confirming a modification, escape up to the main menu to save it;...
  • Page 11: Regulation

    REGULATION 1.- ECOLEAN Inlet water temperature is thermostatically controlled via set point and tolerance range (differential) as shown in the following diagrams: 1.1- COOLING OPERATING MODE 1.2- HEATING OPERATING MODE STEP  STEP 2 STEP 2 STEP  Inlet water Inlet water temperature (ºC) temperature (ºC)
  • Page 12: Advanced Functions

    ADVANCED FUNCTIONS 1.- REMOTE ON/OFF This function allows you to turn the unit on/off by a simply remote contact (contacts 95-96 in ECOLEAN and AIRCOOLAIR units;contacts 88-89 in AIRCUBE units). Close contact = ON; Open contact = OFF. 2.- REMOTE CHANGEOVER WINTER/SUMMER On heat pump units (also in Aircoolair cooling only + electrical heater), cooling or heating mode can be selected by a remote con- tact (contacts 97-98).
  • Page 13: Bms Comunications 2

    For further information, please see BMS communication manual. 5.- TIME BANDS PROGRAM (Ecolean) The Climatic 40 controller allows 2 time bands to be programmed for each day, each with a different set point. The setting parameters are explained in the following table:**...
  • Page 14: Low Noise 3

    ADVANCED FUNCTIONS 6.- LOW NOISE This function is available only in the following units: ECOLEAN EAC + kit -15ºC y EAR 251-812 SM AIRCOOLAIR ANCM + kit -15ºC y ANHM 22E-86D AIRCUBE KSCM + kit -15ºC y KSHM 22E-86D This function moves the condensing pressure set point in order to lower the fan speed and thus reduce noise (specifically at night). If low noise is active during cooling, the condenser control set points are increased by 5º...
  • Page 15: Timing And Delays 4-5

    ADVANCED FUNCTIONS DIGITAL INPUT TABLE DIGITAL INPUT ECOLEAN AIRCOOLAIR AIRCUBE ANCM ANHM KSCM KSHM Flow switch Termal overload fan ON/OFF Cool/Heat Cool/Heat Cool/Heat Cool/Heat High pressure circuit  Low pressure circuit  ON/OFF ON/OFF Step  Step 3 Step 2 High pressure circuit 2 Low pressure circuit 2 ID0...
  • Page 16: Defrost 5

    ADVANCED FUNCTIONS WATER PUMP- WATER FLOW SWITCH (ECOLEAN) The water flow switch ensures that the water pump does not work when there is no water flow. At first, there is a by-pass during the first 150 seconds of water pump operation which operates according to the water flow switch signal. When the alarm has been activated, the water pump is stopped.
  • Page 17: Condenser Fan Speed Control 6

    ADVANCED FUNCTIONS 10.- CONDENSER FAN SPEED CONTROL The function of the fan speed control is to prevent very low condensing temperatures during cooling mode operation at outside temperatures of between 0ºC and 46ºC. Depending on the unit, this function could be: ..- PROPORTIONAL CONTROL BASED ON PRESSURE Models: ECOLEAN: EAC + kit -15ºC and EAR 251-812 SM...
  • Page 18: Free Cooling 7

    ADVANCED FUNCTIONS 11.- FREE COOLING This option takes advantage of external conditions for cooling mode. Freecooling is enabled when outdoor temperature is 1ºC lower than indoor temperature; when the former is: - < 10ºC, the compressors are deactivated and the air intake gate fully opened in order to refresh with outdoor air only (sufficient under these conditions).
  • Page 19: Parameters 8-20

    PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Antifreeze and electrical heater Antifreeze alarm set point. ºC ------ Antifreeze differential. ºC ------ By-pass time for antifreeze alarm. sec. ------ Antifreeze heater set point. ºC ------ ------ Antifreeze heater differential.
  • Page 20 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Defrost Defrosting cycle activation. flag Start defrosting pressure. End defrosting pressure. Min. time to start a defrosting cycle. sec. Min. duration of a defrosting cycle. sec. Max. duration of a defrosting cycle. min.
  • Page 21 PARAMETERS BY DEFAULT DESCRIPTION MIN. MAX. VAR. UD. PAR. ECOLEAN AIRCOOLAIR AIRCUBE Regulation  (EAC/EAR 25-43) Cooling set point. ºC 0 (EAC/EAR 472-82) ------ 9 (EAC/EAR 003-804) 2 (EAC/EAR 25-43)  (ANCM/HM 22E-43E) Differential in cooling mode. ºC 3 (EAC/EAR 472-82) 2 (ANCM/HM 52D-86D) ------ 4 (EAC/EAR 003-804) 4 (ANCM/HM 2D-52D)
  • Page 22: Safety Devices

    SAFETY DEVICES ANTIFREEZE PROTECTION (ECOLEAN). This protection is activated by the control of the unit when the outlet water temperature probe (b2), located inside the water exchanger, measures +4.5ºC and deactivates when the outlet water temperature probe reaches +5.5ºC again. When the protection is activated, the following occurs: - If the unit is operating in STAND-BY mode: the water pump goes on, as does the electrical heater for the water exchanger and the electrical heater of the water tank (if included).
  • Page 23: Instructions For Assembly And Installation

    ASSEMBLY AND INSTALLATION INSTRUCTIONS DC40. Installation instructions . Separate the cover of the instrument from the bodypart using a screwdriver as shown in Fig. 8.. 2. Open the instrument with a “hinge” movement, pivoting the cover of the instrument upwards. Fig.
  • Page 24 ASSEMBLY AND INSTALLATION INSTRUCTIONS DC41. Installation instructions: . Pass the telephone cable through the hole in the rear of the casing. 2. Fasten the rear of the casing to the box using the round-head screws. 3. Connect the telephone cable to the RJ2 terminal of the DC4. 4.
  • Page 25: Alarms

    The unit self-protects by means of safety devices; when any of these safety devices detects an anomaly, this is shown on the Climatic 40 display and, in Aircoolair units only, also on the DC4 display (even if it has a different alarm code), in order to warn the operator.
  • Page 26 AUTO - Compressor operating time (parameter C0). - Compressor operating time limit (par. C5). Disabled by default. Warning. ------ ------ Climatic 40 hardware error. AUTO Call Technical Service. Warning. ------ Climatic 40 hardware error. Unit stops AUTO Call Technical Service.
  • Page 27 Alarm, faulty communication between DC40 and - DC40 connections (see electrical diagrams). Unit stops AUTO Climatic 40. (Aircoolair only). Call Technical Service. Generic alarm. Check Climatic 40 alarm code and act by accordingly. ------ ------ Some active alarms on Climatic 40. Not used. ------ ------ Call Technical Service.
  • Page 28 ALARM LOG The Climatic 40 has a log where significant events that stop (alarms) or limit (warnings) the operation of the unit are saved. In order to enter the Alarm Log menu, proceed as explained in chapter 3 MENU in the paragraph PARAMETERS EDITING MENU, entering the password 44 instead of 22.
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
