Summary of Contents for Medeli DP760K

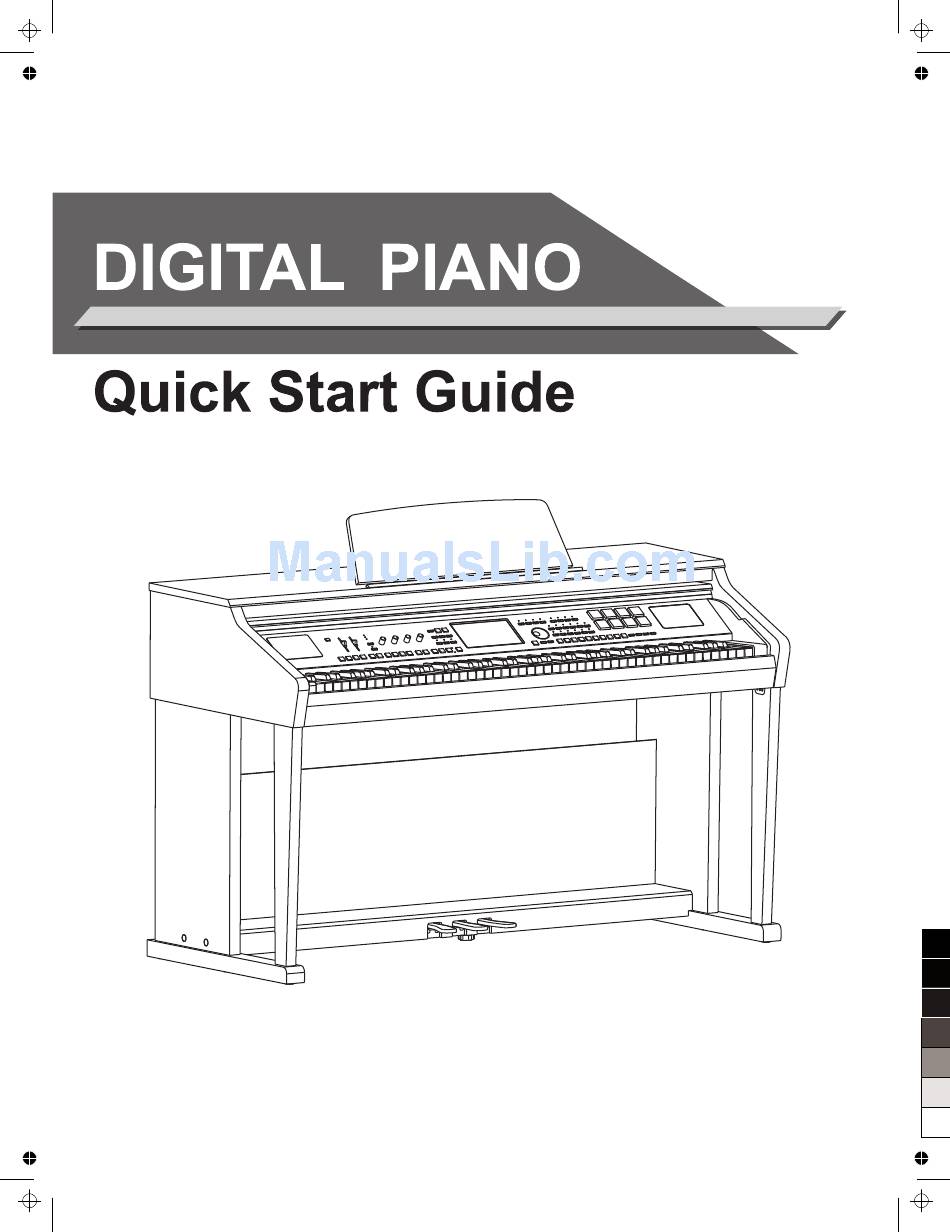

  • Page 1 AW_DP760K_Quick Start Guide_G02_151027_pa 2015 16:59:42...
  • Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    Contents Introduction Appendices Panel & Display Description Troubleshooting ..........21 Front Panel............4 Rear Panel............5 Specification ..........22 Main Display............6 Appendices Voice List............23 Setup Style List............29 Part List...............7 Song List............32 Setup Guide............7 Demo List............32 Chord List............33 Connections MIDI Implementation List........34 Power Supply............10 Connecting a pair of Headphones.....10 Connecting an Audio Equipment.......10 Connecting an MP3/CD Player......10...

  • Page 4: Panel & Display Description

    Panel & Display Description Front Panel MASTER MUSIC VOLUME VOLUME SONG STYLE SELECT SELECT REVERB CHORUS VOLUME SCORE ATTACK RELEASE CUTOFF RESONANCE ASSIGN 1 ASSIGN 2 ASSIGN 3 ASSIGN 4 TEMPO TEMPO SELECT RECORD RECORD METRO. SONG AUDIO EFFECT ON / OFF NEW SONG O.T.S.

  • Page 5: Rear Panel

    Panel & Display Description PART ON/OFF VOICE PIANO GLOBAL MODE MODE SETTING DISK LEFT RIGHT 1 IGHT IGHT DEMO ACCORDION & GUITAR & STRINGS & VOICE PIANO E.PIANO ORGAN HARMONICA BASS ENSEMBLE BRASS & FLUTE & LEAD & FX & ETHNIC &...

  • Page 6: Main Display

    Panel & Display Description Main Display Voice Chord Display voice name and octave data of each part. Display the chord name and related information. (Right1, Right2, Right3, Left) A. Chord Name How to select the voice for each part? B. Chord Mode For example: C.

  • Page 7: Setup

    Setup Piano body Left leg component Right leg component Foot pedal Rear board Screws M 6 X 12(2 PCS ) Screws M 6 X 18(4 PCS ) Hand screws (2 PCS ) Screws M 6 X40 (4 PCS ) 4X15 (5 PCS ) Tapping screw Screw caps ( 6PCS )
  • Page 8 Setup and 2 pieces screw(6) AW_DP760K_Quick Start Guide_G02_151027_pa 2015 16:59:51...
  • Page 9 Setup Power Cable AW_DP760K_Quick Start Guide_G02_151027_pa 2015 16:59:54...

  • Page 10: Connections

    Connections Power Supply Make sure that the piano is turned off. Before you switch your piano on or off, turn down the volume of piano and any connected audio equipments first. AUX IN AUX OUT MIC VOL L/MONO Connect the AC adaptor to the DC power jack instrument. Connect the power cable to the AC outlet.

  • Page 11: Connecting A Microphone

    Connections Connecting a Microphone You can connect an external microphone to MIC IN jack. AUX IN AUX OUT Adjust the input volume of the microphone by using MIC VOLUME MIC VOL L/MONO knob. Note: Turn the volume switch counter-clockwise to reach the minimum volume level when connecting or disconnecting a microphone.

  • Page 12: Basic Operations

    Basic Operations Selection Operation There are some selection interfaces: voice selection, style selection, song selection, performance selection, etc. How to select the file in these selection interfaces? For example: Location of data Preset: Location where pre-programmed (preset) data is stored. User: Location where recorded or edited data is saved.

  • Page 13: Setting Operation

    Basic Operations Setting Operation There are three types on parameter setting. ON/OFF as in the picture: On/Off Press this “ON/OFF” button to switch the keyboard touch response ON (orange font display) or OFF (gray font display). LIST (as in the picture: Curve Normal Press this “Normal”...

  • Page 14: Playing The Demos

    Playing the Demos The instrument features 4 wonderful demos. Please refer to DEMO LIST. VOICE PIANO MODE MODE Press the [VOICE MODE] and [PIANO MODE] buttons DEMO simultaneously to start playing the demo. Select your desired demo Press the Demo name on LCD or use the DATA DIAL, the [+] or the [-] button to select your desired demo.

  • Page 15: Playing Voices

    Playing Voices The piano has 672 remarkably realistic built-in voices including Piano, Woodwind, Saxophone, Drum Kits and many more Please refer to Voice List. Turn the R1 PART on PART ON/OFF Normally, the default setting is R1, or you can press PART ON/OFF [RIGHT 1] to turn the right 1 part on.

  • Page 16: Playing With A Style

    Playing with a Style The instrument features 240 styles in a variety of different musical genres. Try selecting some of the different styles (Refer to Style List) and play with the auto accompaniment. Select a style Select a style category, call up style selection display. There are 2 methods to select a style category: Panel button: press the panel [STYLE SELECT] button.

  • Page 17: Playing Songs

    Playing Songs The instrument features 10 piano songs. You can playback and enjoy these classical piano songs, or you can learn how to play them from the score display. Select a Song SONG Call up the song selection display. SELECT There are 2 methods: Panel button: press the panel [SONG SELECT] button.

  • Page 18: Recording Your Performance To Midi

    Recording Your Performance to MIDI It is convenient to record your performance, play back your RECORD performance, and share your performance. METRO. SONG Press the [METRO.] and [RECORD SONG] panel buttons simultaneously to call up the Recording Display. NEW SONG A blank song (“New Song”) is called up and the system is in recording standby mode.

  • Page 19: Recording Your Performance As Audio

    Recording Your Performance as Audio You can also record your own performance as CD quality audio file. The procedure is very simple. Insert your USB flash drive to the USB slot. RECORD RECORD AUDIO AUDIO Press the [RECORD AUDIO] button to start recording. The [RECORD AUDIO] lights up.

  • Page 20: Using A Usb Flash Drive

    Using a USB Flash Drive By connecting a USB flash drive to your instrument, you can save data you’ve created to the connected device, as well as read data from the connected device. Note Compatible USB flash drive Recommended Brand: KINGSTON, SANDISK, SONY, LEXAR, TRANSCEND Format: FAT 16/32 Capacity: 1G,2G,4G,8G,16G,32G...

  • Page 21: Troubleshooting

    Troubleshooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm the power is turned ON or OFF. The R1/R2/R3/L voice volume (Mixer) settings could be set to low. Make No sound when the keyboard is played.

  • Page 22: Specification

    Specifications Keyboard Tempo 88 keys 30-280, Tap Tempo Display Performance Memory 10 (BANK) x 6 (M1-M6), FREEZE, STORE 7" TFT，800 x 480 color touch screen Multi Pad Polyphony Other Control Voice MASTER VOLUME SLIDER, SELECT, 4 KNOBS, EFFECT 672 (including 256 GM2 instrument voices and 17 drum kits) ON/OFF, GLOBAL SETTING, MIXER, VOICE DIRECT BUTTONS, DATA DIAL, +, -, PART ON/OFF BUTTONS, Effect...

  • Page 23: Voice List

    Voice List Full Name LCD Name Warm EP 1 Warm EP 1 Choir EP 1 Choir EP 1 PIANO Acoustic Grand Piano Grand Piano Wah EP 1 Wah EP 1 Acoustic Grand Piano (wide) EP & Strings 1 Grand Piano/Wide EP&Strings 1 Acoustic Grand Piano (dark) Tremolo EP 2...
  • Page 24 Voice List Tango Accordion 2 Tango Accordion 2 Slap Bass 2 Slap Bass 2 Synth Bass 1 Synth Bass 1 Guitar & Bass Acoustic Guitar (nylon) Nylon Guitar Synth Bass 2 Synth Bass 2 Ukulele Acoustic Bass 2 Ukulele Acoustic Bass 2 Acoustic Guitar (nylon + key off) Acoustic Bass 3 NylonGtr/KeyOff...
  • Page 25 Voice List Choir Aahs Choir Aahs Octave Orchestra Hit Octave OrchHit Choir Aahs 2 Choir Aahs 2 Brass & Saxophone Voice Oohs Voice Oohs Trumpet Trumpet Humming Humming Dark Trumpet Soft DarkTrump Soft Anlong Voice Anlong Voice Trombone Trombone Synth Voice Trombone 2 Synth Voice Trombone 2...
  • Page 26 Voice List Sweet Soprano Sax Sweet Soprano Sax Pad 2a (sine pad) Sine pad Alto Sax 2 Alto Sax 2 Pad 3 (polysynth) Poly Synth Soft Alto Sax Soft Alto Sax Pad 4 (choir) Choir Pad Super Alto Sax Pad 4a (itopia) Super Alto Sax Itopia Pad Sax Band...
  • Page 27 Voice List Rising Rising Train Train Congregate Congregate Jetplane Jetplane Starship Starship FX & Effects FX 1 (rain) Burst Noise FX 1 Rain Burst Noise FX 2 (soundtrack) Applause FX 2 SoundTrack Applause Prelude Prelude Laughing Laughing FX 3 (crystal) FX 3 Crystal Screaming Screaming...
  • Page 28 Voice List Church Organ & Choir ChurchOrg&Choir Marimba & Vibraphone Marimba&Vibra Church Organ & Strings Wood Drum ChurchOrg&Str Wood Drum Harmonica & Acoustic Guitar Harmonica&AcGtr Xylophone Xylophone Harmonica & Strings Harmonica&Str Xylophone 2 Xylophone 2 Acoustic Guitar & Flute AcGtr&Flute Tubular Bells Tubular Bells Acoustic Guitar &...

  • Page 29: Style List

    Style List R&B Ballad 1 R&&B Ballad 1 Name LCD Name Guitar Ballad Guitar Ballad 8BEAT & 16BEAT Ballad Rock Ballad Rock 8Beat Ballad 8Beat Ballad Piano Pop 1 Piano Pop 1 8Beat Piano 8Beat Piano Soft Ballad Soft Ballad 8Beat 1 8Beat 1 Natural Ballad...
  • Page 30 Style List Country Pop 2 CntyPop2 Techno 2 Techno 2 Bluegrass 2 Bluegrs2 Progressive Progressive 2/4 Country 2/4Cntry Rap 1 Rap 1 Country Quick Steps QuickStp Rap 2 Rap 2 Country Folk CntyFolk Disco Disco Country Shuffle CnyShufl Soft Disco Soft Disco Latin &...
  • Page 31 Style List Pianist Pianist 1 Pianist1 Pianist 2 Pianist2 Pianist 3 Pianist3 Jazz 1 Jazz1 Jazz 2 Jazz2 Jazz Pub JazzPub Piano Rock PianoRk Pop Bossa PopBossa March 1 March1 March 2 March2 Piano Beat PianoBt Piano Bar PianoBar Blues Blues Pop Waltz PopWaltz...

  • Page 32: Song List

    Song List Song Name Mazurka Tchaikovsky Waltz Salut d' Amour Gavotte Neapolitan Song Minuet in D Prelude in E Barcarole Sonata K.331.I Waltz in G-Sharp Demo List Demo Name Short Name Demo1 Demo1 Demo2 Demo2 Demo3 Demo3 Demo4 Demo4 AW_DP760K_Quick Start Guide_G02_151027_pc 2015 16:24:24...

  • Page 33: Chord List

    Chord List Chord Name Abbreviation Normal Voicing Display for Root "C" Major 1+3+5 Sixth 1+(3)+5+6 Major seventh 1+3+(5)+7 Major seventh add sharp eleventh M7(#11) 1+(2)+3+#4+5+7 CM7(#11) Add ninth 1+2+3+5 C(9) Major seventh ninth M7(9) 1+2+3+(5)+7 CM7(9) Sixth ninth 6(9) 1+2+3+(5)+6 C6(9) Augmented 1+3+#5...

  • Page 34: Midi Implementation List

    MIDI Implementation List AW_DP760K_Quick Start Guide_G02_151027_pc 2015 16:24:24...
  • Page 35 AW_DP760K_Quick Start Guide_G02_151027_pc 2015 16:24:24...
  • Page 36 DP760K_Quick Start Guide_G02 AW_DP760K_Quick Start Guide_G02_151027_pc 2015 16:24:25...
