4. PREPARATIONS BEFORE INSTALLA-
TION

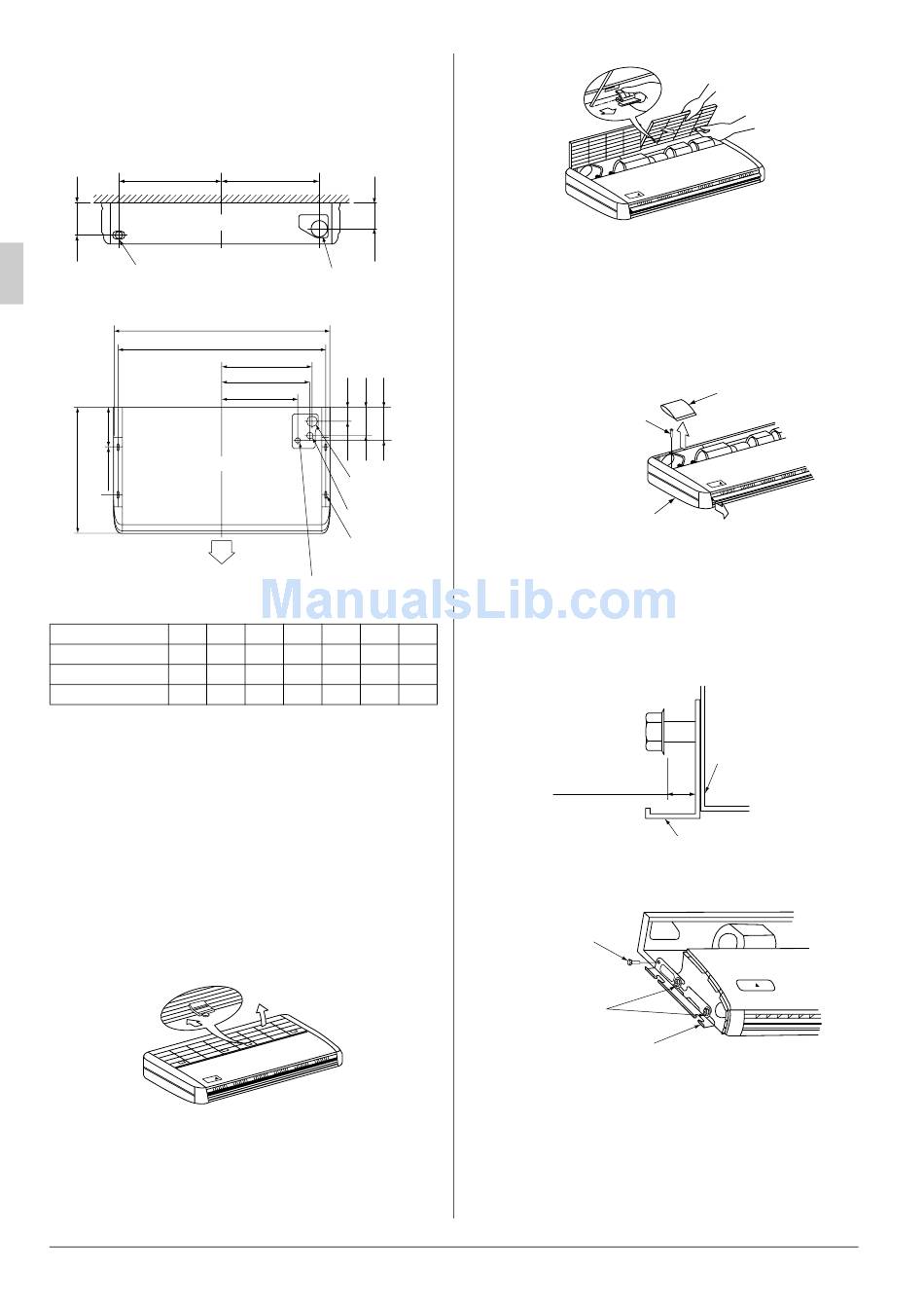

(1) Relative positions of indoor unit, suspension bolt, pip-
ing hole, drain piping hole, and electric wire hole posi-
tion. (Refer to Fig. 2)
F
Front view
Left side piping hole
A (Decoration panel)
B (Suspension bolt pitch)
False ceiling view
Air outlet
Fig. 2
Model A B
FXHQ32M(A)VE 960 920
FXHQ63M(A)VE 1160 1120
FXHQ100M(A)VE 1400 1360
(2) Make the suspension bolt hole, piping hole, drain pip-
ing hole.
• Refer to the paper pattern for installation for hole posi-
tions.
• Fix the positions for suspension bolt, piping hole, drain
piping hole, and electric wire hole, and make the open-
ings.
(3) Detach the parts for indoor unit.
1) Detach the suction grille.
• Slide the suction grille fixing knobs (2 parts) backward
(arrow direction) and open the suction grille widely.
(Refer to Fig. 3)
• Keep the suction grille opened. Holding the knob on the
back of suction grille, pull to the front direction to
remove. (Refer to Fig. 4)
Fig. 3
4
G
Rear side piping hole
( 100 )
φ
C
D
E
Top side drain
piping hole
Top gas
piping hole
Suspension
bolt (×4)
Top liquid hole
(length : mm)
C D E F G
390 375 310 400 375
490 475 410 500 475
610 595 530 620 595
Fig. 4
2) Detach the dressing boards (left and right).
• Remove the side panel fixing screw 1) and pull to the
front direction (arrow direction) to remove.
(Refer to Fig. 5)
• Pull out of the accessories.
Dressing board securing
screw (M4)
Dressing board
3) Remove the hanger bracket.
• Loosen two hanger bracket setting bolts (M8) (two on
each side) on each side for less than 10 mm.
(Refer to Fig. 6 and 7)
• Remove two hanger bracket fixing bolts (M5) on the
rear side. Detach the hanger bracket by pulling back-
wards. (Refer to Fig. 7)
Max. exposed
thread 10 mm
Hanger bracket
Fig. 6
Hanger bracket
fixing screw (M5)
Hanger bracket
setting bolt (M8)
Hanger bracket
Fig. 7
Accessories
Fig. 5
Indoor unit
