4. PREPARATIONS BEFORE INSTALLATION

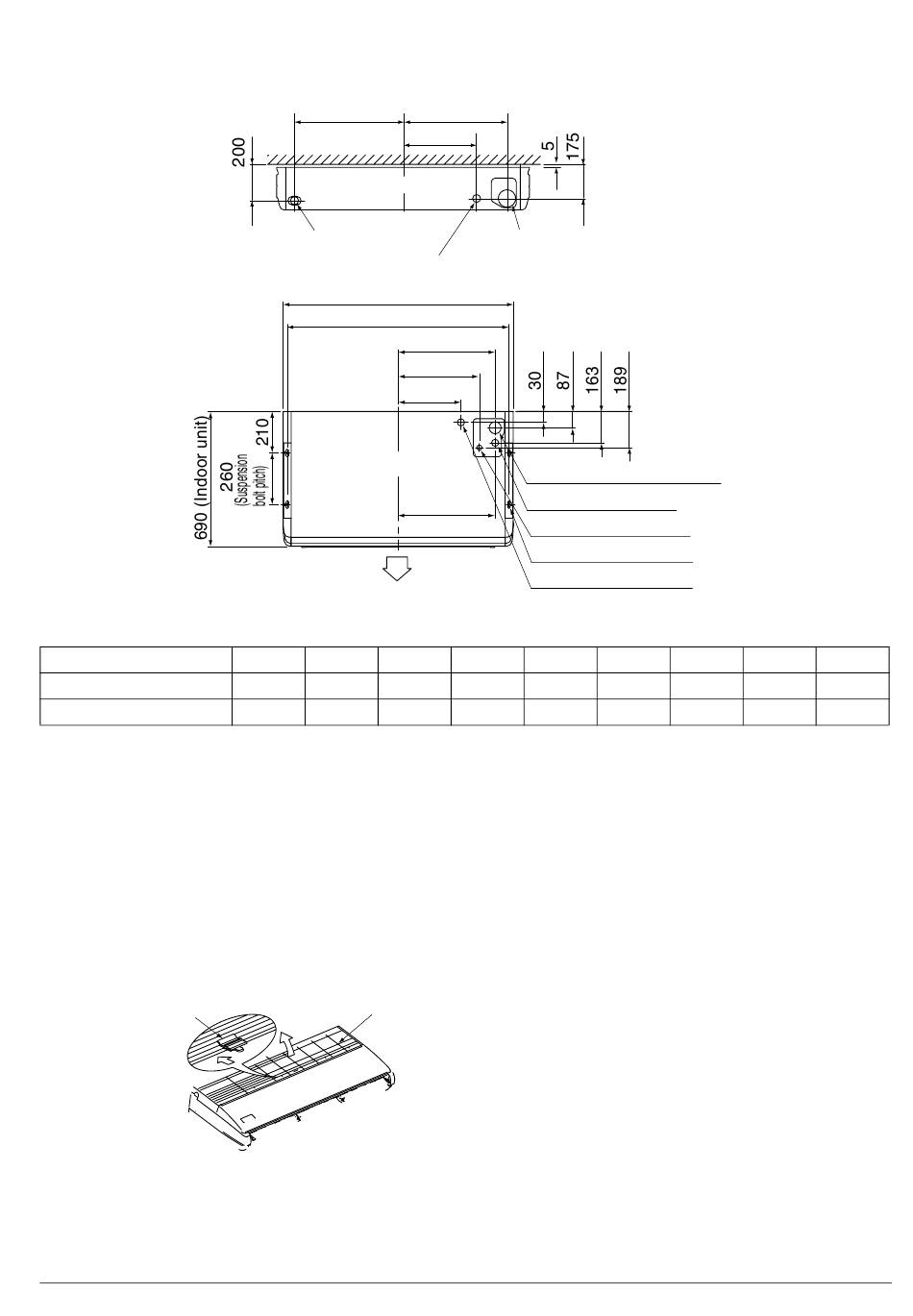

(1) Relation of holes for indoor unit, suspension bolt position, piping and wiring.
Model
Type 71
Type 100, 125, 140
(2) Make holes for suspension bolts, refrigerant and drain piping, and wiring.
• Refer to the paper pattern for installation.
• Select the location for each of holes and open the holes in the ceiling.
(3) Remove the parts from the indoor unit.
(3-1) Detach the suction grille.
• Slide the locking knobs (×3) on the suction grille inward (direction of arrows) and lift upwards.
(Refer to Fig. 1)
• With the suction grille open, remove the suction grille forward, holding on to the rear tabs on the suction
grille. (Refer to Fig. 2)
6
G
Front view
Left side piping hole
A (Indoor unit)
B (Suspension bolt pitch)
False ceiling view
Air outlet
A B
1270 1230 533
1590 1550 693
H
J
Rear side piping hole(φ100)
Rear wire lead-in hole
C
D
E
Top side drain piping hole
Top gas piping hole
F
Top liquid piping hole
Suspension bolt (×4)
Top wire lead-in hole
(Length : mm)
C D E
479 425
639 585
F G H
530 553 532
690 713 692
J
415
575
