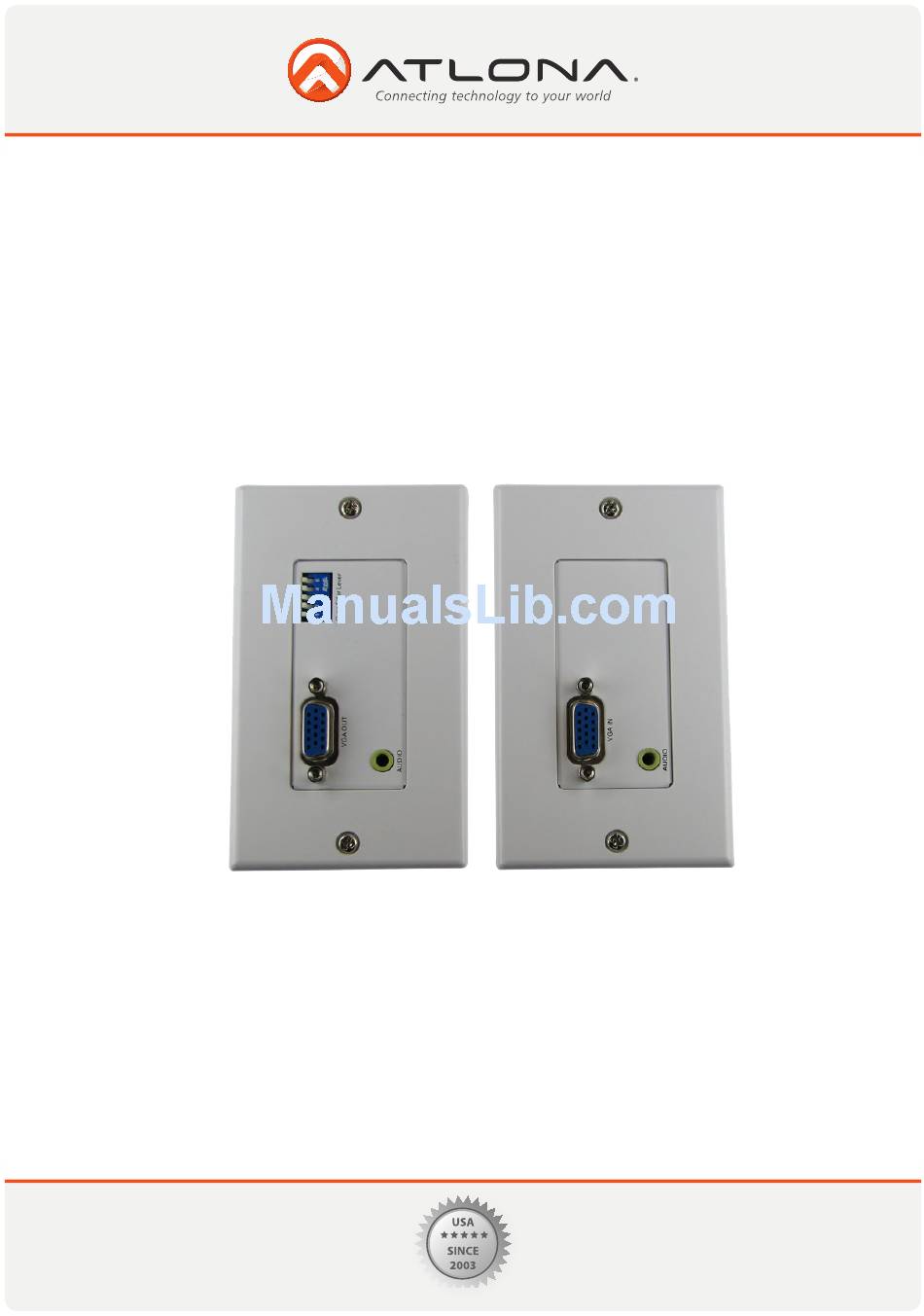

- Page 1 VGA with Stereo Audio Extender Wall Plate Kit AT-AVGA-SR User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 5.1. AT-AVGA-S (Sender) 5.2. AT-AVGA-R (Receiver) 6. Installation 7. Wiring Information & Coding 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
(AT-AVGA-R) via Cat-5 or Cat-6 Cable. The receiver unit is then connected to the desired display. This unit also comes with a Sync Fitter Level switch. The AT-AVGA-SR is perfect for applications involving extension of VGA signal from any PC to a moni- tor. -

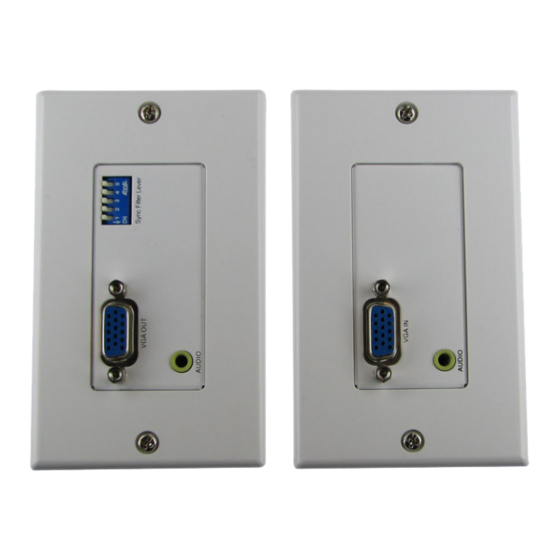

Page 4: Panel Description
1. GND: For connecting to the earth wire. 2. Video Output: VGA (HD-15 Pin Female Connector) 2. Output: CAT5 A 3. Sync Fitter Level switch: Switch only used for H/V 3. Output: CAT5 B adjustment Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Installation
3. Connect AT-AVGA-S (Sender Unit) extender Audio Input to PC with audio cable 4. Connect AT-AVGA-SR (Sender Unit and Receiver Unit) with two CAT.5/6 cables. 5. Connect AT-AVGA-R (Receiver Unit) extender Video Output to monitor using Male to Male VGA cable. -
Page 6: Safety Information
It may also cause damage to your AT-AVGA- SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
