FingerTec TA200 Plus Installation Manual

Installation Guide

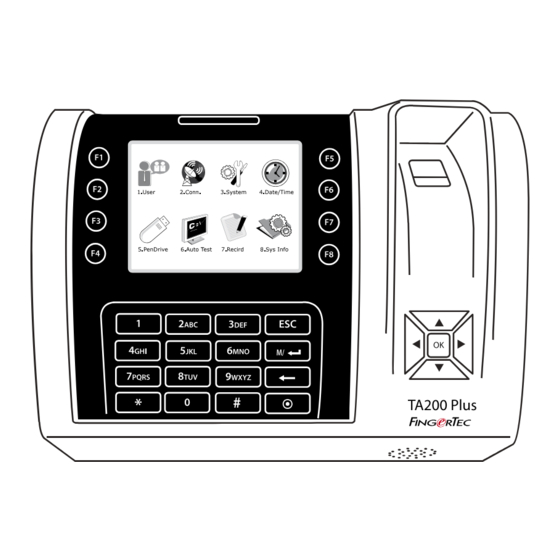

TA200 Plus
TA200 Plus
Fingerprint Color Multimedia for
Time Attendance System
© 2014 Timetec Computing Sdn Bhd. All rights reserved.• 092014

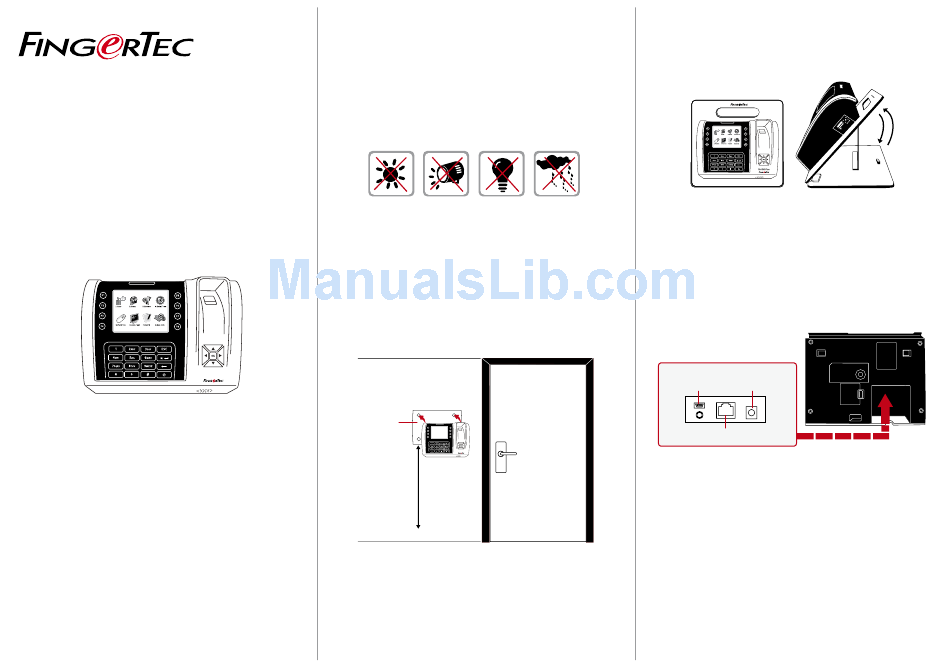

Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting of Terminals
A. Mount on WAll
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, drill the
screws into the wall to hang the back plate.
Refer to Appendix II for dimensions and measurements of instal-
lation.
b. Flexi- Kit
FingerTec offers flexi-kit for all its time attendance models. Attach
the terminal on the flexi-kit for convenience.
Step 3
Wiring for Power Supply
The power jack is positioned at the rear of the terminal, labeled
Power Adapter Port in the below diagram.
POWER
USB PORT ADAPTER PORT
TCP/IP PORT (LAN)
Step 4
Setting Up Data Communications
(Skip this step if you are using USB flash disk to transfer data)
TCP/IP – LAN Connection
For TCP/IP connection, plug the special RJ45 jack into the TCP/IP
(LAN) Port of the terminal. Connect the other end (normal RJ45
jack) to the local area network hub or a PC. Configure the device ID,
IP address, subnet mask and Gateway in the terminal (refer to the
hardware user manual for details).
