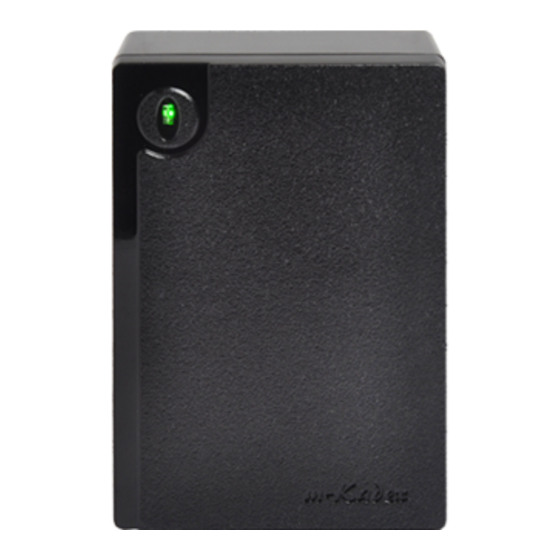

FingerTec m-Kadex Installation Manuals

Installation Guides
m-Kadex & k-Kadex
Card Reader for Time Attendance &
Door Access Control System
w w w . f i n g e r t e c . c o m

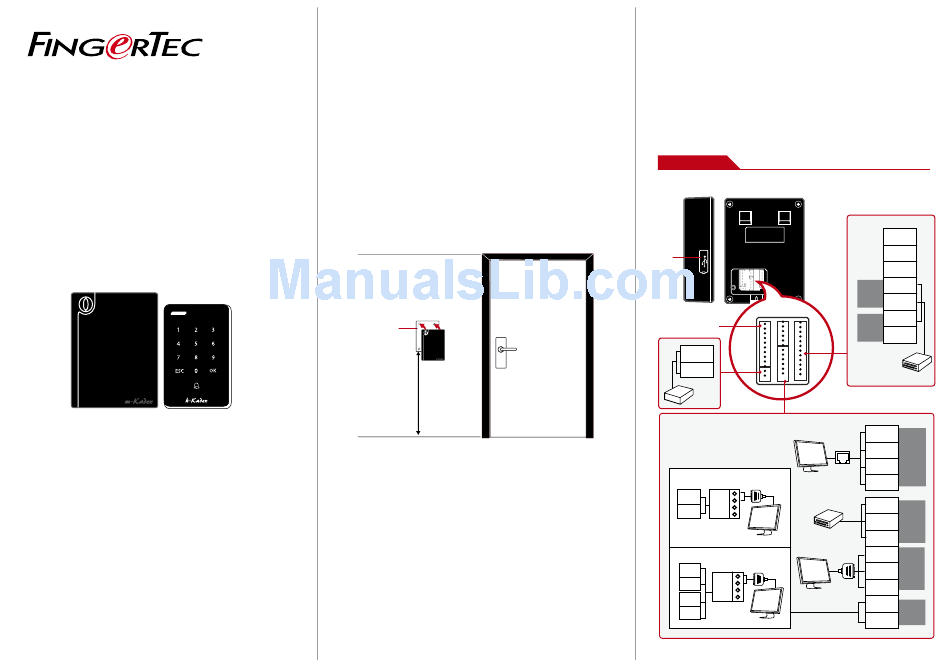

Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meters.
Step 2
Mounting Terminals on a Wall
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, drill the
screws into the wall to hang the back plate.
Refer to Appendix II for dimensions and measurements of instal-
lation.
Step 3
Wiring for Power Supply
The power input ports for these models are located at the rear of
the terminals. There is no adapter plug supplied with the models,
instead you need to source for power cables (red and black cables)
to connect the power from the terminal to the AdapTec.
m-Kadex
USB
Port
J7 J2
AL- RJ45-1
AL+ RJ45-2
NC RJ45-3
COM RJ45-6
NO J12
BUT WDO
GND WD1
SES GND
BELL+ BELL- RXD
TXD
J1 GND
485A
V3.6 - 09032
485B
. .
Door Lock connector. .
.
.
.
Refer to Appendix I .
.
.
. .
.
.
.
.
.
.
.
. .
.
.
.
GND .
.
.
.
.
.
.
. .
.
.
+12V .
.
DC12V 3A
Power
Supply
TCP/IP
1. RS485 Single Connection
485B RX+
485A
RX-
RS232/RS485
Data Converter
3rd party controller
with 26-bits wiegand
input
2. RS485 Network Connection
485B
RX+
RS232
485A
cable
RX-
485B
RS232/RS485
Data
485A
Converter
BEEP
GLED
RLED
INWD0
Wiegand
IN
INWD1
GND
Power
OUT
+12V
3rd party
controller with
26-bits wiegand
output
RJ45-1
RJ45-2
TCP/IP
RJ45-3
RJ45-6
WD0
Wiegand
WD1
OUT
GND
RXD
RS232
TXD
GND
485+
RS485
485-
