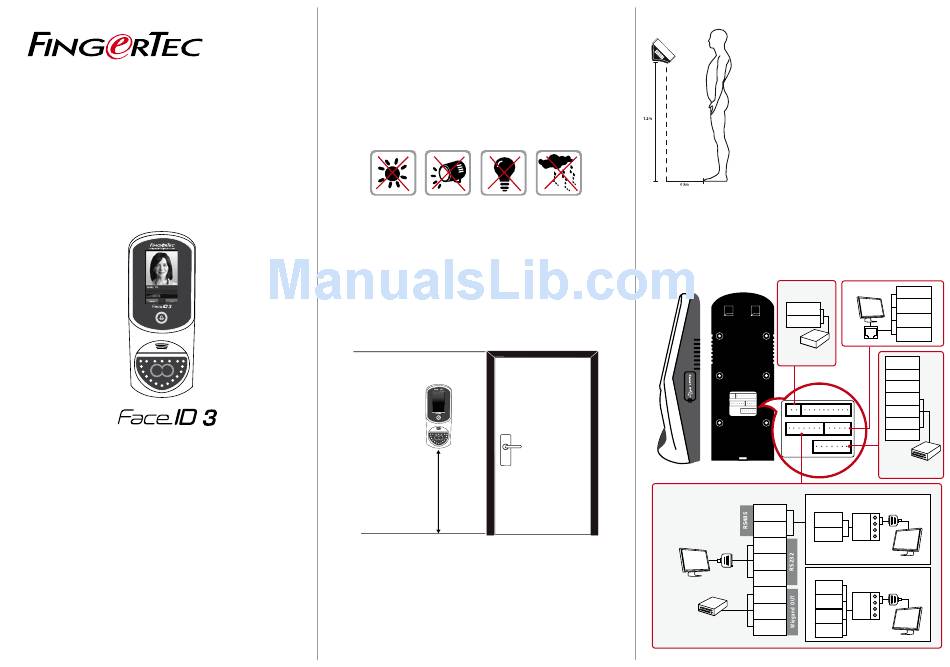

FingerTec FaceID 3 Installation Manual

Installation Guide

Face Recognition System for
Door Access
© 2015 Timetec Computing Sdn Bhd. All rights reserved • 012015
Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations prone to high moisture
or condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting Terminals
support@fingertec.com
3
4 feet / 1.2 meter
(recommended)
•
After measuring the height accordingly and make relevant marking
on the wall, drill the screws into the wall to secure the back plate.
•
Attach the terminal to the back plate and tighten the screws. Refer to
Appendix II for dimensions and measurements of installation.
INSTALLATION TIPS:
A good installation location of Face ID 4
must
1 - Avoid sunlight
2 - Be 2 meters away from any light source
e.g. ceiling direct flourescent light
3 - Suggested 1.2m from the ground level
(meas-ure from ground to the camera)
Step 3
Wiring for Power Supply
Use power cables (black and red) to connect to a linear power sup-
ply with specifications of 12VDC 3A (Marked A).
POWER
SUPPLY (A)
GND
+12V
DC12V3A
Power Supply
RS232/RS485 SERIAL PORT
1. RS485 Single Connection
485-
485+
485+
485-
GND
TXD
RS232
2. RS485 Network Connection
cable RXD
485+
GND
485-
WD1
485+
3rd party controller with
26-bits wiegand input WD2
485-
Door Lock connector. Refer to Appendix I
TCP/IP PORT
RJ45-1
RJ45-2
RJ45-3
RJ45-6
TCP/IP
BEEP
GLED
RLED
INWD0
INWD1
GND
+12V
3rd party
controller with
26-bits wiegand
output
RX+
RX-
RS232/RS485
Data Converter
RX+
RX-
RS232/RS485
Data Converter
