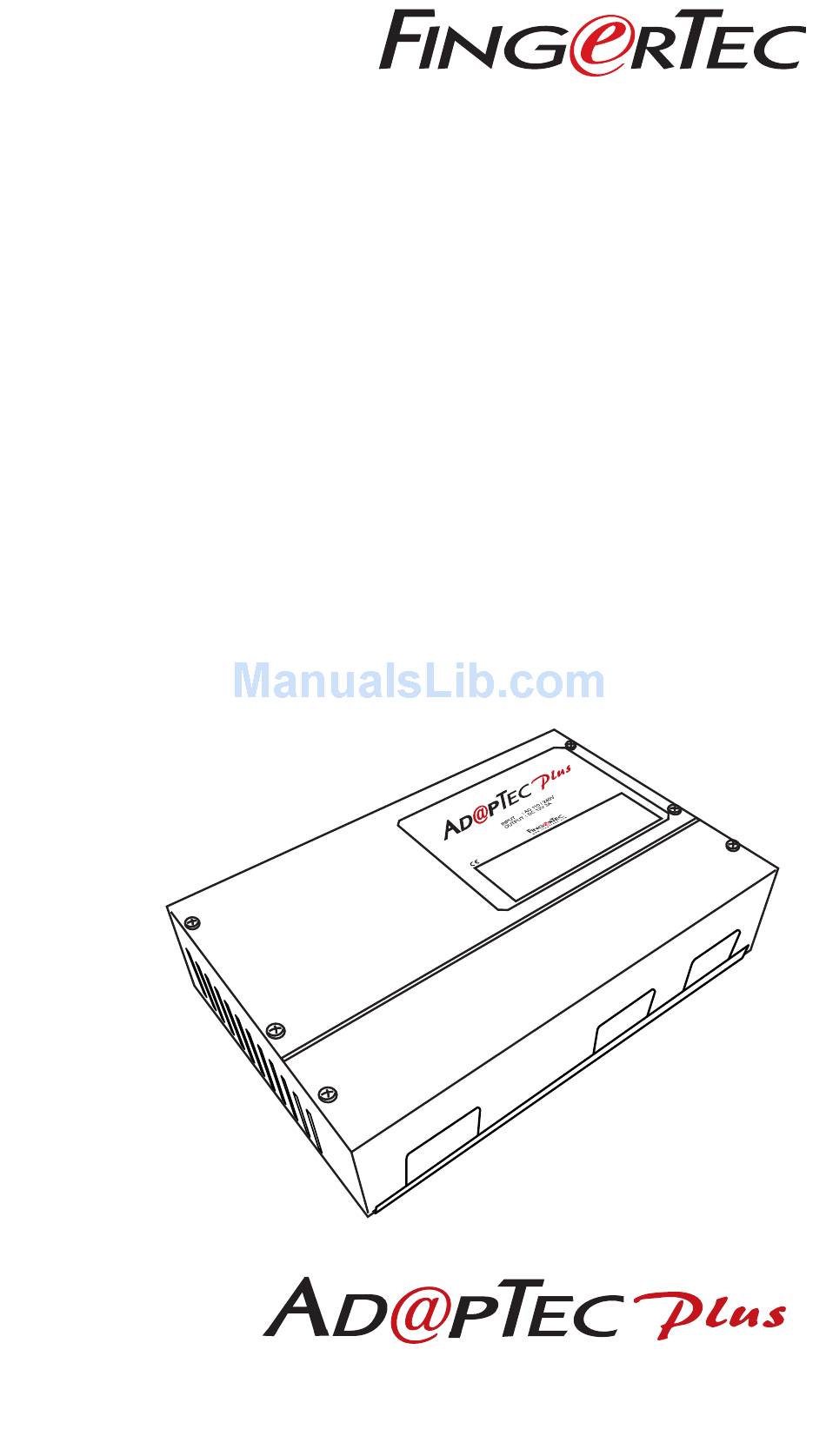

  • Page 1 Installer Guide...
  • Page 2 Power Up Terminals & Door Lock Systems A single AdapTec Plus can provide power simultaneously to a maximum 2 units of FingerTec terminals and 2 sets of door lock accessories such as EM Lock and drop bolt in one single system installation.

  • Page 3: Specifications

    Seamless Integration with FingerTec Terminals Mix and match the FingerTec terminals via AdapTec Plus for a cost effec- tive access control system suitable for small and medium sized offices. Choose a DIY Metal Casing for Cleaner Installation Store an AdapTec Plus and a backup battery in an exclusive FingerTec DIY metal casing, providing a cleaner installation.
  • Page 4 UNDERSTANDING THE DESIGN AdapTec Plus consists of 2 main modules and a timer: Power supply/power input module Access control/power output module Door lock timer Power supply/power input module This portion is to be connected to power source with AC110~240V. AC current will be supplied into this side and a DC 12V 3A current will be generated as output.
  • Page 5 These are the power outputs from AdapTec. Refer to the wiring diagrams in page 3, for details. Power LED – a lit LED indicates power supply/power input module is working. EM lock LED– a lit LED indicates that the AdapTec Plus is working to power up door lock system. Contact your local reseller or support@fingertec.com...

  • Page 6: Wiring Diagrams

    STEP 2 • Connect AdapTec Plus to a Power Source Power Supply/Power Input Module AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Turn on the power to use FingerTec AC900 for time attendance only.

  • Page 7: Door Access

    Power Supply/Power Input Module AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Turn on the power to use FingerTec AC900 for door access con- trol only or for time attendance and door access control simultaneously...
  • Page 8 Input +12V DC 12V Rechargeable Backup Battery Connection Points STEP 2 • Connect AdapTec Plus to a Power Source Power Supply/Power Input Module AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Now you can turn on the power to use the system for time at-...
  • Page 9 Glass (NC) Connection Points Connection ON-OFF Points Key Switch (NC) STEP 2 • Connect AdapTec Plus to a Power Source Power Supply/Power Input Module AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Turn on the power to use the model for door access control...
  • Page 10 Connect AdapTec Plus to a power source Power Supply/Power Input Module AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Turn on the power to use FingerTec Face ID 2 for time attend- ance.
  • Page 11 AC110~240V L - Live Blue N - Neutral E - Earth Green STEP 3 • Turn on the power to use FingerTec Face ID 2 for door access control only or for time attendance and door access control simultane- ously.
  • Page 12 FingerTec terminals. the AdapTec Plus has an output of DC12V and it is suitable to use with an alarm siren that has the same power input. You do not need to source and additional DC12V power supply for this purpose.
  • Page 13 2. You can do it from the terminal via Menu > Turn Off Alarm to turn off the alarm siren. You do not need to restart the AdapTec Plus. The alarm siren will return to standby mode after you perform the steps at the reader. (Recommended)
  • Page 14 The diagrams below only highlight the use of an EM lock during installation. You may opt to use a dropbolt/deadbolt/door strike instead. Please consult a qualifi ed techni- cian/installer before proceeding with the installation. install FingerTec WOODEN DOOR AC900/R2 on a wall, drill WALL WALL 5 holes as shown.
  • Page 15 12V 3A DC Power Output AC110/240V Power Input AdapTec Plus Note: Refer to AdapTec user guide for wiring diagrams. Computer/ To FingerTec®Series Network Hub/ 12V Rechargeable Bat- Network Switch tery ABOVE CEILING CEILING BELOW Note: It is recommended to CEILING...
  • Page 16 The diagrams below only highlight the use of an EM lock during installation. You may opt to use a dropbolt/deadbolt/door strike instead. Please consult a qualifi ed techni- cian/installer before proceeding with the installation. To install a FingerTec model on the wall, drill GLASS DOOR 5 holes as shown.
  • Page 17 12V 3A DC Power Output AC110/240V Power Input AdapTec Plus Note: Refer to AdapTec user guide for wiring diagrams. Computer/ To FingerTec®Series Network Hub/ Network Switch Rechargeable ABOVE CEILING Battery CEILING BELOW CEILING Note: It is recommended to place out of sight, either above a ceiling or wall-mounted.
  • Page 18 FINGERTEC EXCLUSIVE ACCESSORIES For more accessories go to accessory.fi ngertec.com. AdapTecTA AdapTec AC Description Emergency Break Glass RFID Key Chain HID Card / MiFare Card / Release Button Contactless RFID Card Release Button 5V/ 12V Mini UPS Alarm Siren With...

  • Page 19: Other Resources

    OTHER RESOURCES Information About FingerTec TO LEARN ABOUT GO TO? Company and the products www.fingertec.com The latest updates Facebook Fan Page: FingerTec Worldwide Twitter: FingerTec Worldwide To subscribe for FingerTec Newsletter: www.fingertec.com/subscribe-R/newsletter.html Technical Tips and Latest user.fingertec.com Product Updates and...
  • Page 20 : AC 110 ~ 240V OUTPUT : DC 12V 3A Fix the AdapTec Plus onto the wall by tightening the screws into the 4 holes. www.fingertec.com © 2011 FingerTec Worldwide Sdn. Bhd. All rights reserved. • Printed in Malaysia. 102011...
