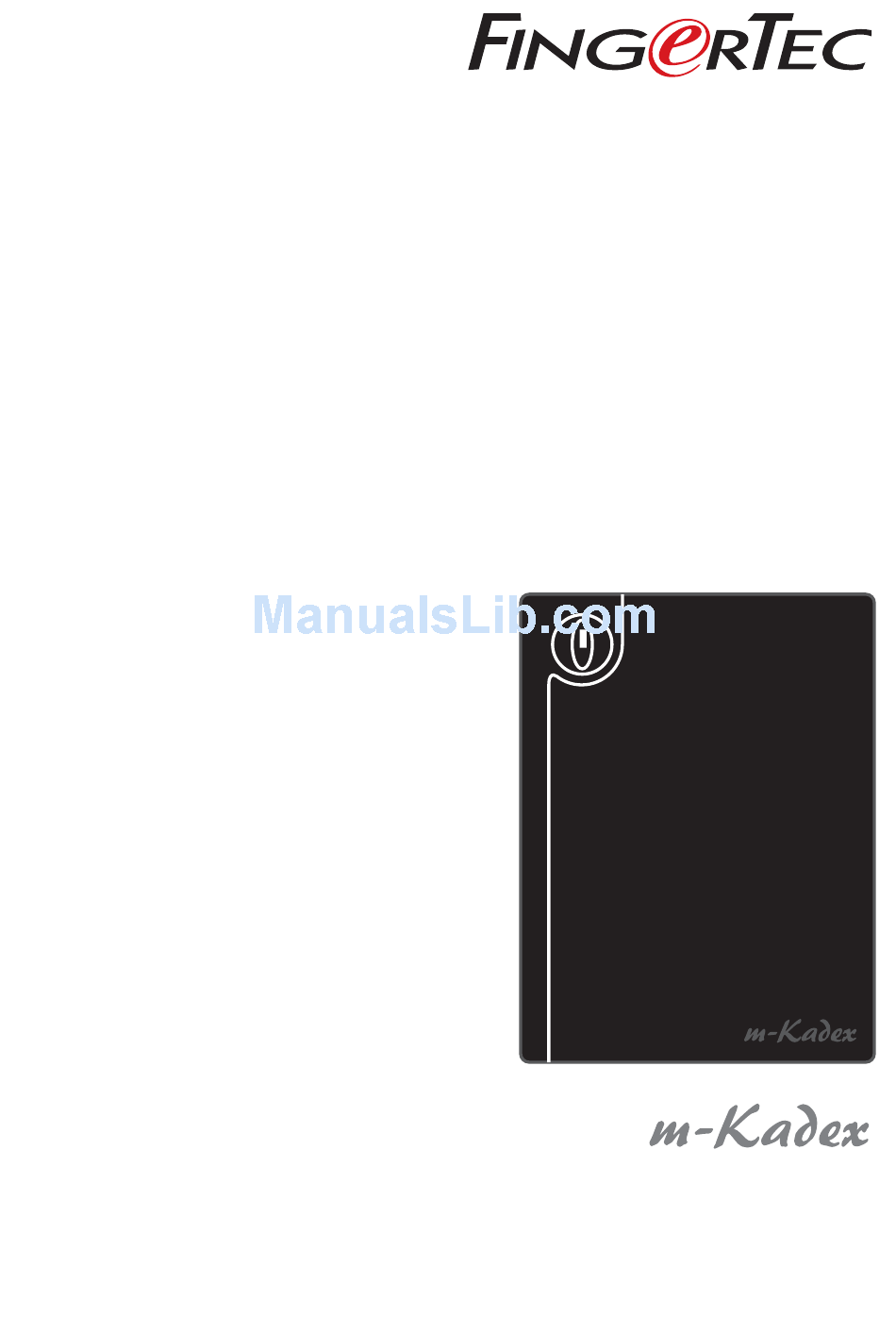

- Page 1 Simple Card Reader for Door Access & Time Attendance System User Guide...
- Page 2 Using USB to Download/Upload Data Communication Key To Download Attendance Logs Only To Download User Data and Attendance Logs into USB Flash Disk To Upload User Data from USB Flash Disk to m-Kadex CHAPTER 4 • MANAGING USER 14-15 Enrolling Administrator Card...
-
Page 3: Included Accessories
1 • GETTING STARTED Viewing the User Guide in the Internet The User Guide is available in the package when you purchase FingerTec m-Kadex. The user guide is also published online at fingertec.com and user.fingertec.com. Choose the language you prefer to view the User Guide. - Page 4 LCD. m-Kadex functions similarly like Kadex but management of the terminals have to be done from the software. The m-Kadex can enrol new cards and delete cards at the terminal only if the administrator card is available. Absence of administrator card would not allow any operations to be carried out at the terminal.
- Page 5 TAMPER SWITCH m-Kadex comes with a tamper switch located at the rear of the terminal. During in- stallation, the tamper switch is compressed against a wall. Any attempt to dismantle...
- Page 6 3 • CONNECTION – SYNCING M-KADEX Installation Guide NOTE The installation guides is for installer reference only Communication Diagrams At the rear of every terminal, there are connections available for power, communica- tion and door access. Refer to the following diagrams for the terminals you require.
- Page 7 Descriptions of For NC (normally close) door lock system Available ACCESS CONNECTION PORT Connections EM lock (NC) USB PORT Emergency Linking with USB flash disk for re- break glass (NC) mote data transfer. Key switch (NC) Release button Door sensor RJ45-1 RJ45-2 BELL+...
- Page 8 To start using the terminal with Ingress, you must connect the terminal to Ingress and perform online activation. Ingress reads the serial number of your terminal and sends it for verification at the FingerTec server via Internet.
- Page 9 Connecting Terminal to Ingress THE FIRST TIME CONNECTION When connecting the Terminal to the Ingress for the first time, you must use TCP/IP to form the connection. The Ingress allows you to configure the communication settings and the door lock settings. An IP address is important, as it is a unique address of the terminal in the LAN network.
- Page 10 To add multiple devices at one go, click Scan Device and Scan. IP Address range can be set to search for devices. The bigger the range of IP address, the longer time needed to scan for devices. Devices found will be displayed on the screen. Select the preferred de- vices and click Add Selected Device to add them and a window containing the settings...
- Page 11 HOW TO CHANGE IP ADDRESS Terminal does not have a keypad thus to change the IP address users can do it via In- gress software. Steps to change IP address via Ingress are as below. Go to Doors tab and click on Door.
- Page 12 Once done, a popup window will appear indicating the update is successful. Click to proceed. The Ingress software has to be synced with all relevant devices in order for the changes to take effect. A small window will appear at the bottom left corner of the screen once any changes are made.
- Page 13 Make sure that the user data already has been loaded into the USB flash disk before doing this operation. Plug in a USB flash disk into m-Kadex’s USB port > Wave the administrator card 11 times at the induction area > LED will lit up in green to iindicate that the upload process is running >...
- Page 14 4 • MANAGING USER Enrolling Administrator Card Administrator card is the first card to be enrolled into the terminal. Administrator card cannot be used to report attendance or gain access. System administrator must main- tain 2 cards, an administrator card to operate terminal, and a normal card for attend- ance and access.
- Page 15 Deleting attendance logs in m-Kadex In standby mode, the m-Kadex’s LED blinks in green > Wave the administrator card 7 times at the induction area > The LED will lit up in green to indicate that the deletion process is running > The LED will blinks in green once > the process is completed...
- Page 16 All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system, without written permission from FingerTec Worldwide Sdn Bhd. Every precaution has been made to supply complete and accurate information.
- Page 17 © 2013 FingerTec Worldwide Sdn. Bhd. All rights reserved. • 072013 CONTENTS...
