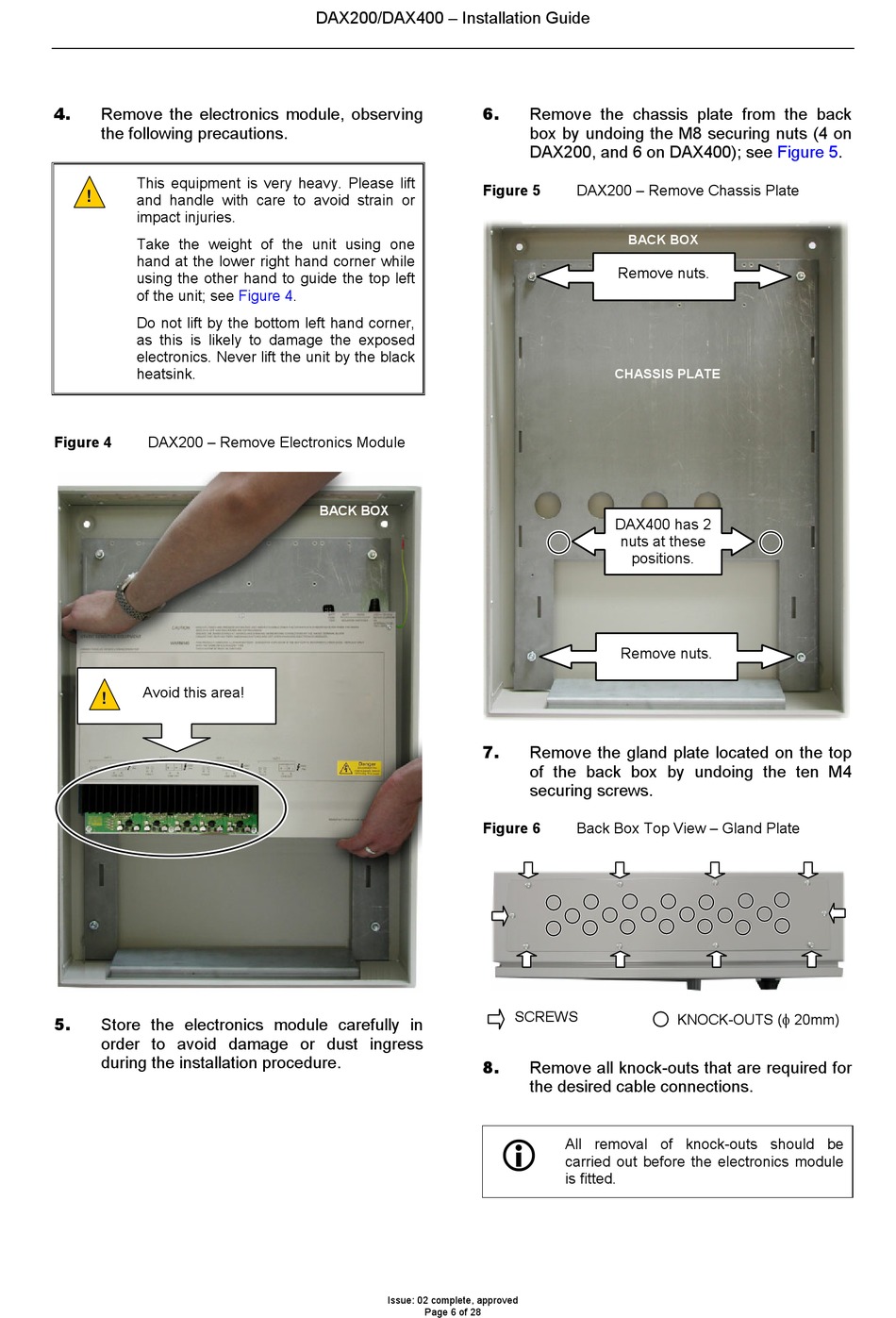

ASL INTERCOM DAX200 Installation Manual page 6

4.
Remove the electronics module, observing
the following precautions.
This equipment is very heavy. Please lift
!
!
and handle with care to avoid strain or
impact injuries.
Take the weight of the unit using one
hand at the lower right hand corner while
using the other hand to guide the top left
of the unit; see
Do not lift by the bottom left hand corner,
as this is likely to damage the exposed
electronics. Never lift the unit by the black
heatsink.
Figure 4 DAX200 – Remove Electronics Module
Avoid this area!
!
!
5.
Store the electronics module carefully in
order to avoid damage or dust ingress
during the installation procedure.
DAX200/DAX400 – Installation Guide
Figure 4.
BACK BOX
Issue: 02 complete, approved
6.
Remove the chassis plate from the back
box by undoing the M8 securing nuts (4 on
DAX200, and 6 on DAX400); see
Figure 5 DAX200 – Remove Chassis Plate
7.
Remove the gland plate located on the top
of the back box by undoing the ten M4
securing screws.
Figure 6 Back Box Top View – Gland Plate
SCREWS
8.
Remove all knock-outs that are required for
the desired cable connections.
All removal of knock-outs should be
carried out before the electronics module
is fitted.
Page 6 of 28
Figure
BACK BOX
Remove nuts.
CHASSIS PLATE
DAX400 has 2
nuts at these
positions.
Remove nuts.
φ
KNOCK-OUTS (
5.
20mm)
