C11G (Rev.7.1) User Manual

4. Functional Block Diagrams

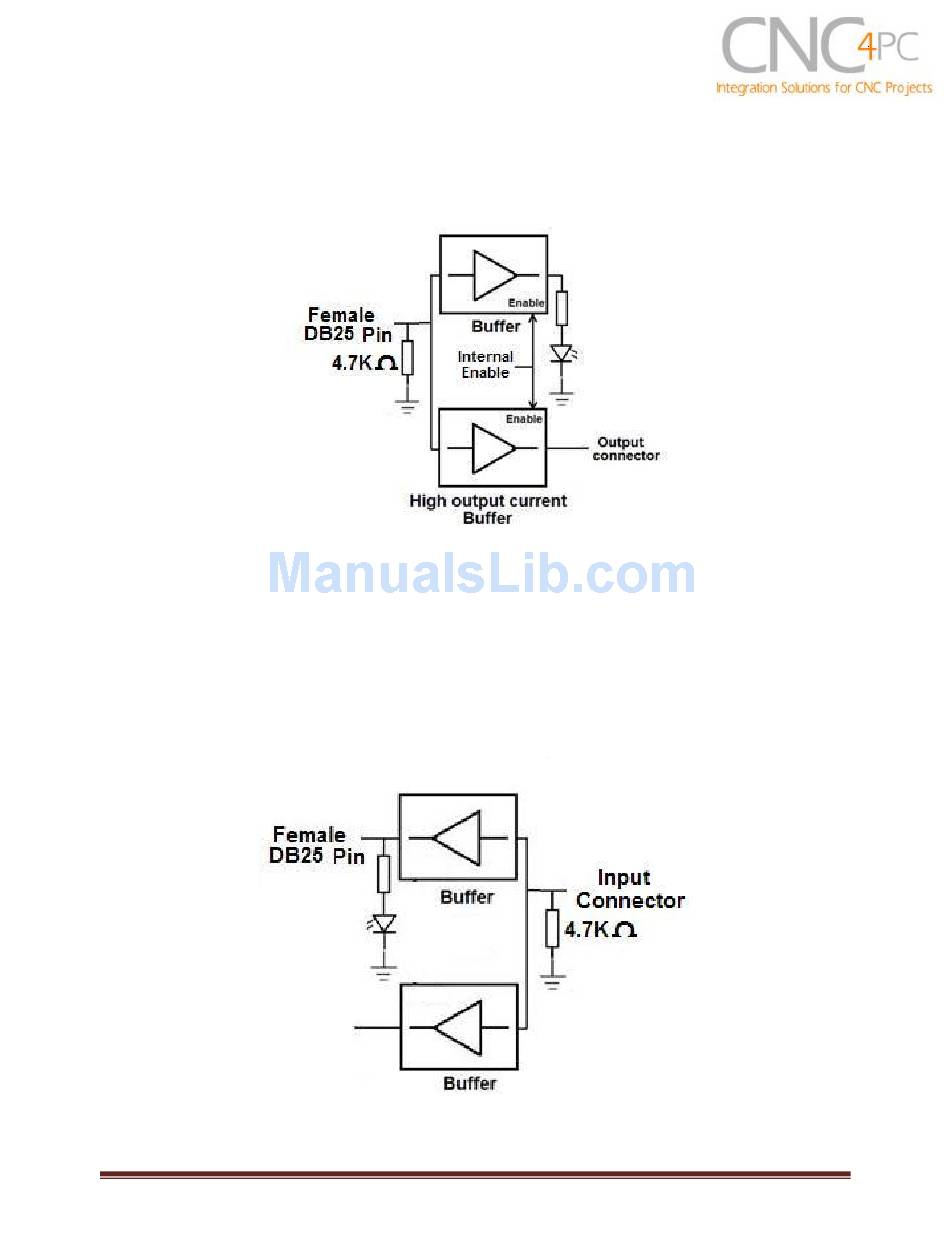

4.1 Digital outputs simplified block diagram
Fig. 1 Simplified functional block diagram for the digital outputs.
Note: "Internal Enable" = "External Enable Pin" AND ("SCHP" OR "Bypassed SCHP")
The "Internal Enable" is the result of an AND Operation between the "External Enable
Pin"and the SCHP operation mode selected by the user.
4.2 Inputs simplified block diagram
Fig. 2 Simplified functional block diagram for the inputs.
